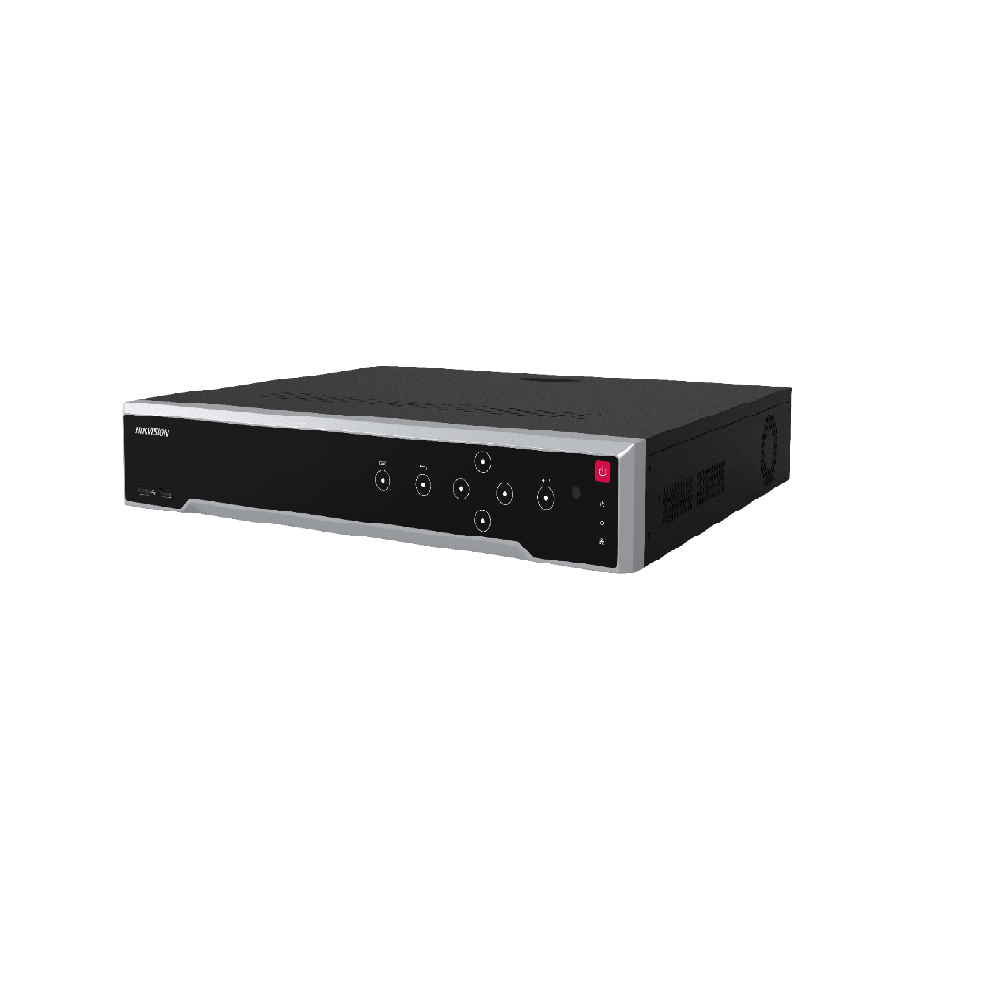

DS-7716/7732NI-I4/16P(B)
Embedded Plug & Play 4K NVR
Connectable to the third-party network cameras
H.265+ compression effectively reduces the storage space by up to 75%
Full channel recording at up to 12MP resolution
HDMI and VGA independent outputs provided
HDMI Video output at up to 4K (3840 × 2160) resolution
Up to 4 SATA interfaces connectable for HDD connection
Hik-Connect for easy network management
Model |
|
DS-7716NI-I4/16P(B) |
DS-7732NI-I4/16P(B) |
Video/Audio input |
IP video input |
16-ch |
32-ch |
Up to 12 MP resolution |
|||
Two-way audio |
1-ch, RCA (2.0 Vp-p, 1 k Ω) |
||
Network |
Incoming bandwidth |
160 Mbps |
256 Mbps |
Outgoing bandwidth |
256 Mbps |
||
Remote connection |
128 |
||
Video/Audio output |
Recording resolution |
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF /DCIF/ 2CIF/CIF/QCIF |
|
CVBS output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
||
HDMI1 output resolution |
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K(2560×1440)/60Hz,1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
||
resolution |
2K(2560×1440)/60Hz,1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,HDMI1/VGA Simultaneous Output |
||
resolution |
1920×1080/60Hz,1280×1024/60Hz,1280×720/60Hz,1024×768/60Hz |
||
Audio output |
1-ch, RCA (Linear, 1 KΩ) |
||
Decoding |
Decoding format |
H.265/H.265+/H.264/H.264+/MPEG4 |
|
Live view / Playback resolution |
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF /DCIF/ 2CIF/CIF/QCIF |
||
Synchronous playback |
16-ch |
16-ch |
|
Capability |
2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps) |
||
Network management |
Network protocols |
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
|
Hard disk |
SATA |
4 SATA interfaces for 4HDDs |
|
Capacity |
Up to 8TB capacity for each HDD |
||
1 eSATA interface |
|||
External interface |
Network interface |
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
Serial interface |
1 RS-485 (half-duplex), 1 RS-232 |
||
USB interface |
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
||
Alarm in/out |
16/4 |
||
POE Interface |
Interface |
16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
|
Power |
≤200W |
||
Supported standard |
IEEE 802.3 af/at |
||
General |
Power supply |
100 to 240 VAC |
|
Power |
≤300 W |
||
Consumption (without hard disk) |
≤20 W (without enabling PoE) |
||
Working temperature |
-10 to +55º C (+14 to +131º F) |
||
Working humidity |
10 to 90 % |
||
Chassis |
19-inch rack-mounted 1.5U chassis |
||
Dimensions (W × D × H) |
445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8") |
||
Weight(without hard disk) |
≤ 5 kg (11 lb) |
