Chi Tiết Sản Phẩm

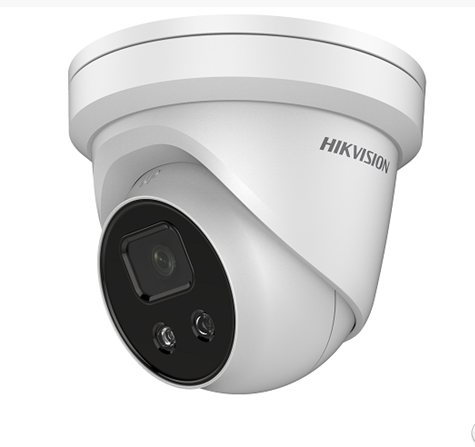

DS-2CD2326G1-I/SL

2 MP IR Fixed Turret Network Camera

Max. 1920 × 1080 @30fps
2.8 mm/4 mm/6 mm/8 mm fixed lens
H.265+, H.264+
120dB WDR
Powered by Darkfighter
False alarm reduction by human and vehicle target classification based on deep learning
12 VDC & PoE (802.3af, class 3)
Built-in micro SD/SDHC/SDXC slot, up to 128G
BLC/3D DNR/HLC/ROI
0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
Built-in speaker
Strobe Light & Audio Alarm
Indoor
Camera
Image Sensor: 1/2.8" Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter time: 1/3 s to 1/100,000 s
Slow shutter: Support
Lens: 2.8 mm, horizontal FOV: 108°, vertical FOV: 58°, diagonal FOV: 128°
4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 103°
6 mm, horizontal FOV: 52°, vertical FOV: 29°, diagonal FOV: 60°
8 mm, horizontal FOV: 41°, vertical FOV: 22°, diagonal FOV: 47°
Lens Mount: M12
Adjustment Range: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Focus: Fixed
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate: 32Kbps~16Mbps
Max. Image Resolution: 1920 x 1080
Frame Rate: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)
60Hz: 30fp s(1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)
Image Enhancement: BLC/3D DNR/HLC
Image Settings: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
BLC: Support
ROI: Support 1 fixed region for main stream and sub stream separately
Day/Night Switch: Day/Night/Auto/Schedule
Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function: One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
System Compatibility: ONVIF (Profile S, Profile G),ISAPI
Interface
Audio: Built-in speaker, max sound pressure level: 96dB
Communication Interface: 1 RJ45 10M / 100M Ethernet interface
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Smart Feature-set
Behavior Analysis: Line crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm reduction by human and vehicle target classification based on deep learning When H265+, three streams or motion detection is enabled, the behavior analyses (including line crossing detection, intrusion detection, region entrance detection and region exiting detection) are not supported.
Line Crossing Detection: Cross a pre-defined virtual line
Intrusion Detection: Enter and loiter in a pre-defined virtual region
Region Entrance: Enter a pre-defined virtual region from the outside place
Region Exiting: Exit from a pre-defined virtual region
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, 5.5 mm coaxial power plug ,PoE (802.3af, class 3)
Power Consumption: 12 VDC, 0.5 A, max. 6 W
PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 7.5 W


IR Range: Up to 30m
Dimensions: Camera: Φ 138.3 × 126.3 mm (Φ 5.4" × 5")
With package: 170 × 170 × 150 mm (7" × 7" × 5.9")
Weight: Camera: 430 g (0.9 lb.)
With package: 733 g (1.6 lb.)
