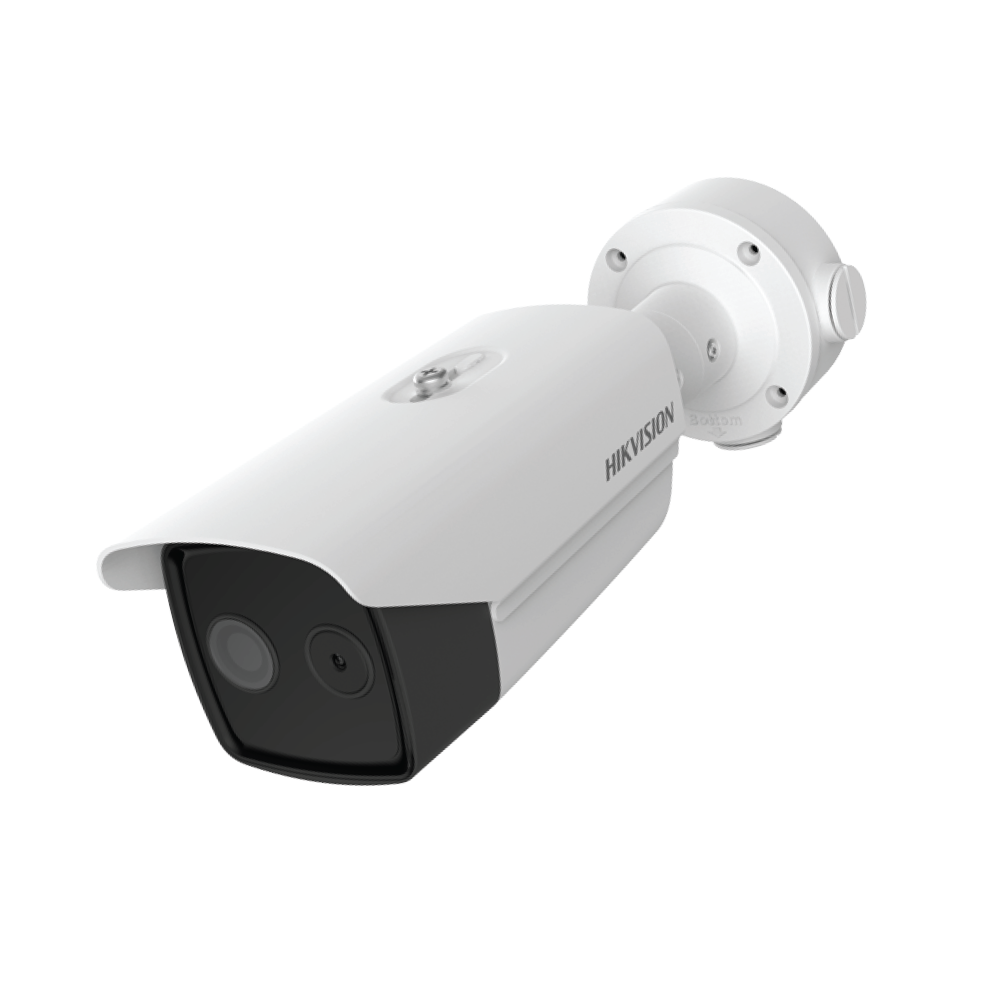

DS-2TD2617B-3/PA

Thermographic Bullet Body Temperature Measurement Camera

● 160 × 120 resolution in thermal channel, high sensitivity sensor.
● Point, line and area for temperature measurement
● Temperature range: 30°C to 45°C; temperature accuracy: ±0.5 °C
● Reliable temperature exception alarm function
● 3D DNR, image detail enhancement
● Strobe light and audio alarm



Thermal Module

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Max. Resolution

160 × 120 (the resolution of output image is 320 × 240)

Pixel Interval

17μm

Response Waveband

8 μm to 14 μm

NETD (Noise Equivalent

Temperature Difference)



≤ 40 mk (@25 °C,F# = 1.1)

Lens (Focal Length)

3.1 mm

IFOV

5.48 mrad

Field of View

50° × 37.2° (H × V)

Min. Focusing Distance

0.2 m

Aperture

F 1.1

Optical Module

Max. Image Resolution

2688 × 1520

Image Sensor

1/2.7" Progressive Scan CMOS

Min. Illumination

Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)

Shutter Speed

1 s to 1/100,000 s

Lens (Focal Length)

4 mm

Field of View

84° × 44.8° (H × V)

WDR

120 dB

Day & Night

IR cut filter with auto switch

Image Function

Bi-spectrum Image Fusion

Fusion view of thermal view and overlaid details of the optical channel



Picture in Picture

Combines details of thermal and optical image PIP, overlay thermal image on optical image

Smart Function



VCA (Video Content Analysis)

4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8

VCA rules in total.



Temperature Measurement

3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).

Temperature Range

30°C to +45 °C

Temperature Accuracy

± 0.5 °C

Fire Detection

Dynamic fire point detection, up to 10 fire points detectable.

Infrared

IR Distance

Up to 40 m

IR Intensity and Angle

Automatically adjusted

Network





Main Stream

Visible Light: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720) Visible Light: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720) Thermal: 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240



Sub-stream

Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144) Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120) Thermal: 704 × 576, 352 × 288, 320 × 240

Video Compression

H.265/H.264/MJPEG

Audio Compression

G.711u/G.711a/G.722.1/MP2L2/G.726/PCM



Protocols

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Simultaneous Live View

Up to 20

User/Host Level

Up to 32 users, 3 levels: Administrator, Operator, User



Security Measures

User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

Integration

Alarm Input

2-ch inputs (0-5 VDC)

Alarm Output

2-ch relay outputs, alarm response actions configurable



Alarm Action

SD recording/relay output/smart capture/FTP upload/email linkage/audio alarm/white light alarm



Audio Input

1, 3.5 mm Mic in/Line in interface. Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ

± 10%

Audio Output

Linear level, impedance: 600 Ω

Reset

1, Reset Button

Communication Interface

1, RJ45 10M/100M self-adaptive Ethernet interface. 1, RS-485 interface

SD Memory Card

Built-in micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128 GB) Supports manual/alarm recording

Analog Video Output

1.0 V [p-p]/75 Ω, PAL/NTSC

Application Programming

Open-ended API, support ISAPI, HIKVISION SDK and third-party management platform

Client

iVMS-4200, Hik-Connect

Web Browser

IE9+, Chrome 31-44, Firefox 30-51, Safari 5.02+(mac)



General







Menu language

32 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)



Power

12 VDC ± 20%, two-core terminal block

PoE (802.3af, class 3)



Power Consumption

12 VDC ± 20%: 0.65 A, max. 7.5 W

PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8 W

Working Temperature/Humidity

Temperature: -20 °C to 50 °C Humidity: 95% or less



Protection Level

IP66 Standard

TVS 6000V lightning protection, surge protection, voltage transient protection

Dimensions

358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.53")

Weight

Approx. 1.76 kg (3.88 lb)
