Chi Tiết Sản Phẩm

CS-SP206-C0-68WFBS

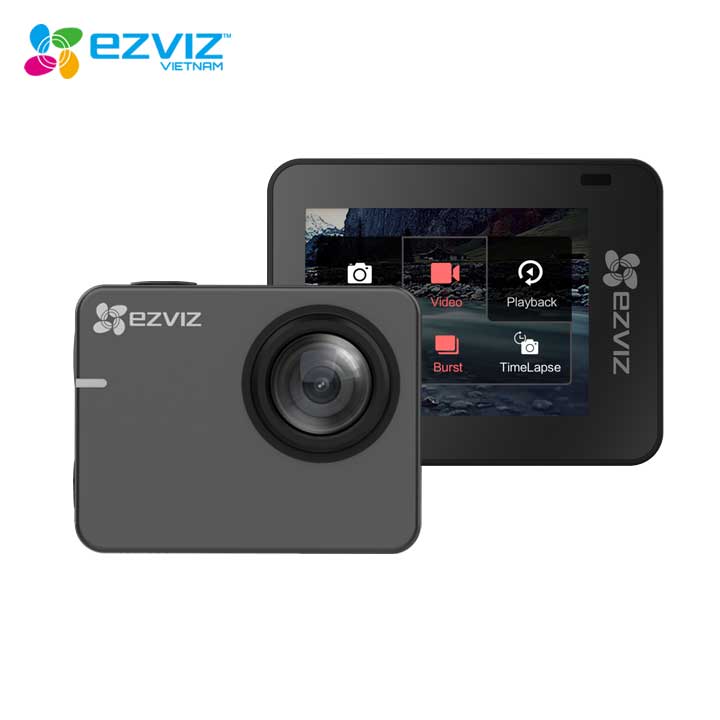

Camera hành trình S3

Camera hành trình 4K
Độ phân giải: 4K/24fps, 1080P/50fps, 720P/120fps
Màn hình cảm ứng IPS LCD
Góc quan sát rộng 150° với thuật toán hiệu chỉnh cong ảnh
Chụp ảnh 8MP
Hỗ trợ chụp ảnh liên tục 15 hình/s
Hỗ trợ thẻ nhớ microSD lên đến 256GB
Tự động điều chỉnh tốc độ khung hình để đảm bảo ánh sáng
Hỗ trợ Micro và loa ngoài
Hỗ trợ cổng HDMI
Hỗ trợ kết nối ứng dụng EZVIZ mobile app qua Bluetooth 4.0, Wifi
Hỗ trợ HDR

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

4K Action Camera

Specifications

Model Parameters
Model	CS-SP206-C0-68WFBS
Video
Video Format	Resolution: 4k, NTSC (fps):24, PAL (fps): 24; 4K：The resolution of recorded mp4 file is 28802160, and it is interpolated to 38402160 during playback. Resolution: 2.7k, NTSC (fps):30, PAL (fps): 25; Resolution: 1080p, NTSC (fps):30/60, PAL (fps): 25/50; Resolution: 720p, NTSC (fps):30/60/120, PAL (fps): 25/50/120; H.264 BP/MP/HP Level 5.1 With MP4 Muxer File Format
Record Mode	Video
Low Light	Auto Adjust Frame Rate for enough exposure time purpose
Distortion Correct	Better X/Y Correct，720p-1080p
HiLight Tag	High Light Important Time,used for Post processing
Split Mode	Set the length of video clip，3min，5min，MAX
Protune	White Balance、ISO、Sharpness、Ev Comp、Color Pattern
Slow Motion	Record 120fps and output slow motion video at 30fps
Loop Mode	To set up the storage mode according to the time interval set
Single Photo
Photo Size	8MP Wide
Night	2s; 5s; 10s; 15s; 20s
Distortion Correct	Better X/Y Correct
Meter Mode	Center、Average、Spot
Protune	White Balance、ISO、Sharpness、Ev Comp、Color Pattern
Burst
Image Size	8MP Wide
Burst Rate	15 pictures per second; 10 pictures per second; 5 pictures per second (default); 3 pictures per second
Distortion Correct	Better X/Y Correct
Meter Mode	Center、Average、Spot
Protune	White Balance、ISO、Sharpness、Ev Comp、Color Pattern
Time-lapse
Shutter Mode	Time-lapse Photo、Timelapse Video
Photo Size	8MP Wide
Video Resolution	4K、2.7K、1080P、720P
Shutter Interval	Photo：1s, 3s, 5s, 10s, 30s, 60s, 120s, 300s; Video：0.5s, 1s, 1.5s, 2s, 2.5s, 3s, 5s ;
Meter Mode	Center、Average、Spot
Night	2s; 5s; 10s; 15s; 20s
Distortion Correct	Better X/Y Correct
Protune	White Balance、ISO、Sharpness、Ev Comp、Color Pattern
Setup
View	Up、Down、AUTO
Default Mode	Video、Single、Burst、Timelapse
Vout Mode	Switching HDMI HD output and AV analog output
LED	Set it on or off
OSD	Turn on screen display on or off
Quickly Capture	Camera will Fastest speed boot and start shutter (2s内)
Auto Off	Set Auto Power Off Time
Date And Time	Set Date And Time
Mic Gain	Set The Gain of Mic
Speaker Gain	Set The Gain of Speaker
Camera Reset	Reset Camera to default Settings
Wireless
BLE 4.0	Embedded bluetooth4.0
Wi-Fi	802.11b/g/n, Mobile App Support
App&Remote	Select connect Mode with Mobile App Or Wi-Fi Remoter
SSID	Support SSID Modify with Mobile App
KEY	Support KEY Modify with Mobile App
RESET	Reset SSID and KEY to system default
Display
HDMI	Playback/Record UI
AV	AV output Use USB Interface
Embedded LCD	320x240 (2 inch) LCD Touch Panel with IPS
General
Platform	NT96160
Memory	DDR3、SPI Flash
Lens	150° Ultra-wide angle of view with less distortion
Sensor	HDR Support
Battery Type	Embedded
Battery Life	2 hours on 4K/24fps mode (Varies with different video mode)
Audio	48kHz (sampling); Advanced AGC (automatic gain control); Built-in single microphone; Single track
Interface	Micro USB2.0; Micro HDMI; MicroSD
Storage
Standard	Class 10 or up to UHS-1 level Micro SD storage card
Capacity (Auto-Negotiation SDIO Clk From 24MHZ to 120MHZ)	8GB; 16GB; 32GB; 64GB; 128GB; 256GB
Recording Time	Varies with different resolution and frame rate
Photo & Video Preview & Playback Setup
App for Mobile Device	For iOS and Android system
Function	Live view, playback, recording, configuration, video file editing, and one-touch share to social media are supported.
Playback	Decode Photo and Video Files in SD Card and Display it via LCD or HDTV
