TS-2H2T43D5

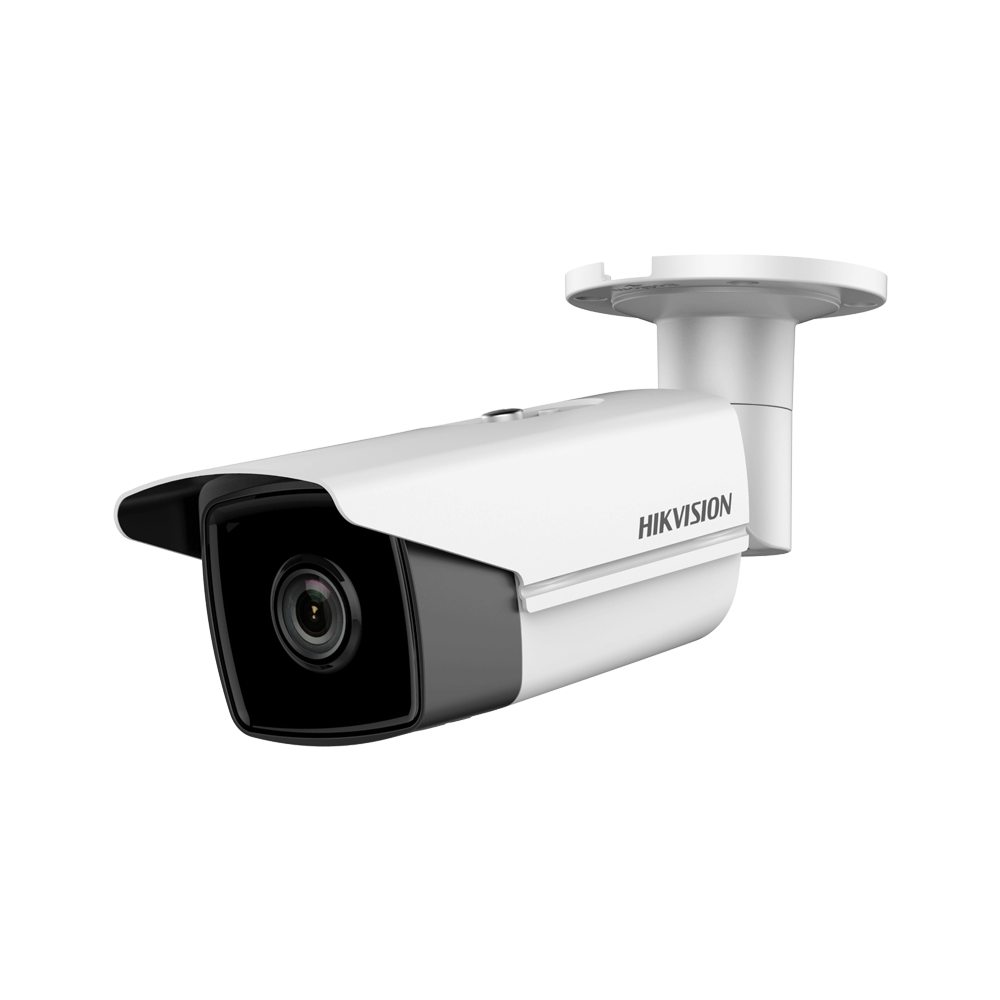

4 MP IR Fixed Bullet Network Camera

• 1/3" Progressive Scan CMOS
• 2688 ×1520@30fps
• 2.8/4/6/8mm fixed lens
• Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
• H.265+, H.265, H.264+, H.264
• Three streams
• 120dB WDR
• 2 Behavior analyses, and face detection
• BLC/3D DNR/ROI
• IR 80m
• IP67
• Built-in micro SD/SDHC/SDXC card slot, up to 128 GB
• 3-Axis adjustment

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor:		1/3" Progressive Scan CMOS
Signal System:		PAL/NTSC
Min. Illumination:		Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter time:		1/3 s to 1/100,000 s
Slow shutter:		Support
Lens:		2.8 mm @ F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123° 4 mm @F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99° 6 mm @F1.6: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58° 8 mm @F1.6: horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45°
Lens Mount:		M12
Adjustment Range:		Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Day& Night:		IR cut filter with auto switch
Wide Dynamic Range:		120 dB
Digital noise reduction:		3D DNR
Focus:		Fixed

Compression Standard
Video Compression:		H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:		256Kbps~16Mbps
Triple Streams:		Yes

Max. Image Resolution:		2688 × 1520
Frame Rate:		50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
Sub Stream:		50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream:		50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement:		BLC/3D DNR/BLC
Image Settings:		Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping:		No
ROI:		1 fixed region for main stream and sub-stream
Day/Night Switch:		Day/Night/Auto/Schedule

Network
Network Storage:		Support micro SD/SDHC/SDXC card (128G), flash memory , ANR
Alarm Trigger:		Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:		TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function:		One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility:		ONVIF (Profile S, Profile G),ISAPI

Interface
Communication Interface:		1 RJ45 10M / 100M Ethernet interface
On-board storage:		Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:		Yes

Smart Feature-set
Behavior Analysis:		Line crossing detection, intrusion detection
Line Crossing Detection:		Cross a pre-defined virtual line
Intrusion Detection:		Enter and loiter in a pre-defined virtual region
Recognition:		Face Detection

General
Operating Conditions:		-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply:		12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:		-D5:12 VDC, 0.6A, max. 7.5W PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 9.5W -D8:12 VDC, 0.95A, max. 11.5W PoE (802.3af, 37V to 57V), 0.35A to 0.1A, max. 12.5W
Weather Proof:		IP67
IR Range:		D5 up to 50 m / D8 up to 80 m
Dimensions:		Camera: Φ 105 × 299.7 mm (Φ 4.1" × 11.8") Package: 386 × 156 × 155 mm (15.2" × 6.14" × 6.1")
Weight:		Camera: Approx. 1180 g (2.6 lb.) With Package: Approx. 1700 g (3.7 lb.)
