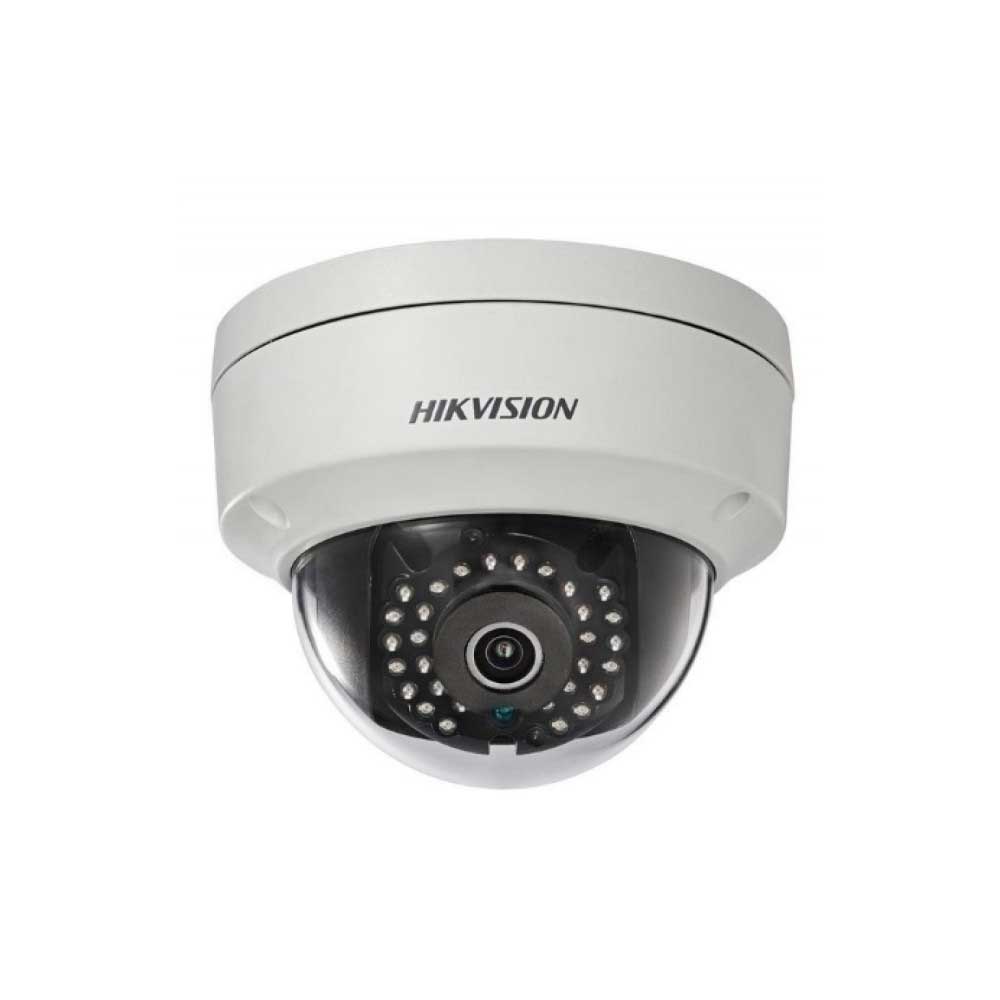

DS-2CD2142FWD-I(W)(S)

4MP WDR Fixed Dome Network Camera

l Up to 4 megapixel high resolution
l Full HD1080p video
l Dual stream
l 2.8mm/4mm/6mm fixed lens
l 120dB Wide Dynamic Range
l 3D Digital Noise Reduction
l 3-axis adjustment
l DC12V & PoE
l Support H.264+
l Up to 30m IR range
l IP67 weather-proof protection
l IK10
l -S: Audio/Alarm IO
l -W: Built-in Wi-Fi

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor:		1/3" Progressive Scan CMOS
Min. Illumination:		0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
Shutter time:		1/3 s to 1/100,000 s
Lens:		2.8mm, 4mm, 6mm @ F2.0 angle of view: 106°(2.8mm), 83°(4mm), 55.4°(6mm)
Lens Mount:		M12
Adjustment Range:		Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355°
Day& Night:		IR cut filter with auto switch
Wide Dynamic Range:		120 dB
Digital noise reduction:		3D DNR

Compression Standard
Video Compression:		H.264/MJPEG/H.264+
H.264 code profile:		Main Profile
Video bit rate:		32Kbps~16Mbps
Dual Stream:		Yes

Max. Image Resolution:		2688 × 1520
Frame Rate:		50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720) 60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
Sub Stream:		50Hz: 25fps(352×288),25fps(640×360) 60Hz: 30fps(352×240),30fps(640×360)
Image Settings:		Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC:		Yes, zone configurable
ROI:		Support

Network
Network Storage:		NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger:		Face Detection,Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols:		TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function:		One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility:		ONVIF (Profile S, Profile G),ISAPI

Interface
Audio:		1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model)
Communication Interface:		1 RJ45 10M / 100M Ethernet interface
Alarm:		1x alarm I/O *only for –S models
On-board storage:		Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:		Yes

Wi-Fi Specification (-W)
Wireless Standards:		IEEE802.11b, 802.11g, 802.11n
Frequency Range:		2.4 GHz ~ 2.4835 GHz
Channel Bandwidth:		20/40MHz Support
Modulation Mode:		802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Security:		64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission Rate:		11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps
Wireless Range:		50m(depend on environment)

General
Operating Conditions:		-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply:		12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:		Max. 5W
Impact Protection:		IK10
Weather Proof:		IP67
IR Range:		Up to 30m
Dimensions:		Φ111 × 82 (4.4” × 3.2”)
Weight:		500g (1.1lbs)
