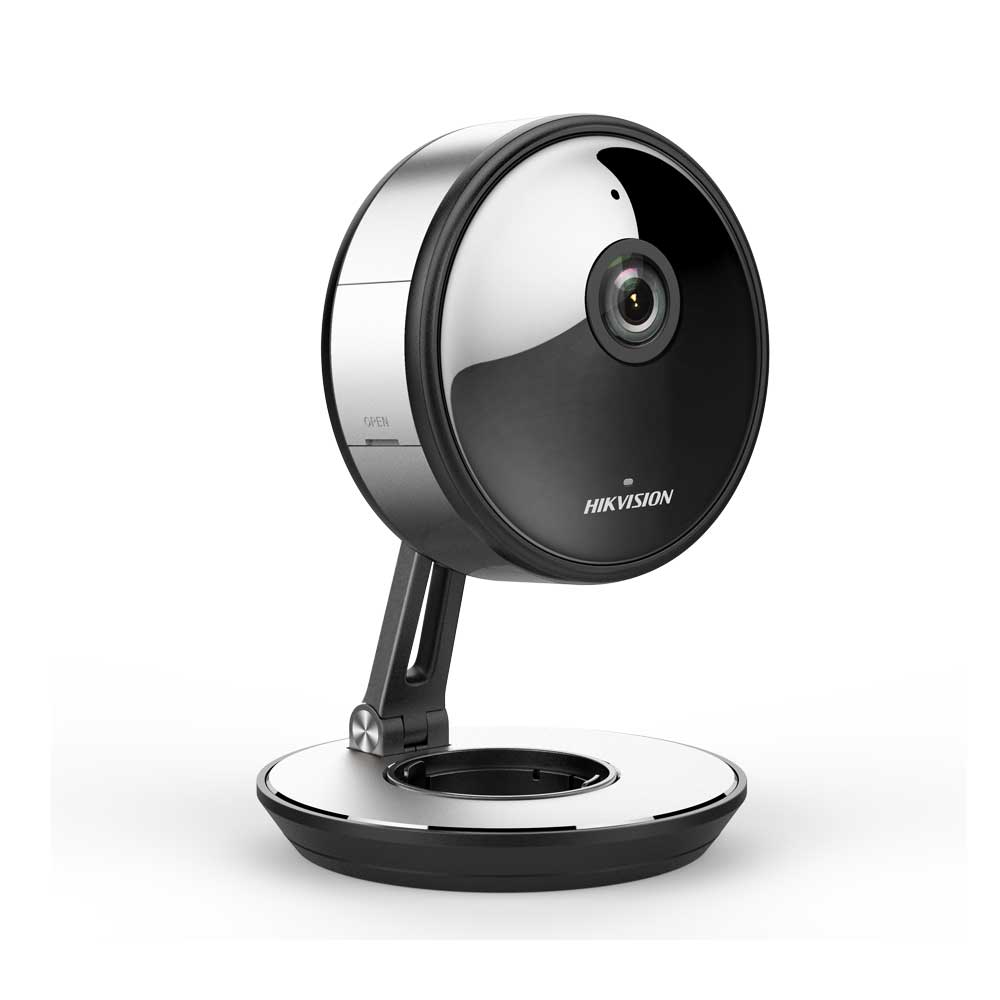

DS-2CV2U32FD-IW

Camera

Image Sensor

1/3" Progressive Scan CMOS

Min. Illumination

Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR,

Color: 0.028Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

120dB

3-Axis Adjustment

Pan: 0° to 360°, tilt: -75° to 65°, rotate: 0° to 360°

Lens

Focal length

1.68 mm

Aperture

F2.0

FOV

Horizontal field of view: 180°, Vertical field of view: 85°

Lens Mount

M12

IR

IR Range

10 m

Wavelength

850nm

Compression Standard

Video Compression

Main stream: H.265/H.264

Sub stream: H.265/H.264/MJPEG

H.264 Type

Main Profile/High Profile

H.264+

Yes

H.265 Type

Main Profile

H.265+

Yes

Video Bit Rate

32 Kbps to 8 Mbps

Audio Compression

G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM

Audio Bit Rate

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Smart Feature-set

Region of Interest

Support 1 fixed region for main stream and sub-stream separately


Max. Resolution

2304 × 1296

Main Stream

50Hz: 20fps (2304 × 1296), 25fps (1920 × 1080, 1280 × 720)

60Hz: 20fps (2304 × 1296), 30fps (1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25fps(640 × 360, 480 × 272, 432 × 240)

60Hz: 30fps(640 × 360, 480 × 272, 432 × 240)

Image Setting

Saturation, brightness, contrast, sharpness adjustable by client software or web browser

Image Enhancement

BLC/3D DNR

Day/Night Switch

Auto/Schedule

Network

Network Storage

Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, IGMP, QoS, IPv6

General Function

One-key reset, anti-flicker, dual streams, heartbeat, password protection, privacy mask, watermark

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users

3 levels: Administrator, Operator and User

Client

iVMS-4200, Hik-Connect, iVMS-5200

Interface

Audio

1 built-in mic, 1 built-in speaker, two-way audio, mono sound

On-board storage

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset

Yes

SVC

Support H.264 and H.265 encoding

Wi-Fi

Wireless Standards

IEEE 802.11b/g/n

Frequency Range

2.412 GHz to 2.4835 GHz

Channel Bandwidth

20M/40M

Protocols

802.11b: DQPSK, DBPSK, CCK
802.11g/n: OFDM/64-QAM, 16-QAM, QPSK, BPSK

Security

WPA, WPA2

Transfer Rates

11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps

Wireless Range

50 m

Audio

Environment Noise Filtering

Yes

Audio Sampling Rate

16 kHz, 32kHz, 44.1kHz, 48kHz

General

Operating Conditions

-10 °C to +40 °C (14°F to +104 °F), Humidity 95% or less (non-condensing)

Power Supply

5 VDC ± 10%, micro USB

Power Consumption and  Current

5 VDC, 1A, max. 6.5W

Interface Protection

TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection

Material

Bracket: metal

Camera shell: plastic

Dimensions

Φ78.1 mm × 110.2 mm (Φ3.07" × 4.34")

Weight

Camera: Approx. 230 g (0.51 lb.)
