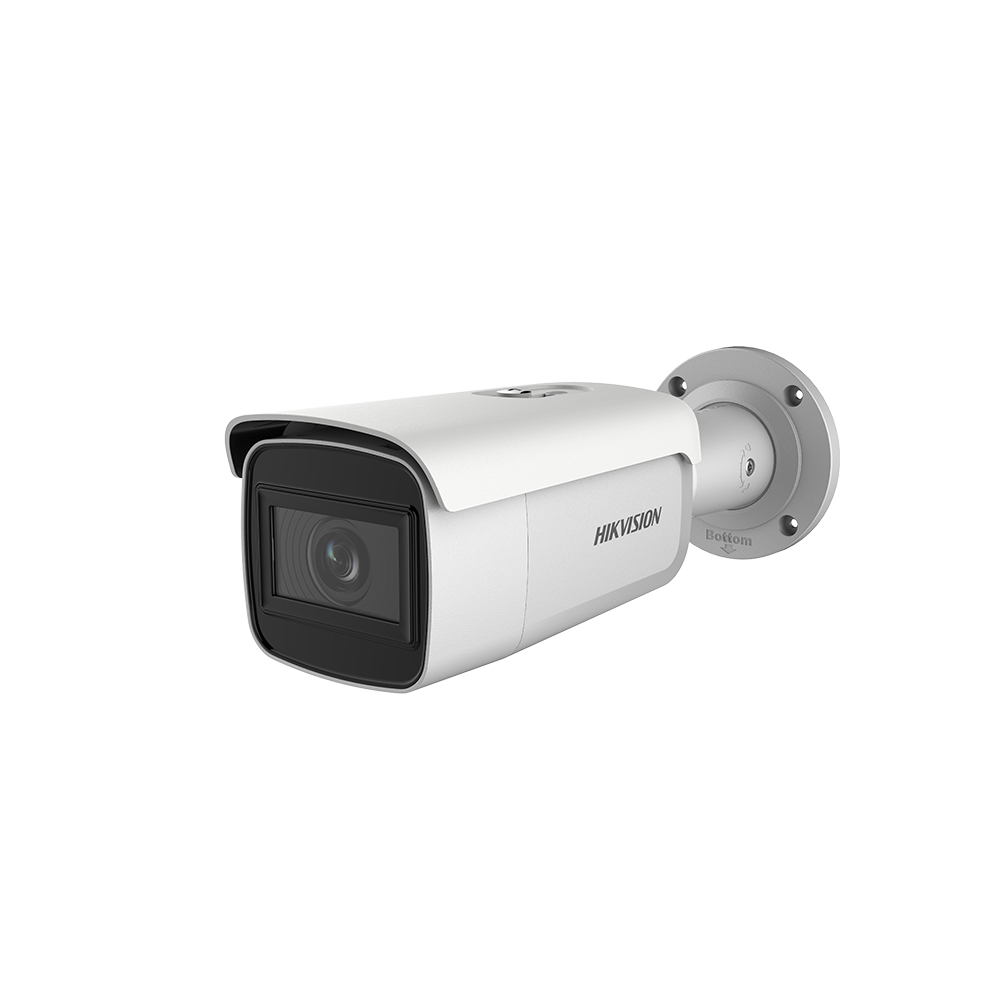

DS-2CD2683NLG1-IZ

4K Outdoor WDR Motorized Varifocal Bullet Network Camera

High quality imaging with 8 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
-S: audio and alarm interface available
Water and dust resistant (IP67)
Motorized varifocal lens for easy installation and monitoring
Robust structure design with full metal materials

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor1/2.5" Progressive Scan CMOS
Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120dB
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 355°

Lens
FocusAuto
Lens Type2.8 to 12 mm，Motorized
FOVHorizontal field of view: 105° to 34.5°,Vertical field of view: 55° to 19°,Diagonal field of view: 125° to 40°
ApertureF1.6
Lens MountΦ14
Aperture TypeFixed

Illuminator
IR RangeUp to 50 m
Wavelength850nm

Video
Max. Resolution3840 × 2160
Main Stream50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Scalable Video Coding (SVC)H.264 and H.265 encoding support

Audio
Environment Noise FilteringYes
Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHz/48kHz
Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Network
Simultaneous Live ViewUp to 6 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
User/HostUp to 32 users,3 levels: Administrator, Operator and User
Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
Target CroppingNo
DNR3D DNR
Image EnhancementBLC/3D DNR/HLC
Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface
Audio1 input (line in), 1 output (line out), mono sound, terminal block
Alarm1 input;1 output (max. 12 VDC, 30 mA), terminal block
Video Output1Vp-p composite output (75 Ω) (For adjustment only)
On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event
Face DetectionYes

General
General FunctionOne-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Startup And Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3at, class 4)
Power Consumption And Current12 VDC, 1.2A, max. 14.5W,PoE (802.3at, 42.5V to 57V), 0.5A to 0.3A, max. 18W
Camera DimensionΦ 105.1 × 297.5 mm (Φ 4.1" × 11.7")
Camera WeightCamera: Approx. 1335 g (2.9 lb.),With Package: 2004g (4.4lb.)
