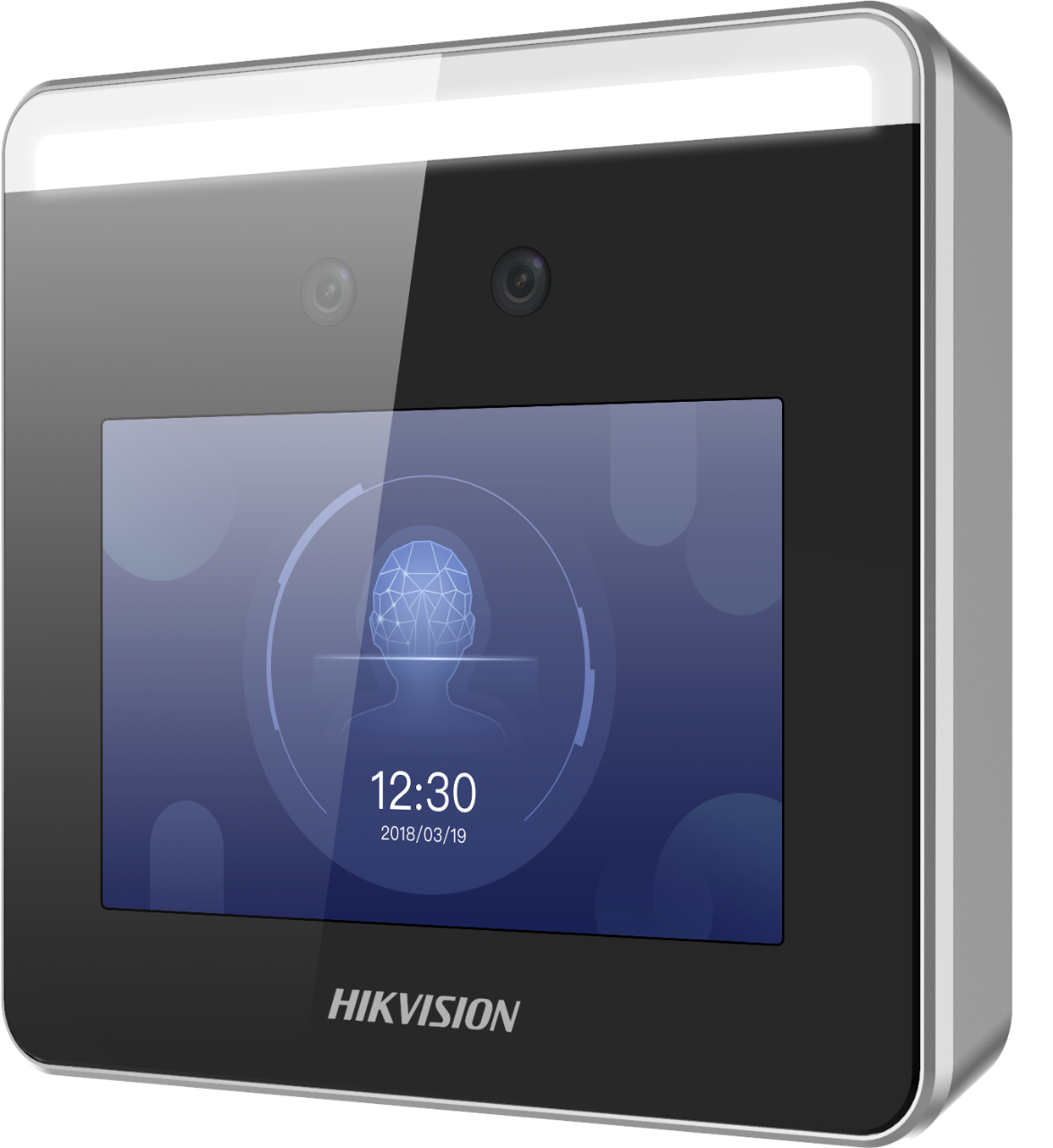

DS-K1T331
Value Series Face Access Terminal
3.97-inch touch screen, 2 Mega pixel wide-angle lens
2 MP wide-ange dual-lens
Face anti-spoofing
Face recognition distance: 0.3 m to 1.5 m
Deep learning algorithm
300 face capacity, 1,500 card capacity (when connecting external card reader); 150,000 event capacity, and up to 20,000
Face recognition duration < 0.2 s/User; face recognition accuracy rate ≥ 99%
Capture linkage and captured pictures storage
Transmits card and user data from or to the client software via TCP/IP protocol and saves the data on the client software
Imports pictures from the USB flash drive to the device or export pictures, events, from the device to the USB flash drive
Stand-alone operation
Manage, search and set device data after logging in the device locally
Connects to one external card reader via RS-485 protocol
Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
Supports multiple languages: English, Spanish, Arabic, Thai, Indonesian, Russian, and Vietnamese
Supports EHome 5.0 (ISUP 5.0), and ISAPI protocol
Configuration via web browser
2 MP wide-ange dual-lens
Face anti-spoofing
Face recognition distance: 0.3 m to 1.5 m
Deep learning algorithm
300 face capacity, 1,500 card capacity (when connecting external card reader); 150,000 event capacity, and up to 20,000
Face recognition duration < 0.2 s/User; face recognition accuracy rate ≥ 99%
Capture linkage and captured pictures storage
Transmits card and user data from or to the client software via TCP/IP protocol and saves the data on the client software
Imports pictures from the USB flash drive to the device or export pictures, events, from the device to the USB flash drive
Stand-alone operation
Manage, search and set device data after logging in the device locally
Connects to one external card reader via RS-485 protocol
Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
Supports multiple languages: English, Spanish, Arabic, Thai, Indonesian, Russian, and Vietnamese
Supports EHome 5.0 (ISUP 5.0), and ISAPI protocol
Configuration via web browser
- System Parameters
- Operation SystemLinux
- Camera2 MP dual-lens camera with wide dynamic range
- CapacityCard: 1500 (When connecting external card reader) Face: 300 Event: 150,000
- 1:N Face Recognition Duration< 0.2 s
- LCD Screen
- LCD Screen3.97-inch touch screen
- General
- Face Recognition Distance0.3 m to 1.5 m
- InterfaceUSB × 1, electric lock × 1, door contact × 1, tamper × 1, exit button × 1, RS-485 × 1
- Communication ModeFor DS-K1T331: TCP/IP (10/100 Mbps, self-adaptive) For DS-K1T331W: TCP/IP (10/100 Mbps, self-adaptive), Wi-Fi
- Power Supply12 V, 1.5 A, 18 W
- Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity10 to 90% (no condensing)
- Dimension120 mm × 110 mm × 23 mm (4.7" × 4.3" × 0.9")
- Application SituationIndoor use
