iDS-2PT9122IX-D/S

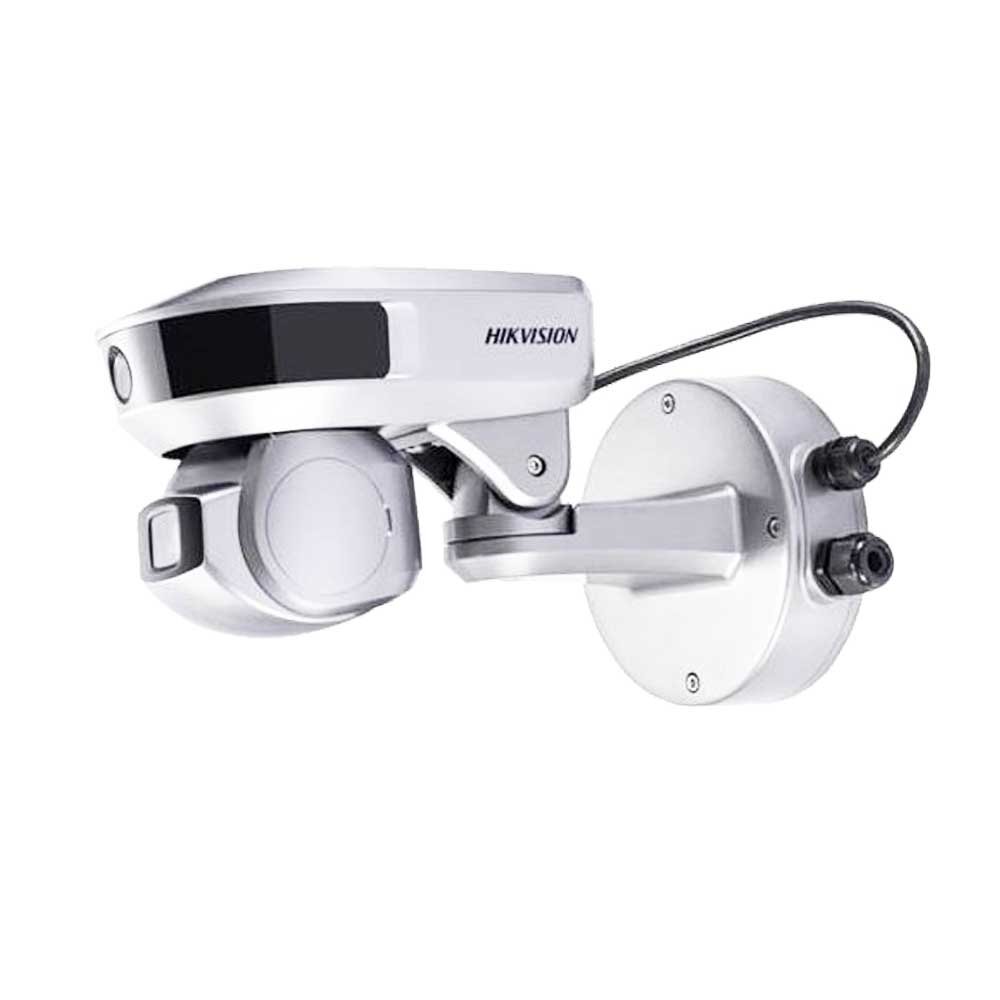

PanoVu PT Series 2MP + 2MP Target Capture Camera

Distant View Camera
1/2.7" progressive scan CMOS
Up to 1920 × 1080 resolution
Horizontal field of view: 92°
Min. illumination: Color: 0.001 Lux@(F1.2, AGC ON), B/W: 0.0005 Lux@(F1.2, AGC ON)

Tracking PTZ Camera
1/2.7" progressive scan CMOS
Up to 1920 × 1080 resolution
Horizontal field of view: 61.3° to 6.26°
Pan and tilt range: 210° (Pan), -22° o 22° (Tilt)
Min. illumination: Color: 0.002 Lux@(F1.6, AGC ON), B/W: 0.0002 Lux@(F1.6, AGC ON), 0 Lux with IR
10× Optical Zoom, 16× Digital Zoom

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

General
Weight:		Approx. 2.5 kg (5.51 lb)
Protection Level:		IP66 Standard, TVS 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
Power Supply:		12 VDC & Hi-PoE
Working Temperature:		Outdoor: -40°C to 70°C (-40°F to 158°F)
Power Consumption:		45 W Max. (IR 6 W Max.)
Working Humidity:		≤ 90%
Dimension:		Φ195.1 mm × 280.8 mm (Φ7.68" × 11.06")

Network
API:		Open-ended, support ONVIF, PSIA and CGI, support HIKVISION SDK and Third-Party Management Platform
Protocols:		IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour

Tracking PTZ Camera
Elevation Angle :		-15° to 90°
Smart Image Enhancement:		WDR, Defog, HLC, EIS, Smart IR, BLC
IR:		IR distance: 100 m; IR brightness and angle are adjustable.
Horizontal FOV:		61.3° to 6.26° (Wide-Tele)
Preset Number:		300
3D DNR:		Support
Focal Length:		5 mm to 50 mm, 10× optical zoom
S/N Ratio:		>55 dB
Pan and Tilt Range:		Pan: 210°, Tilt: -22° to 22°
Video Compression:		H.265/H.264/MJPEG
Pan and Tilt Speed:		Pan Manual Speed: 0.1°/s to 200°/s (Configurable), Pan Preset Speed: 300°/s Tilt Manual Speed: 0.1°/s to 120°/s (Configurable), Tilt Preset Speed: 120°/s
Main Stream Resolution:		50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Zoom Speed:		Approx.2.7 s (Optical Wide-Tele)
Aperture Range:		F1.6 to F3.0
Min. Illumination:		Color: 0.002 Lux@(F1.6, AGC ON), B/W: 0.0002 Lux@(F1.6, AGC ON), 0 Lux with IR
Image Sensor:		1/2.7" Progressive Scan CMOS
Patrol:		8 patrols, up to 32 presets per patrol

System Integration
Alarm Input/ Output:		1-ch alarm input and 1-ch alarm output, support alarm linkage: Memory Card Recording/Aux Output/Notify Surveillance Center/Upload to FTP/Send Email
Memory Card:		Built-in memory card slot, support Micro SD/SDHC/SDXC (up to 128 GB)
Network Interface:		1 RJ45 10 M/100 M Ethernet Interface/Hi-PoE
Audio Input/ Output:		1-ch audio input and 1-ch audio output.

Camera Module
Tracking Mode:		Manual/Auto
One-touch Link:		Support
Multiple Targets Tracking:		Support
Tracking Time Settings:		Support
Smart Detection:		People and vehicle are recognized automatically.

Distant View Camera
Main Stream Resolution:		50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
S/N Ratio:		>52 dB
Image Sensor:		1/2.7" Progressive Scan CMOS
Smart Image Enhancement:		WDR, Defog, HLC, EIS, BLC, HLC
3D DNR:		Support
Horizontal FOV:		92°
Smart Detection:		Audio Exception Detection, Motion Detection, Video Tampering Detection
Min. Illumination:		Color: 0.001 Lux@(F1.2, AGC ON), B/W: 0.0005 Lux@(F1.2, AGC ON)
Video Compression:		H.265/H.264/MJPEG
Lens:		F4.0 mm/ F1.2
