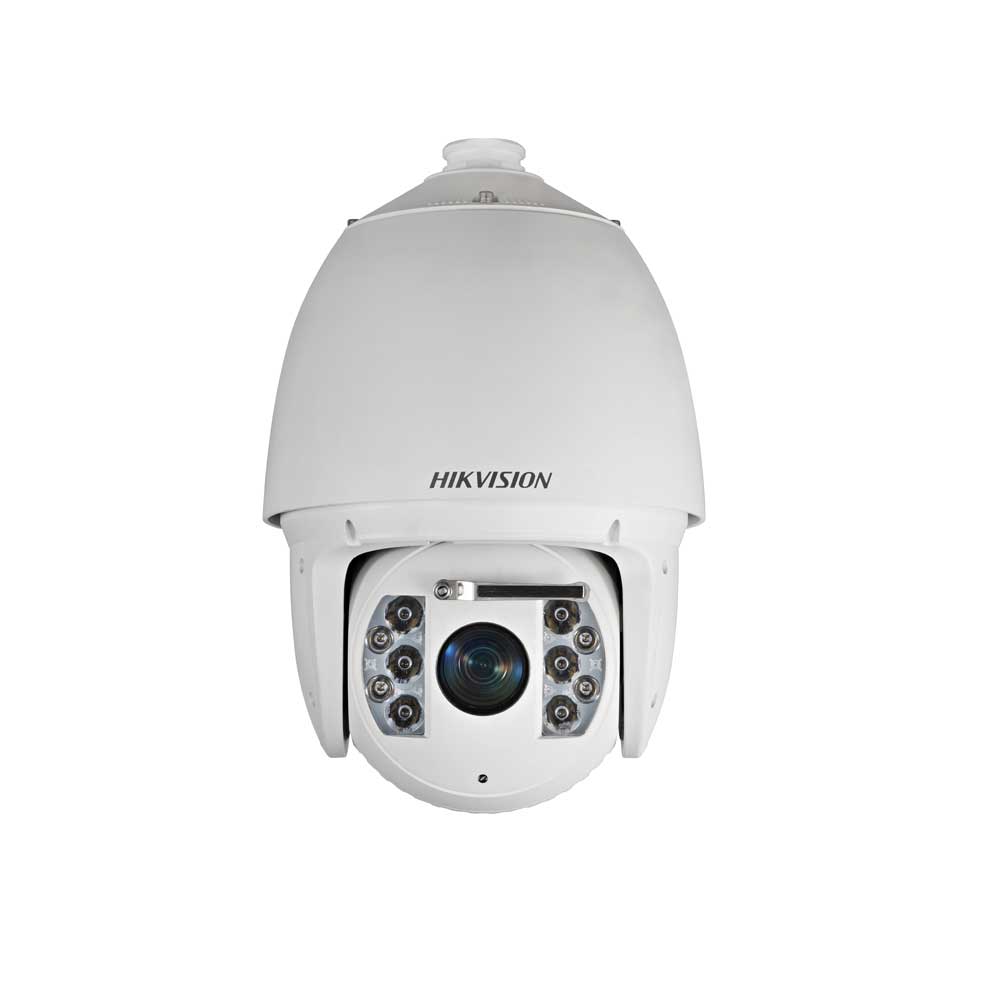

DS-2DF7225IX-AEL
2MP 25× Network IR Speed Dome
1/2.8" progressive scan CMOS
Up to 1920 × 1080 resolution
Min. Illumination:
Color: 0.002 Lux @(F1.2, AGC ON)
B/W: 0.0002 Lux @(F1.2, AGC ON)
0 Lux with IR
25× optical zoom, 16× digital zoom
120dB WDR, 3D DNR, HLC, Smart IR
24 VAC & Hi-PoE
Up to 150 m IR distance
Support H.265+/H.265 video compression
Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
Rapid focus
IP66
Up to 1920 × 1080 resolution
Min. Illumination:
Color: 0.002 Lux @(F1.2, AGC ON)
B/W: 0.0002 Lux @(F1.2, AGC ON)
0 Lux with IR
25× optical zoom, 16× digital zoom
120dB WDR, 3D DNR, HLC, Smart IR
24 VAC & Hi-PoE
Up to 150 m IR distance
Support H.265+/H.265 video compression
Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
Rapid focus
IP66
Camera | ||
---|---|---|
Image Sensor: | 1/2.8" Progressive Scan CMOS | |
Effective Pixels: | 1920(H)x1080(V) | |
Signal System: | PAL/NTSC | |
Minimum Illumination: | Color: 0.002 Lux @(F1.2, AGC ON) B/W: 0.0002 Lux @(F1.2, AGC ON) 0 Lux with IR |
|
White Balance: | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
AGC: | Auto/Manual | |
BLC: | ON/OFF | |
HLC: | Support | |
Smart defog: | Support | |
WDR: | 120dB | |
Shutter Time: | 50Hz: 1/1-1/30,000s 60Hz: 1/1-1/30,000s |
|
Day& Night: | ICR | |
Digital Zoom: | 16X | |
Privacy Masking: | 24 privacy masks programmable; optional multiple colors and mosaics | |
Auto Focus: | Auto / Semi-automatic / Manual | |
Rapid Focus: | Support |
Lens | ||
---|---|---|
Focal Length: | 4.5 mm to 112.5 mm, 25× Optical | |
Zoom Speed: | Approx. 3.7 s (optical lens, wide-tele) | |
Angle of View: | Horizontal field of view: 61.4° to 2.7° (wide-tele) Vertical field of view: 40.7° to 1.7° (wide-tele) Diagonal field of view: 70.0° to 3.2° (wide-tele) |
|
Minimum Working Distance: | 10-1500mm(Wide-Tele) | |
Aperture Range: | F1.6-F4.0 |
Pan & Tilt | ||
---|---|---|
Pan Range: | 360°endless | |
Pan Speed: | Pan Manual Speed: 0.1° -210°/s, Pan Preset Speed: 280°/s |
|
Tilt Range: | -10° ~ 90° (auto fl ip ) | |
Tilt Speed: | Tilt Manual Speed: 0.1°-150°/s, Tilt Preset Speed: 250°/s |
|
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
Number of Preset: | 300 | |
Patrol: | 8 patrols, up to 32 presets per patrol | |
Pattern: | 4 patterns, with the recording time not less than 10 minutes per pattern | |
Power-off Memory: | Support | |
Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan | |
PTZ Position Display: | ON/OFF | |
Smart-tracking: | Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger |
Infrared | ||
---|---|---|
IR irradiation distance: | 150m | |
IR irradiation angle: | Adjustable by zoom |
Alarm | ||
---|---|---|
Alarm Input: | 7 Inputs | |
Alarm Output: | 2 | |
Alarm Actions: | Preset, patrol, pattern, SD/SDHC card recording, relay output, notifi cation on client |
Input & Output | ||
---|---|---|
Monitor Output: | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC | |
Audio Input: | 1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10% |
|
Audio Output: | 1 Audio output interface Line level, impedance: 600Ω |
Network | ||
---|---|---|
Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector | |
Max.Image Resolution: | 1920×1080 | |
Main Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|
Sub Stream: | 50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144) 60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120) |
|
ROI encoding: | Support 24 areas with adjustable levels | |
Audio Compression: | G.711ulaw/G.711alaw/G.726/MP2L2/G.722 | |
No. of Simultaneous Users: | Up to 20 users | |
Three-Stream: | Support | |
Mini SD Card: | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB | |
Security Measures: | User authentication (ID and PW), Host authentication (MAC address) IP address filtering |
Client GUI | ||
---|---|---|
Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode | |
Date & Time Display: | Time: Week: Date, 6 formats on the Client | |
Client: | Support iVMS-4200 | |
Web Browser: | IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 + |
General | ||
---|---|---|
RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
Menu Language: | English | |
Power Supply: | 24 VAC & Hi-PoE | |
Power Consumption: | 24 VAC:Max. 60W High-PoE:Max. 50W |
|
Working Temperature/Humidity: | Outdoor: -40°C to 65°C (-40°F to 149°F) | |
Protection Level: | IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection | |
Mounting: | Various mounting modes optional | |
Dimensions: | Φ245×373.94mm (Φ9.65”×14.72”)(Outdoor) | |
Weight (approx.): | 6Kg (13.23 Ibs) | |
Mount Option: | Long-arm wall mount: DS-1602ZJ;Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box |
