DS-2CC52H1T-FITS

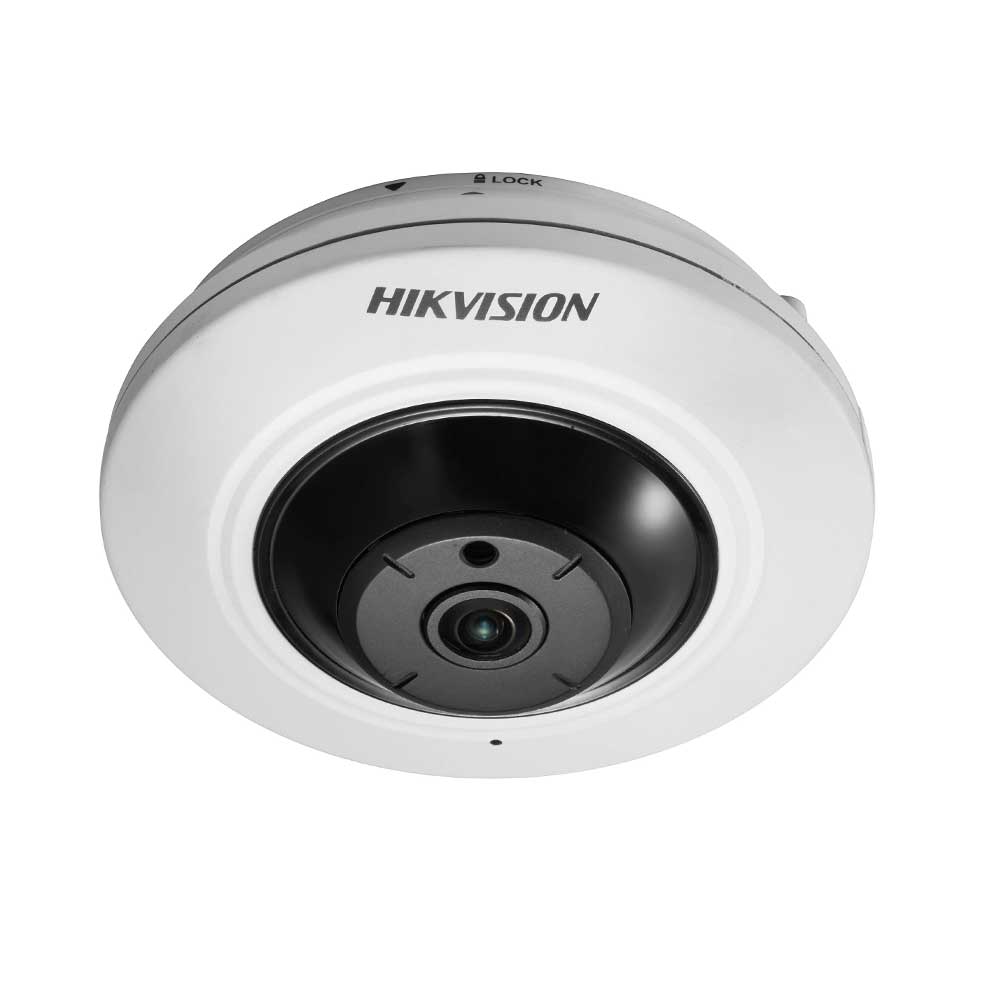

HD 5MP IR Fisheye Camera

• 5 Megapixel high-performance CMOS
• Analog HD output, up to 5MP resolution
• 0.01Lux @ (F1.2,AGC ON), 0 Lux with IR
• IR cut filter with auto switch
• OSD menu
• Built-in microphone, 1-ch audio output
• Up the Coax(HIKVISION-C)

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor:		5MP CMOS Image Sensor
Effective Pixels:		2592(H)*1944(V)
Min. Illumination:		Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time:		1/12.5s to 1/20,000s
Lens:		1.1mm
Lens Mount:		M12
Adjustment Range:		Pan: 0°-30°; Tilt: 0°; Rotate: 0°
Day& Night:		IR cut filter with auto switch
Video Frame Rate:		5Mega@12.5fps
HD Video Output:		1 Analog HD output
Synchronization:		Internal Synchronization

Menu
D/N Mode:		Auto / Color / B/W
Function:		Brightness, Contrast, Saturation

General
Operating Conditions:		-20 °C - 60 °C (-4 °F - 140 °F) Humidity 90% or less (non-condensing)
Power Supply:		12 VDC±15%
Power Consumption:		5.5W MAX
IR Range:		Up to 20m
Communication :		Up the coax Protocol: HIKVISION-C(Coaxitron)
Dimension:		Φ120.4mm×54.5mm (Φ4.74”×2.14”)
Weight:		Approx. 350g (0.77lb)
