Chi Tiết Sản Phẩm

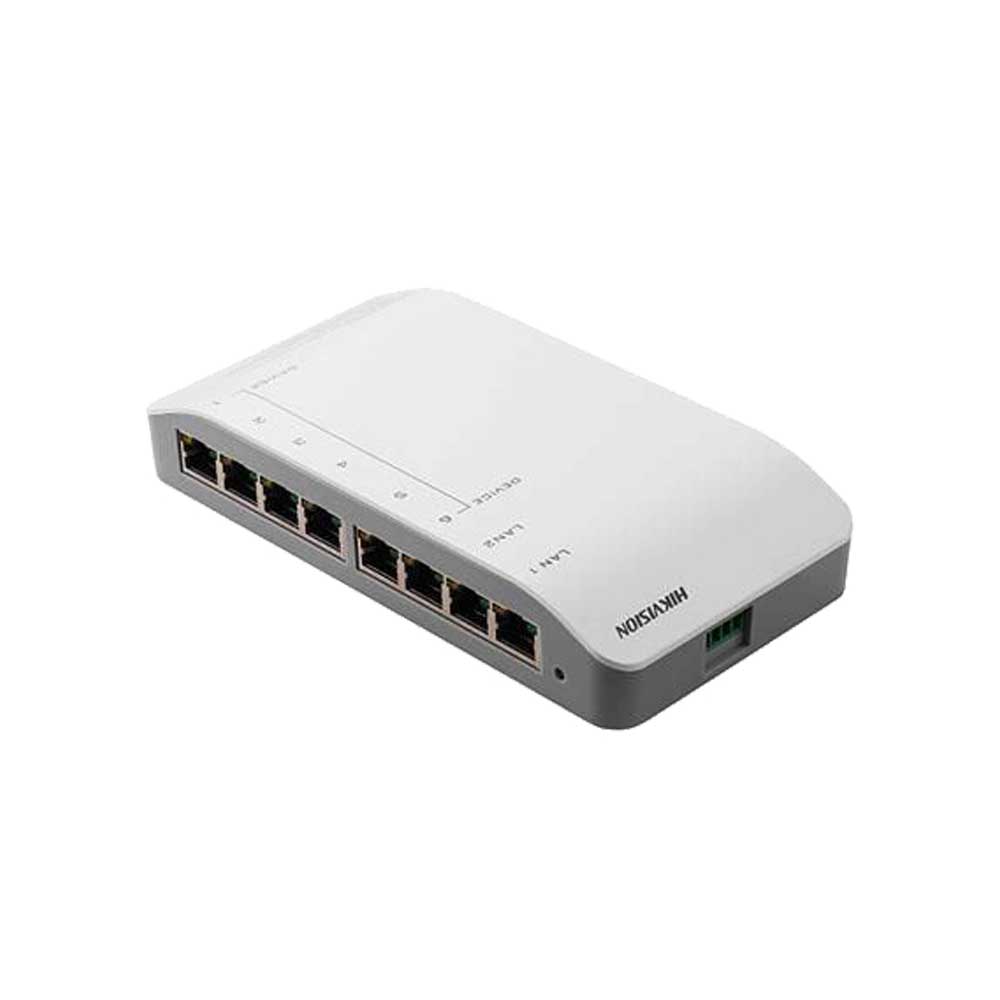

DS-KAD606-P
Video/Audio Distributor
8 RJ-45 interfaces, including 6 adaptive 10/100 Mbps LAN interfaces
supporting network cable powering and 2 adaptive 10/100 Mbps cascading LAN
interfaces
Up to 8 distributors can be cascaded
6 adaptive 10/100 Mbps LAN interfaces supports providing 24 VDC for video
intercom devices
IEEE802.3, IEEE802.3u, IEEE802.3x
Storing and forwarding function
supporting network cable powering and 2 adaptive 10/100 Mbps cascading LAN
interfaces
Up to 8 distributors can be cascaded
6 adaptive 10/100 Mbps LAN interfaces supports providing 24 VDC for video
intercom devices
IEEE802.3, IEEE802.3u, IEEE802.3x
Storing and forwarding function
Network Parameters | ||
---|---|---|
Interface number: | Eight 10/100 Mbps Interfaces | |
Interface type: | RJ-45, Full/Half-Duplex, MDI/MDI-X Self-Adaptive | |
Standard: | IEEE802.3, IEEE802.3u, IEEE802.3x | |
Processing type: | Storing and Forwarding | |
Flow control: | IEEE802.3x (Full-Duplex), Back Pressure (Half-Duplex) | |
Priority queue: | Four | |
Max. VLAN: | 64 | |
VLAN ID No.: | VID1 to VID4094 | |
MAC address list: | 8K | |
Internal buffer: | 1 Mbit |
General | ||
---|---|---|
Power Supply: | 24 VDC (24V DC Power Adapter included) | |
Power Consumption: | ≤8 W | |
Working Temperature: | -10° C to + 55° C (14° F to 131° F) | |
Working Humidity: | 10% to 90%, No Condensation | |
Dimensions(L × W × H): | 176 mm × 91 mm × 32 mm (69.3" × 35.8" × 12.6") |
