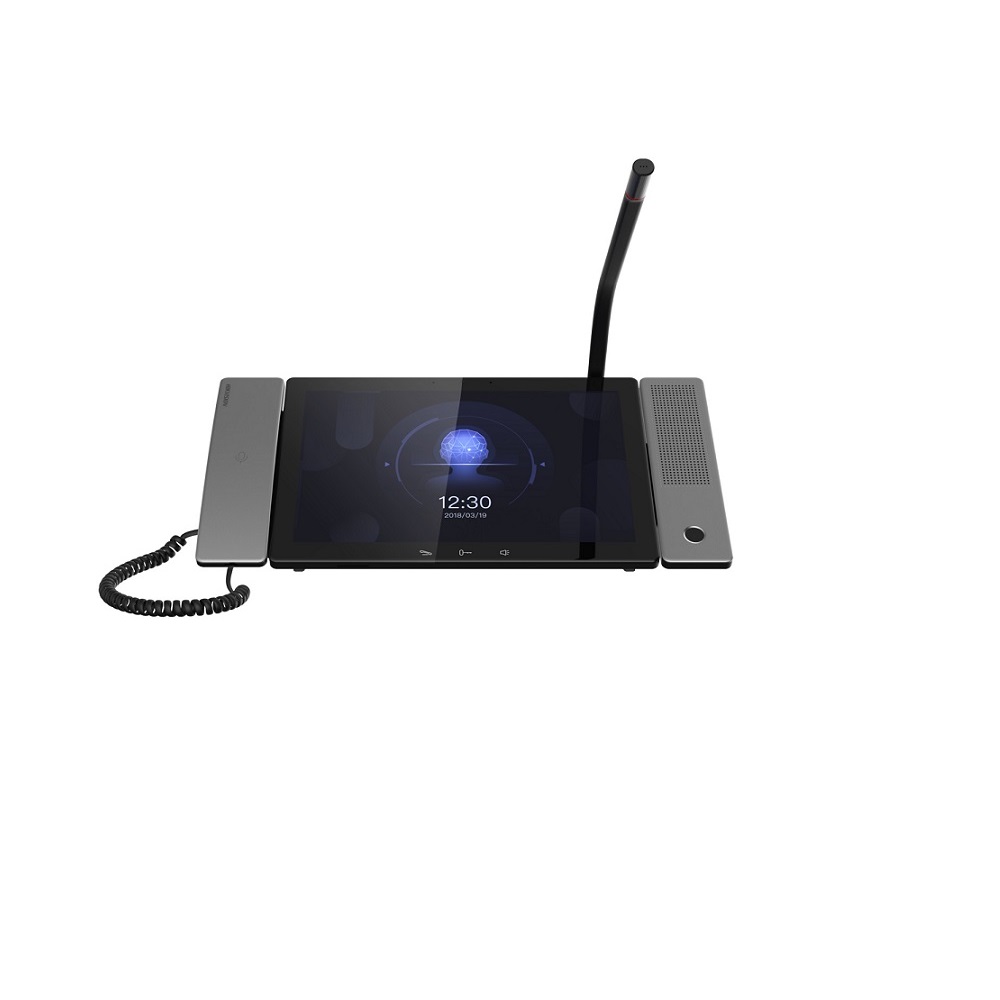

DS-KM9503

10 inch Touch Android IP Main Station

10.1-inch IPS touch screen with resolution: 1280 × 800
Up to 128 network cameras can be added to the device
Built-in SIP private server, up to 10000 video intercom devices can be added
Supports more than 2 speakers and microphones: Connects to external earphone (3.5mm), external goose neck microphone
Displays operation pages via HDMI
Power supply: standard PoE & 12 VDC
Video intercom and access control functions

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

System Parameters
Operating SystemAndroid 7.1
ROM8 GB
RAM2 GB
CPUEmbedded processor

Display Parameters
Screen Size10.1-inch
Operation MethodCapacitive touch screen
TypeIPS
Resolution1280 × 800

Video Parameters
Resolution2 MP
FOVHorizontal: 64.1°, Vertical: 48.1°, Diagonal: 80.2°
WDR/
Supplement Light/
Video Compression StandardH.264

Audio Parameters
Audio Compression StandardG.711U、G.711A
Audio InputBuilt-in omnidirectional microphone, external speaker, external goose neck microphone, external earphone (3.5 mm)
Audio OutputBuilt-in loudspeaker, external speaker, external voice box or earphone (3.5 mm)
Audio Compression Bitrate64 Kbps
Audio QualityNoise suppression and echo cancellation
Volume AdjustmentAdjustable via software

Capacity
Notice Capacity128
Linked Doorphone Capacity10000

Network Parameters
Communication ProtocolTCP/IP, SIP, RTSP
Wired Network2 10/100/1000 M self-adaptive Ethernet
Wi-Fi Standard/
3G/4G Standard/
Zigbee/

Device Interfaces
Alarm Input2
Network Interface2
TAMPER0
RS-4851
USB3
TF CardMax to 128 G
Lock Control2 Relay output

General
Button3 touch buttons
InstallationTable mounting & wall mounting
Indicator3
Without package: 1.285 kg

With package: 2.305 kg
Protective Level/
Working Humidity10% to 90%
Dimensions292 mm × 166 mm × 31 mm (11.5" × 6.5" × 1.2")
LanguageEnglish, French, Portuguese (Europe), Spanish (Europe), Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Lithuanian, Estonian, Latvian, Norwegian, Greek, Danish
Battery/
Power Supply
Standard PoE (LAN1)

12 VDC
Application EnvironmentIndoor
Power Consumption≤ 12 W
