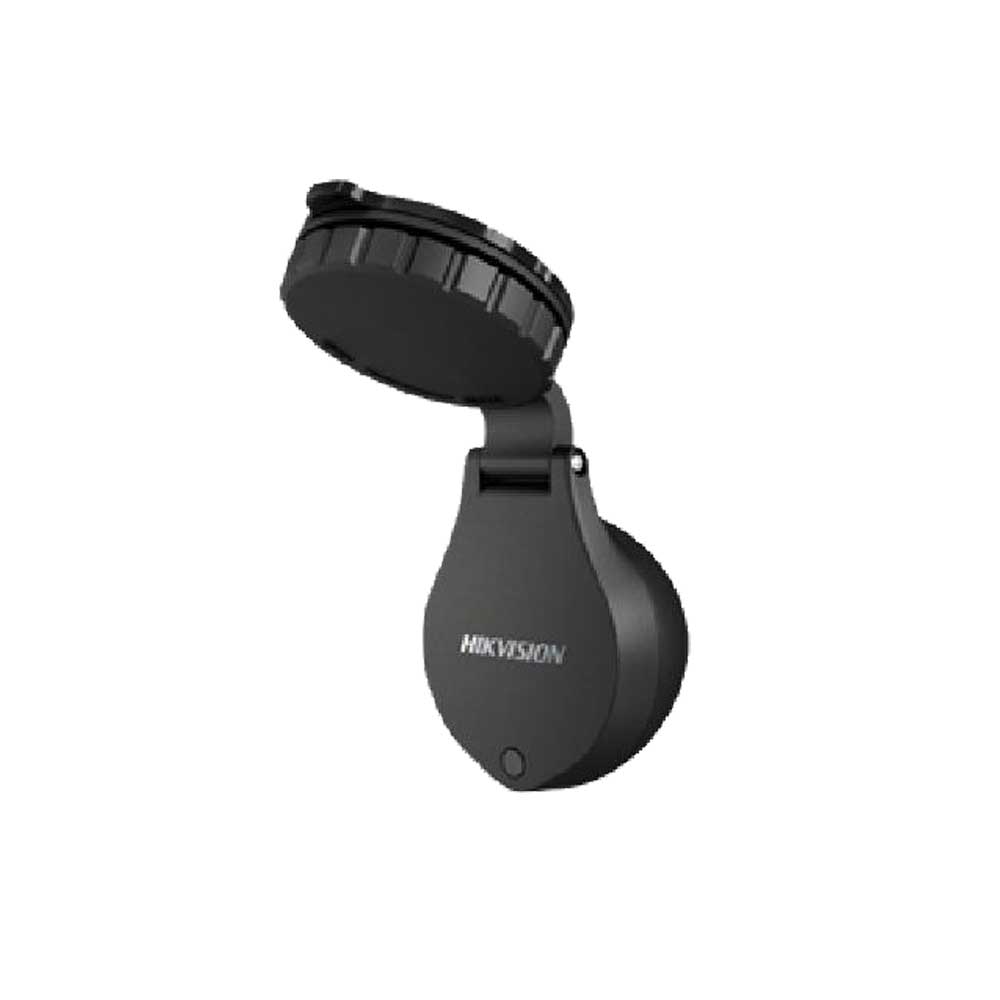

AE-VC152T-S

 0.1Lux @(F1.2,AGC ON)
 720P high definition
 Adopt wide-angle lens with wider monitoring coverage
 Support electronic shutter and AGC
 Patented universal regulating mechanism, easy to adjust
 Anti-vibration design and aviation port for mobile environments
 Suitable for mobile environments

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor:		1MP CMOS Image Sensor
Signal System:		PAL/NTSC
Effective Pixels:		1296(H)x732(V)
Min. Illumination:		0.1Lux @ (F1.2,AGC ON)
Shutter Time:		1/25(1/30) s to 1/50,000 s
Lens:		2.1mm,2.8mm optional
Lens Mount:		M12
Adjustment Range:		Pan: 0°; Tilt:0°; Rotation: 0°, Bracket Angle Adjustment Range: 0° to 180°
Day& Night:		Electronic
Video Frame Rate:		720p@25fps/720p@30fps
Synchronization:		Internal Synchronization
S/N Ratio:		More than 62 dB

Menu
AGC:		Support

Interface
Audio In:		Built-in Microphone
Audio Out:		1-ch, Aviation Port (Output Impedance: 1KΩ±10%)
Video Out:		1Vpp Composite Output

General
Operation Condition:		-30°C to 65°C (-22°F to 149°F), Humidity 90% or less (non-condensing)
Power Supply:		6VDC to 16VDC
Power Consumption:		MAX. 1.5W
Dimension:		59.9mm×75.8mm×54.5mm (2.36"×2.98"×2.15")
Weight:		Approx. 200g (0.44lb)
