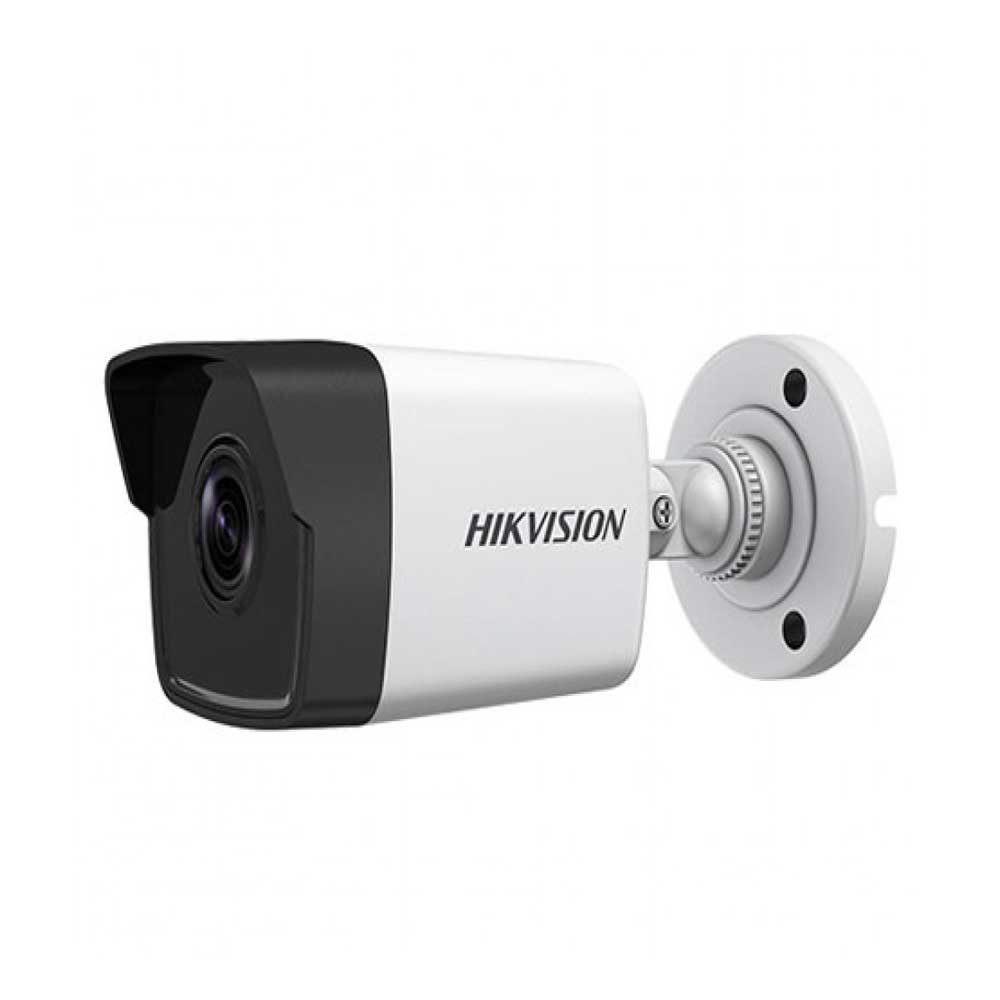

DS-2CD1021-I
2.0 MP CMOS IR Network Bullet Camera
Up to 2.0 megapixel
2.8 mm/4 mm/6 mm fixed focal lens
Up to 30 m IR range
Dual stream
Digital WDR (Wide Dynamic Range)
3D DNR (Digital Noise Reduction)
PoE (Power over Ethernet)
IP67
Mobile monitoring via Hik-Connect
Camera |
|
Image Sensor |
1/2.8" progressive scan CMOS |
Min. Illumination |
Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR |
Shutter Speed |
1/3 s to 1/100, 000 s, support slow shutter |
Lens |
2.8 mm @F2.0, horizontal field of view 105.8°, 4 mm @F2.2, horizontal field of view 83.6° 6 mm @F2.0, horizontal field of view 55° |
Lens Mount |
M12 |
Day &Night |
IR cut filter with auto switch |
3-Axis Adjustment (Bracket) |
Pan: 0° to 360°, tilt: -90° to 90°, rotation: 0° to 360° |
DNR (Digital Noise Reduction) |
3D DNR |
WDR (Wide Dynamic Range) |
Digital WDR |
Compression Standard |
|
Video Compression |
Main stream: H.264+/H.264 Sub stream: H.264/MJPEG |
H.264 Type |
Baseline profile/Main profile |
Video Bit Rate |
32 Kbps to 8 Mbps |
Image |
|
Max. Resolution |
1920 × 1080 |
Main Stream Max. Frame Rate |
50Hz: 25fps @(1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps @(1920 × 1080, 1280 × 960, 1280 × 720) |
Sub-stream Max. Frame Rate |
50Hz: 25fps @(704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps @(704 × 480, 640 × 480, 352 × 240, 320 × 240) |
Image Settings |
Brightness, saturation, contrast, sharpness are adjustable via web browser or client software |
Day/Night Switch |
Support auto, scheduled |
Others |
Mirror, BLC (area configurable), region of interest (support 1 fixed region) |
Network |
|
Network Storage |
NAS (NFS, SMB/CIFS) |
Detections |
Motion Detection |
Alarms |
Video tampering, network disconnected, IP address conflicted |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour |
Standard |
ONVIF (PROFILE S, PROFILE G), ISAPI |
General Function |
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
Interface |
|
Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
General |
|
Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing) |
Power Supply |
12 VDC ± 25%, PoE (802.3af) |
Power Consumption |
Max. 5 W/6.5 W (PoE) |
Ingress Protection |
IP67 |
IR Range |
Up to 30 m |
Dimensions |
69.1 mm × 66 mm × 172.7 mm ( 2.7" × 2.6" × 6.8") |
Weight |
500 g (1.1 lb.) |
