Chi Tiết Sản Phẩm

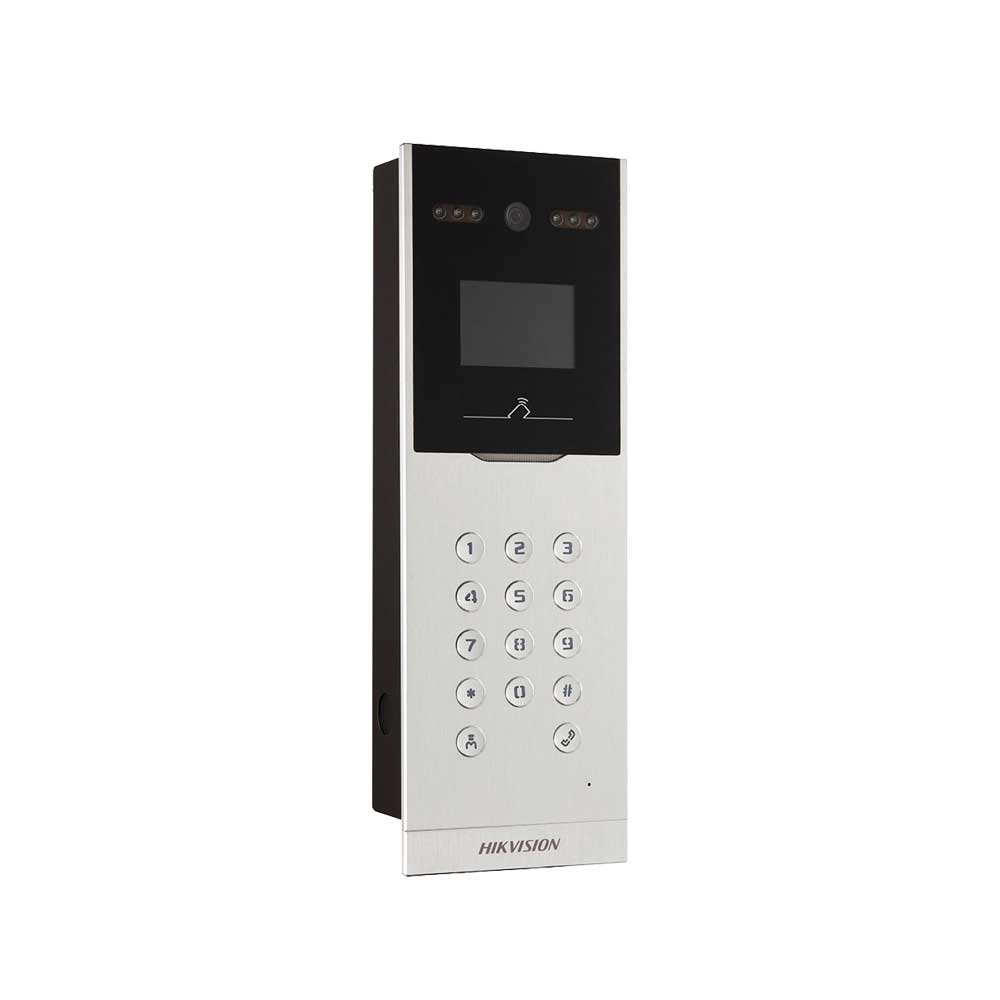

DS-KD8002-VM
Water Proof Metal Door Station
Video intercom function
Access control function
Issues cards via door station, up to Max. 2500 cards, via outer door station, up to 50000
Card readers supported
Self-adaptive visible light supplement
Access control function
Issues cards via door station, up to Max. 2500 cards, via outer door station, up to 50000
Card readers supported
Self-adaptive visible light supplement
System Parameters | ||
---|---|---|
Processor: | High-Performance Embedded SOC Processor | |
Operation System: | Embedded Linux Operation System |
Display Parameters | ||
---|---|---|
Display Screen: | 3.5-Inch Colorful TFT LCD | |
Display Resolution: | 480 × 320 | |
Operation Method: | Physical Keypad | |
Operation interface: | LCD Display, Easy Menu |
Video Parameters | ||
---|---|---|
Camera: | CMOS Low Illumination 1.3 MP HD Colorful Camera | |
Video Compression Standard: | H.264 | |
Resolution: | 1280 x 720 | |
Video frame rate: | PAL: 25 fps, NTSC: 30 fps |
Audio Parameters | ||
---|---|---|
Audio Input: | Built-in Omnidirectional Microphone | |
Audio Output: | Built-in Loudspeaker | |
Audio Compression Standard: | G.711 U | |
Audio Compression Rate: | 64 Kbps | |
Audio Quality: | Noise Suppression and Echo Cancellation |
Network Parameters | ||
---|---|---|
Ethernet: | 10/100/1000 Mbps Self-Adaptive Ethernet | |
Network Protocol: | TCP/IP, RTSP |
Access Control Parameters | ||
---|---|---|
Internal Card Reader: | Built-in IC Card Reader | |
External Card Reader: | Wiegand 26, Wiegand 34, or RS-485 IC Reader | |
Door Magnetic Detection: | Detects Door Magnetic Status |
Light Supplement | ||
---|---|---|
Light Supplement Mode: | Visible Light Supplement |
Alarm Parameters | ||
---|---|---|
Alarm Input: | Door Magnetic Alarm, Tampering Alarm |
Device Interfaces | ||
---|---|---|
Network Interface: | 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface | |
RS-485: | 1 RS-485 Half-Duplex Port | |
I/O Input: | 8 | |
I/O Output: | 4 | |
Wiegand: | 1 Wiegand Port for Accessing Wiegand IC Card Reader | |
USB : | 1 USB 2.0, Supporting U-Disk |
General | ||
---|---|---|
Material: | Aluminum Alloy | |
Power Supply: | 12 VDC | |
Power Consumption: | ≤15 W | |
Certification: | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE | |
Working Temperature: | -40° C to +60° C (-40° F to 140° F) | |
Working Humidity: | 10% to 90% | |
IP Protection Level: | IP65 | |
Dimensions(L × W × H): | 418 mm × 145 mm × 61 mm (16.5" × 5.7" × 2.4") |
