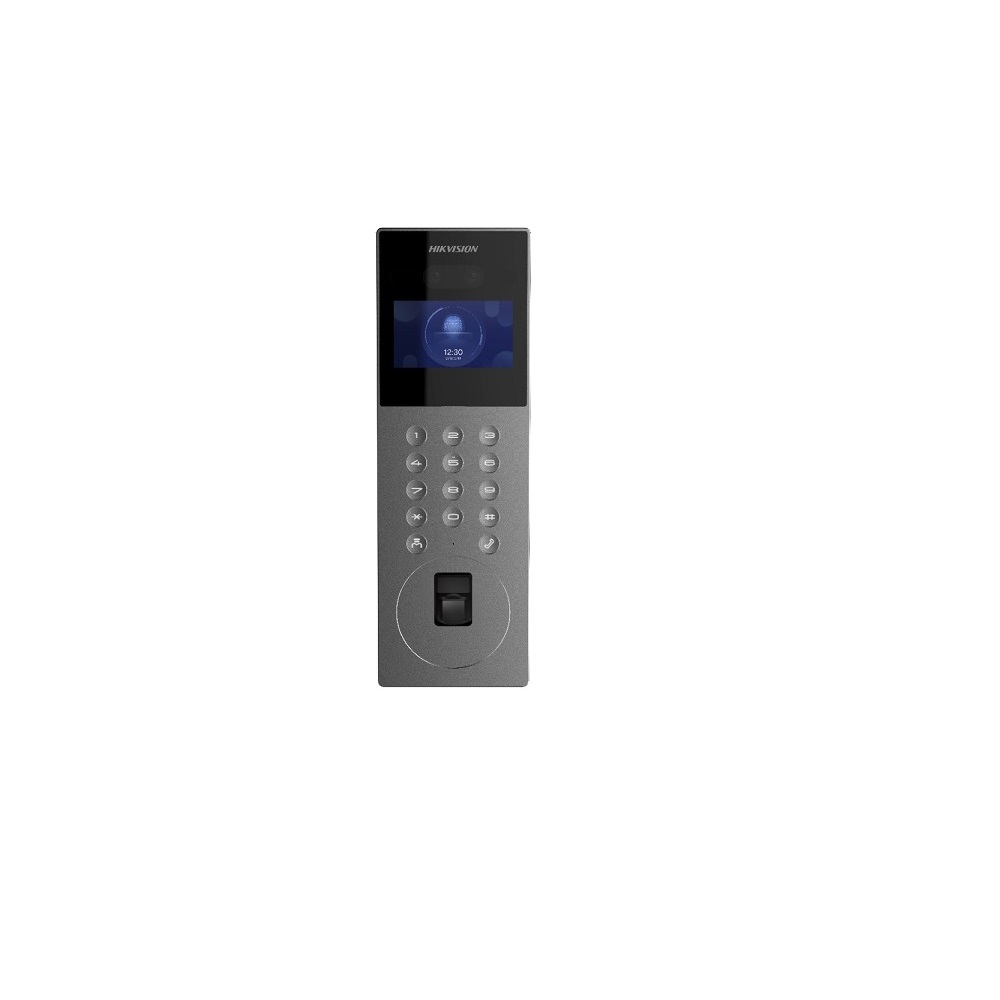

DS-KD9203-FE6

Facial Door Station

2 MP HD camera with high quality image
120 ° wide angle of view
Up to 5000 faces, 5000 fingerprints and 25000 cards can be added
Unlocks by fingerprints, cards and faces
Supports anti-spoofing
Supports cofiguration via Web remotely

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

System Parameters
Operating SystemEmbedded Linux operation system
ROM1 GB
RAM4 GB
CPUEmbedded MCU Processor

Display Parameters
Screen Size4.3-inch
Operation MethodPhysical button
TypeColorful LCD
Resolution800 × 480

Video Parameters
Lens2 × 2 MP HD camera
Resolution
Main stream: 1080p@30fps,720p@30fps

Sub stream: VGA@25fps, VGA@30fps
FOV/
WDRSupport
Supplement LightLow illumination, IR supplement lights
Video Compression StandardH.264

Audio Parameters
Audio Compression StandardG.711 U, G.711 A
Audio InputBuilt-in omnidirectional microphone
Audio OutputBuilt-in loudspeaker
Audio Compression Bitrate64 Kbps
Audio QualityNoise suppression and echo cancellation
Volume AdjustmentAdjustable

Capacity
User Capacity5000
Face Capacity5000
Card Capacity200
Linked Network Camera Capacity500

Network Parameters
Communication ProtocolTCP/IP, RTSP
Wired NetworkSupport
Wi-Fi Standard/
Bluetooth Version/
3G/4G Standard/

Device Interfaces
Alarm Input4
Network Interface1 10/100/1000 Mbps self-adaptive Ethernet
TAMPER1
Exit Button1
RS-4852
USB0
Wiegand/
TF Card/
Alarm Output/
Lock Control1
Door Contact Input1
Power Interface1

Performances
Multi-Factor Authentication10000

General
ButtonPhysical buttons
InstallationFlush mounting
Indicator/
Without package: 1.05 kg

With package: 2.166 kg
Protective LevelIP65
Working Temperature-30 °C to +60 °C (-22 °F to +140 °F)
Working Humidity10% to 90%
Dimensions373 mm × 124 mm × 43.7 mm (14.69" × 4.88" × 1.72")
Battery/
Power Supply12 VDC
Application EnvironmentOutdoor
Power Consumption≤ 13 W
LanguageEnglish, Traditional Chinese, Arabic, Portuguese (Brazil), Russian, Spanish, Turkish, Vietnamese
