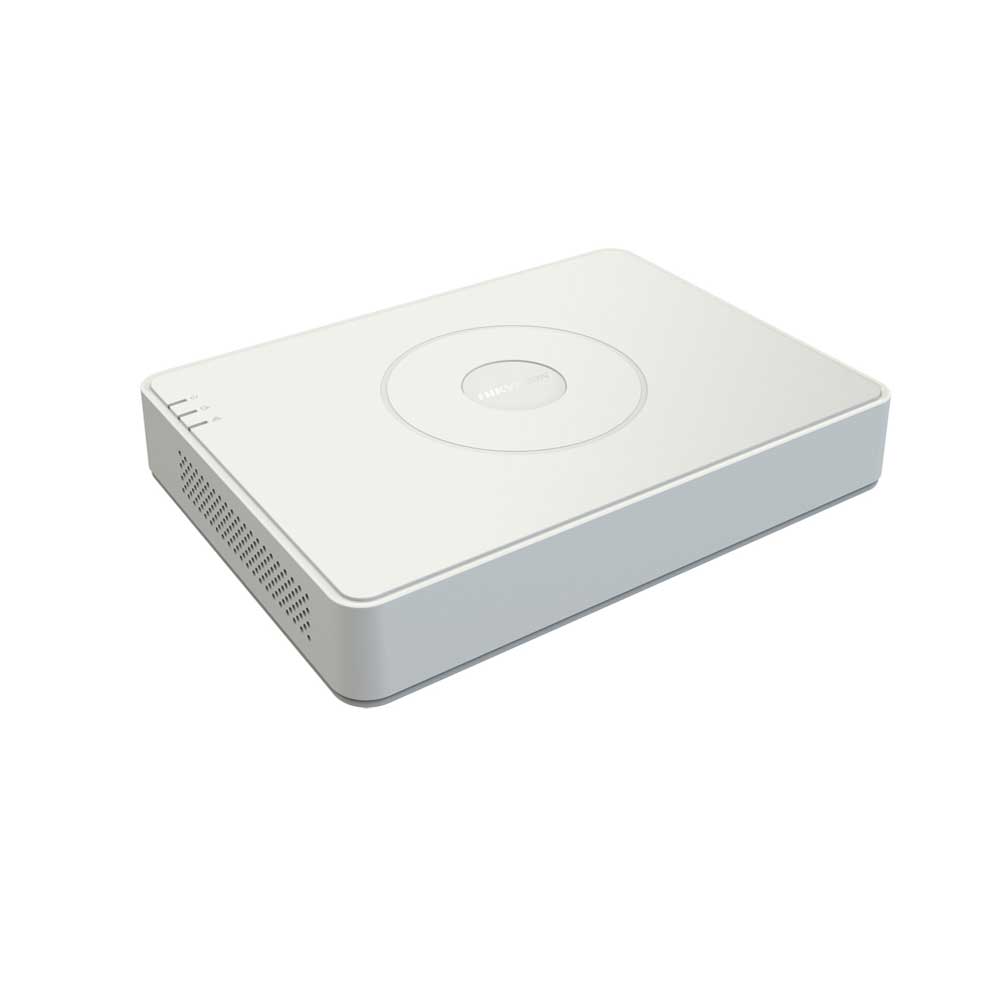

DS-7116HGHI -F1/N

TURBO HD DVR

 Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
 Long distance transmission over UTP and coaxial cable: max. 1200m for 720p Turbo HD signal
 One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
 Supports 1080p lite of all channels and when enabled, the image effect is similar with 1080p
Video Output
 Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution
 One SATA interface (up to 6 TB capacity per HDD)
 16-ch synchronous playback
 Smart search for efficient playback
 VQD (Video Quality Diagnostics)
 Unlock pattern for device login for the admin and clear-text password available
 GUID file can be exported for password resetting and imported for finding the forgotten password
 Supports PTZ control via Omnicast VMS of Genetec protocol
 Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Video/Audio Input

Audio Input:

1-ch

Video Compression:

H.264,H.264+

Analog Video Input:

16-ch

Video input

HD-TVI : 1080p25, 1080p30, 720p25, 720p30

AHD : 1080p25, 1080p30, 720p25, 720p30

CVI :1080p25, 1080p30, 720p25, 720p30

CVBS :Support

Audio Compression:

G.711u

Two-way Audio:

1-ch RCA(2.0Vp-p, 1kΩ)

Video/Audio Output
HDMI/VGA Output:		1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Encoding resolution:		When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
Frame Rate:		Main stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: 4CIF/2CIF@6fps; CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video Bit Rate:		32 Kbps ~ 4 Mbps
Stream Type:		Video/Video&Audio
Audio Output:		1-ch RCA(Linear, 1kΩ)
Audio Bit Rate:		64kbps
Dual Stream:		Support
Synchronous Playback:		16-ch

Network management
Remote connections:		128
Network protocols:		TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard Disk Driver
Interface Type:		1 SATA Interface
Capacity:		Up to 6 TB capacity for each disk

External Interface
Network Interface:		1; 10M / 100M self-adaptive Ethernet interface
USB Interface:		2 USB 2.0 Interfaces

General
Power Supply:		12 VDC
Consumption:		≤ 20 W
Working Temperature:		-10 ºC to +55 ºC (14 ºF to 131 ºF)
Working Humidity:		10% to 90%
Dimensions:		285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)
Weight:		≤ 1.2 kg (2.6 lb)
