DS-2DB4236I-CWX (WE/316L)

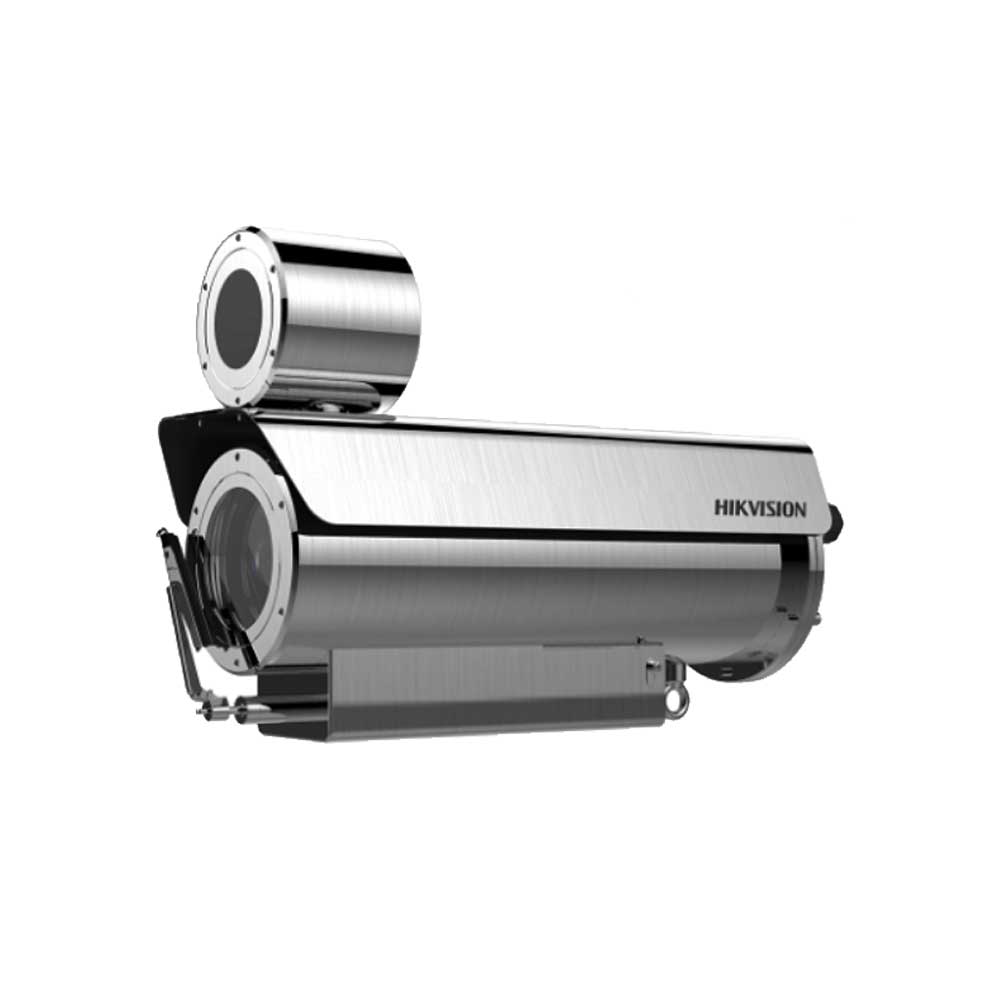

2 MP 36× Explosion-Proof IR Zoom Bullet Camera

1/1.8" progressive scan CMOS
Up to 1920 × 1080 resolution
Min. illumination:
Color: 0.002 Lux @(F1.5, AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
0 Lux with IR

36× optical zoom, 12× digital zoom
Digital WDR, 3D DNR, HLC, BLC
100 VAC to 240 VAC & PoE+ (IEEE802.3at class4)
Up to 200 m IR distance
Support H.265+/H.265 video compression
Explosion-Proof Certificate No.:
CML 17ATEX1189X
IECEx CML 17.0103X

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor:		1/1.8" progressive scan CMOS
Effective Pixels:		1920(H)x1080(V)
Minimum Illumination:		Color: 0.002 Lux @(F1.5, AGC ON) B/W: 0.0002 Lux @(F1.5, AGC ON) 0 Lux with IR
White Balance:		Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
AGC:		Auto/Manual
BLC:		ON/OFF
HLC:		Support
WDR:		DWDR
Shutter Time:		1/1 s to 1/30,000 s
Day& Night:		ICR
Digital Zoom:		12×
Auto Focus:		Auto / Semi-automatic / Manual

Lens
Focal Length:		5.6 mm to 205 mm, 36× optical zoom
Zoom Speed:		Approx. 4.4 s (optical lens, wide-tele)
Angle of View:		Horizontal field of view: 59.8° to 2.0° (wide-tele) Vertical field of view: 33.6° to1.1° (wide-tele) Diagonal field of view: 68.6° to 2.3° (wide-tele)
Minimum Working Distance:		10 mm to 1500 mm (wide-tele)
Aperture Range:		F1.5 to F4.5

Pan & Tilt
Number of Preset:		255
Wiper:		Support

Infrared
IR irradiation distance:		200m

Alarm
Alarm Input:		1
Alarm Output:		1

Input & Output
CVBS Output:		1.0V[p-p]/75Ω, NTSC (or PAL) composite, BNC
Audio Input:		1-ch audio input
Audio Output:		1-ch audio output

Network
Ethernet:		10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:		1920×1080
Main Stream:		50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Sub Stream:		50Hz:25fps(704×576), 25fps(640×576), 25fps(320×288) 60Hz:30fps(704×480), 30fps(640×480), 30fps(320×240)
Third Stream:		50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
Video Compression:		Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
ROI encoding:		Support 2 areas with adjustable levels
Audio Compression:		G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Protocols:		IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Three-Stream:		Support
Mini SD Card:		Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level:		Up to 32 users, 3 levels: Administrator, Operator and User
Security Measures:		User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering

General
RS-485 Protocols:		HIKVISION, Pelco-P, Pelco-D, self-adaptive
Power Supply:		100 VAC to 240 VAC & PoE+ (IEEE802.3at class4)
Power Consumption:		Max. 25 W
Working Temperature/Humidity:		-40°C to 60°C (-40°F to 140°F) Humidity: ≤ 95%
Protection Level:		IP68 Standard, TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Mounting:		Wall mounting
Material:		Stainless Steel 316L
Dimensions:		440 mm × 258 mm × 510 mm (17.32" × 10.16" × 20.08")
Weight (approx.):		Approx. 17.5 kg (38.58 lb)
