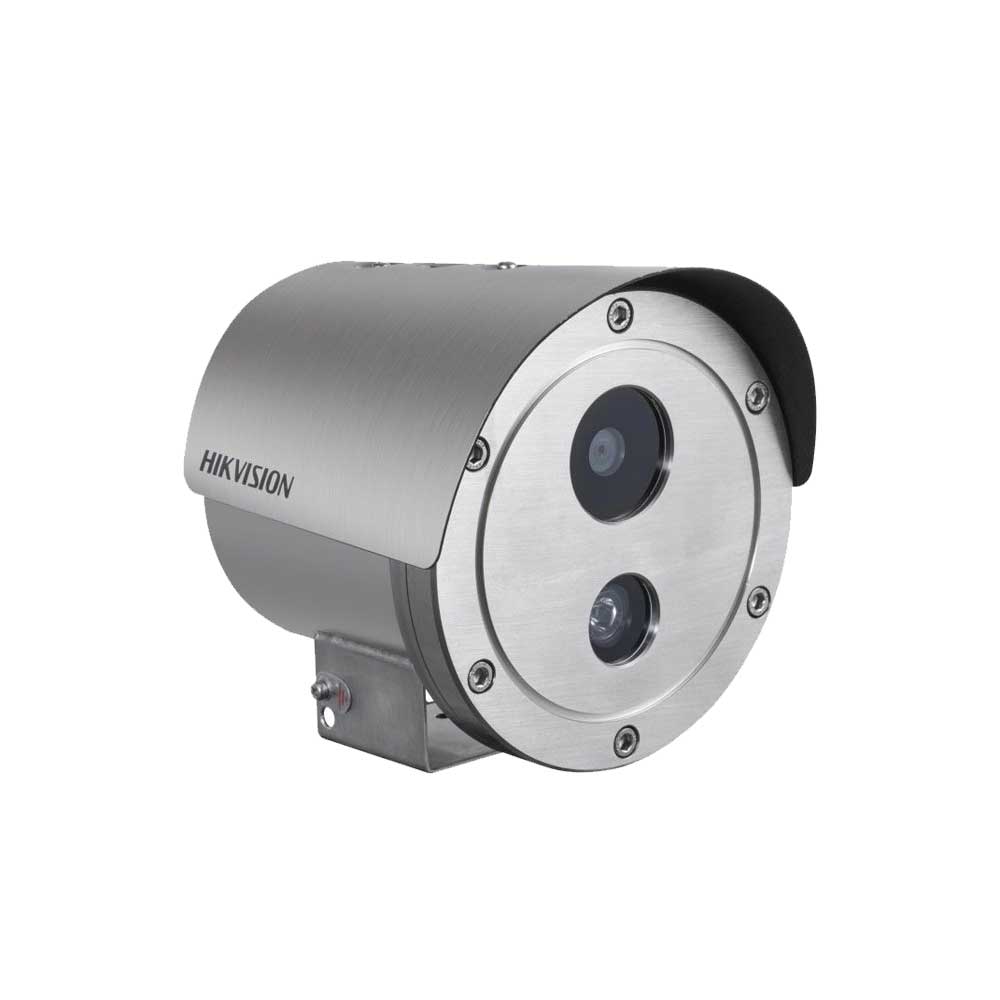

DS-2XE6222F-IS/316L
2 MP Explosion-Proof Network Bullet Camera
• 1/2.7” Progressive Scan CMOS
• 1920 × 1080 @25fps frame rate
• Housing material: Stainless steel 304 and 316L optional
• 120dB WDR
• 3D DNR
• Up to 30m IR range
• Support H.265+/H.265/H.264+/H.264
• Support 128G on-board storage
• AC100V to 240V/PoE
• 1920 × 1080 @25fps frame rate
• Housing material: Stainless steel 304 and 316L optional
• 120dB WDR
• 3D DNR
• Up to 30m IR range
• Support H.265+/H.265/H.264+/H.264
• Support 128G on-board storage
• AC100V to 240V/PoE
Camera | ||
---|---|---|
Image Sensor: | 1/2.7” Progressive Scan CMOS | |
Signal System: | PAL/NTSC | |
Min. Illumination: | 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR on | |
Shutter time: | 1 s to 1/100,000 s | |
Slow shutter: | Support | |
Lens: | 4/6/8/12/16mm optional | |
Lens Mount: | M12 | |
Day& Night: | ICR (Auto/Schedule/Alarm Trigger) | |
Wide Dynamic Range: | 120 dB | |
Digital noise reduction: | 3D DNR |
Compression Standard | ||
---|---|---|
Video Compression: | H.265/H.264/MJPEG | |
H.264 code profile: | Baseline profile/main profile/high profile | |
Video bit rate: | 32Kbps~16Mbps | |
Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM | |
Audio bit rate: | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2) | |
Dual Stream: | Yes | |
Triple Streams: | Yes |
Image | ||
---|---|---|
Max. Image Resolution: | 1920 x 1080 | |
Frame Rate: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|
Sub Stream: | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240) |
|
Third Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 ×240) |
|
Image Enhancement: | BLC/3D DNR | |
Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser | |
Target Cropping: | Support | |
BLC: | Support | |
3D DNR: | Support | |
ROI: | Support 4 customized region for each stream, and face dynamic tracking | |
Picture Overlay: | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format | |
Day/Night Switch: | Auto/Schedule/Triggered by Alarm In |
Network | ||
---|---|---|
Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
Alarm Trigger: | Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception | |
Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP | |
General Function: | Mirror, anti-flicker, heartbeat, watermark, password protection, privacy mask | |
System Compatibility: | ONVIF (Profile S, Profile G), ISAPI |
Intelligent | ||
---|---|---|
Behavior analysis: | Support |
Interface | ||
---|---|---|
Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
Alarm: | 2 alarm input, 2 alarm output | |
Alarm Input: | 2 | |
Alarm Output: | 2 | |
On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
Reset Button: | Yes |
Smart Feature-set | ||
---|---|---|
Behavior Analysis: | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal | |
Line Crossing Detection: | Cross a pre-defined virtual line | |
Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
Region Entrance: | Enter a pre-defined virtual region from the outside place | |
Region Exiting: | Exit from a pre-defined virtual region | |
Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials | |
Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. | |
Exception Detections: | Scene change detection, defocus detection | |
Recognition: | Face Detection |
General | ||
---|---|---|
Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
|
Power Supply: | AC 100 V to 240 V | |
Power Consumption: | Max. 7W | |
Impact Protection: | IK10 | |
IR Range: | Up to 30m | |
Dimensions: | Camera: 202 × 174 × 172 mm (7.95"× 6.85" × 6.77") Package: 435 × 255 × 285 mm (17.1" × 10" × 11.2") |
|
Weight: | 7.34 kg (16.18 lbs) |
