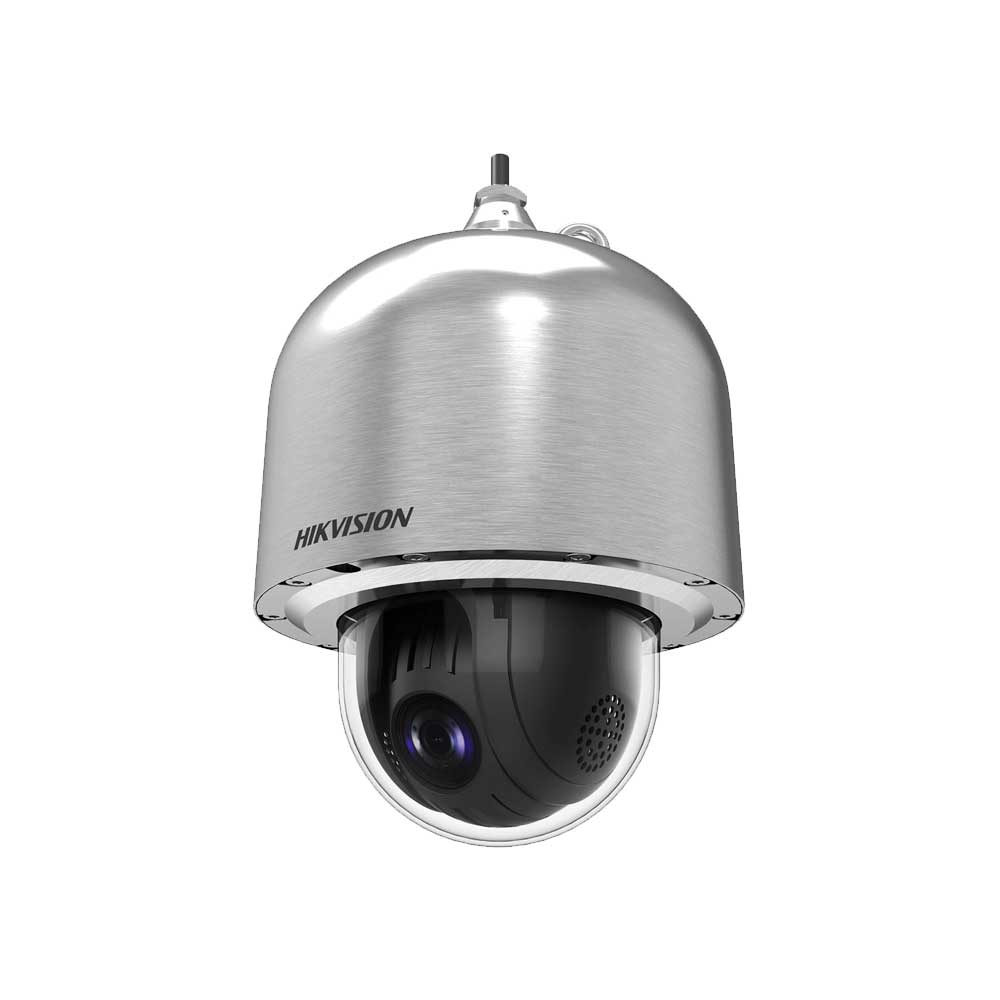

DS-2DF6223-CX (W)

2MP Explosion-Proof Network Speed Dome

• 1/1.9’’ progressive scan CMOS
• Up to 1920 × 1080 resolution,23X Optical zoom
• 120dB WDR, 3D DNR
• IP68
• 304L stainless steel anti-corrosion materials design
• Explosion-Proof Certificate No.:TÜ V 16 ATEX 7950X, IECEx TUR 16.0050X

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Effective Pixels:		1920(H)x1080(V)
Signal System:		PAL/NTSC
Minimum Illumination:		Color: 0.002 Lux @(F1.5, AGC ON) B/W: 0.0002 Lux @(F1.5, AGC ON)
White Balance:		Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:		Auto/Manual
BLC:		ON/OFF
HLC:		Support
Smart defog:		Support
WDR:		120dB
Shutter Time:		1/1 s to 1/30,000 s
Day& Night:		ICR
Digital Zoom:		16×
Privacy Masking:		24 privacy masks programmable; optional multiple colors and mosaics
Auto Focus:		Auto / Semi-automatic / Manual

Lens
Focal Length:		5.9 mm to 135.7 mm, 23× optical zoom
Zoom Speed:		Approx. 7.4 s (Optical Lens, Wide-Tele)
Angle of View:		59.8° to 2.0° (Wide-Tele)
Minimum Working Distance:		10 mm to 1500 mm (Wide-Tele)
Aperture Range:		F1.5 to F4.5

Pan & Tilt
Pan Range:		360°endless
Pan Speed:		Configurable, from 0.1°/s to 300°/s Preset Speed: 540°/s
Tilt Range:		Tilt: 0°~90°
Tilt Speed:		Configurable, from 0.1°/s to 240°/s Preset Speed: 400°/s
Proportional Zoom:		Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:		300
Patrol:		8 patrols, up to 32 presets for each patrol
Pattern:		4 pattern scans, record time over 10 minutes for each scan
Power-off Memory:		Support
Park Action:		Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display:		ON/OFF
Smart-tracking:		Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting trigger Smart tracking when patrol between multiple scenarios

Alarm
Alarm Input:		7 Inputs
Alarm Output:		2
Alarm Actions:		Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel

Input & Output
Monitor Output:		1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Audio Input:		1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output:		1 Audio output interface Line level, impedance: 600Ω

Network
Ethernet:		10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:		1920×1080
Main Stream:		50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Sub Stream:		50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream:		50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
ROI encoding:		Support 24 areas with adjustable levels
Audio Compression:		G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols:		IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
No. of Simultaneous Users:		Up to 20 users
Three-Stream:		Support
Mini SD Card:		Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level:		Up to 32 users 3 levels: Administrator, Operator and User
Security Measures:		User authentication (ID and PW), Host authentication (MAC address) IP address filtering

Client GUI
Date & Time Display:		Time: Week: Date, 6 formats on the Client
Client:		Support iVMS-4200
Web Browser:		IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language

General
RS-485 Protocols:		HIKVISION, Pelco-P, Pelco-D, self-adaptive
Menu Language:		English
Power Consumption:		100 VAC to 240 VAC, Max.: 60 W
Working Temperature/Humidity:		-40° C to 60°C (-40° F to 140° F)
Dimensions:		Φ 281 mm × 405 mm (11.06" × 15.94")
Weight (approx.):		Approx. 22 kg (48.5 lb)
Mount Option:		DS-1685ZJ-X Wall Mounting Bracket (Included); DS-1686ZJ-X Pendant Mounting Bracket (Optional)
