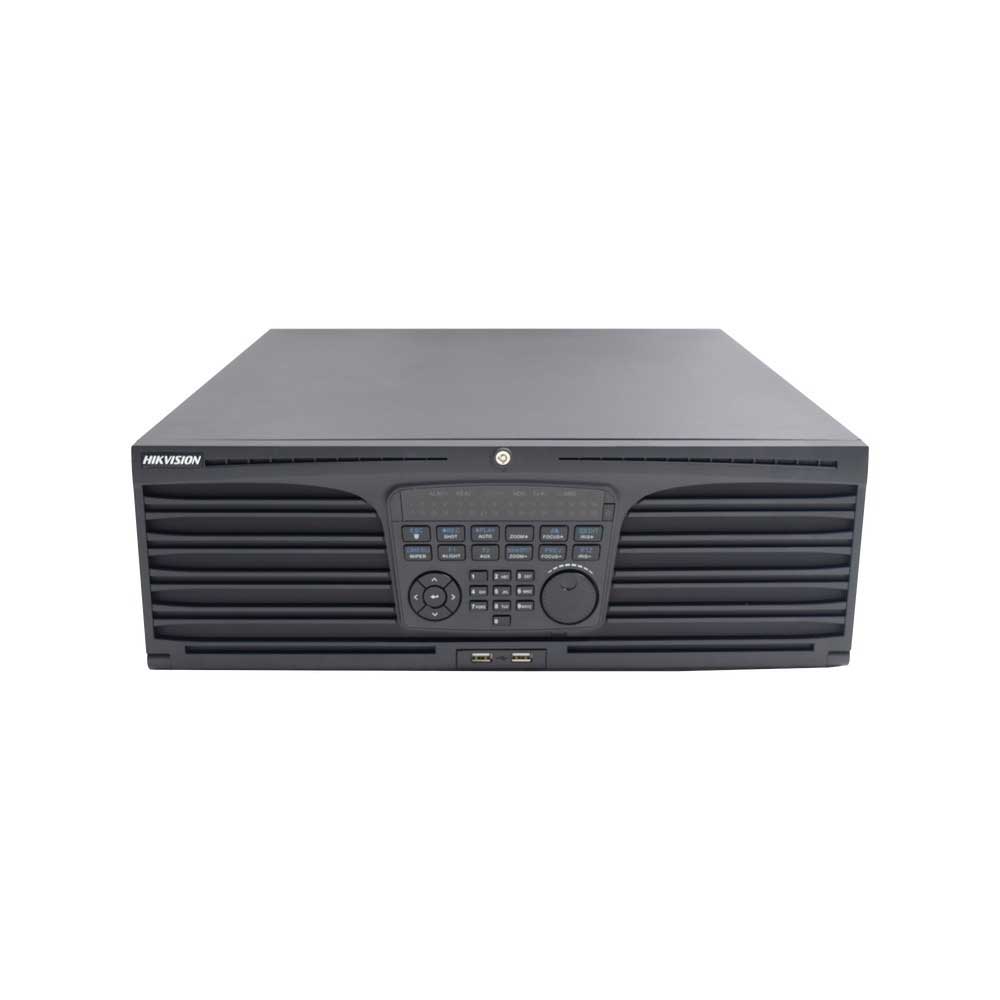

DS-9664NI-I16

Embedded 4K NVR

Embedded 4K NVR
• Third-party network cameras supported
• Up to 12 Megapixels resolution recording
• Support 2-ch HDMI, 2-ch VGA, HMDI1 at up to 4K(3840x2160) resolution
• Up to 64 IP cameras can be connected with 320M incoming bandwidth
• Up to 16 SATA interfaces
• Support HDD hot swap with RAID0,1,5,6,10 storage scheme configurable
•Support various VCA detection alarm and VCA search
•Support H.265/H.264/MPEG4 video format

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Video/Audio Input
Two-way audio input:		1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input:		64-ch

Network
Remote connection:		128
Incoming bandwidth:		320Mbps or 200Mbps(when RAID is enabled)
Outgoing bandwidth:		256Mpbs or 200Mbps(when RAID is enabled)

Video/Audio Output
HDMI/VGA output:		2-ch, resolution: HMDI1/VGA1:HDMI1: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI2/VGA2:1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Recording Resolution:		12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:		2-ch, RCA (2.0Vp-p, 1KΩ)
Synchronous Playback:		16-ch

Decoding
Capability:		4-ch@4K, 16-ch@1080p
Live view / Playback:		12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Hard Disk
Interface Type:		1 eSATA interface
SATA:		16 SATA interfaces for 16 HDDs
Capacity:		Up to 6TB capacity for each HDD

Disk array
Array type:		RAID0, RAID1, RAID5, RAID6, RAID10
Number of array:		5

External Interface
Network Interface:		2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces
Serial Interface:		RS-232, RS-485, Keyboard
USB Interface:		Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0

General
Power Supply:		100 to 240 VAC, 50 to 60 Hz
Consumption(without hard disk and POE):		≤ 45 W
Working Temperature:		-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity:		10 % ~ 90 %
Chassis:		19-inch rack-mounted 3U chassis
Dimensions:		445 × 496 × 146 mm (17.5 × 19.5 × 5.7")
Weight(without HDD):		≤ 12.5 Kg (27.6 lb)
