DS-2CD2T46G2-2I/4I

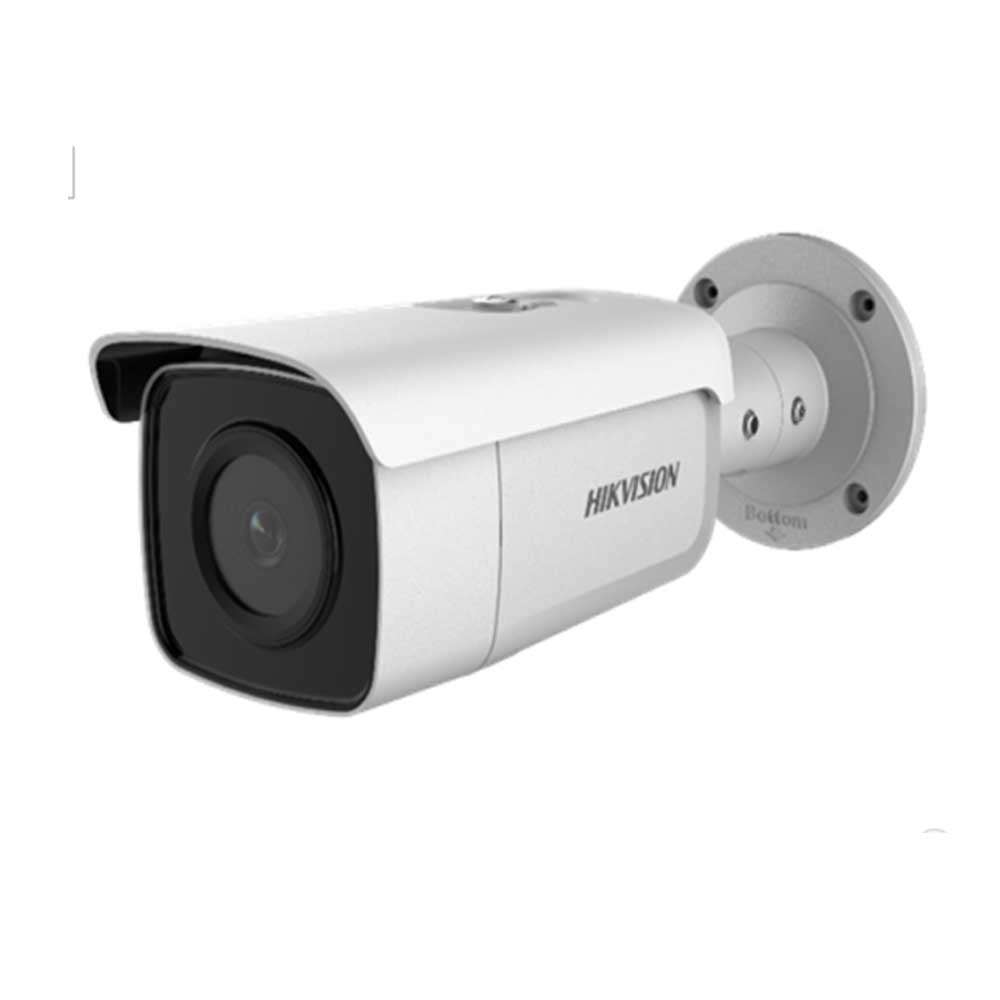

4 MP AcuSense Fixed Bullet Network Camera

High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Clear imaging against strong backlight due to 120 dB true WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle targets classification based on deep learning
Water and dust resistant (IP67)

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2688 × 1520
Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°

4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°

6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°
Lens MountM12
Iris TypeFixed
ApertureF1.4

DORI
DORI
2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m

4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m

6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m

Illuminator
Supplement Light TypeIR
Supplement Light Range
2I: Up to 60 m

4I: Up to 80 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.265+/H.264+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region Of Interest (ROI)1 fixed region for main stream and sub-stream

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported
ClientiVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters SwitchYes
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Image EnhancementBLC, HLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in micro SD slot, up to 256 GB
Reset KeyYes

Event
Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting detection

Scene change detection
LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email

Deep Learning Function
Face CaptureYes

General
Power
2I:

12 VDC ± 25%, 0.63 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W

4I:

12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection

PoE: 802.3af, Class 3, 36 V to 57 V, 0.34 A to 0.21 A, max. 12 W
DimensionØ105 mm × 289.5 mm (Ø4.1" × 11.4")
Package Dimension386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Approx. 1075 g (2.4 lb.)
With Package WeightApprox. 1584 g (3.5 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 + A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1);

CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);

CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013);

LOA (IEC/EN 60950-1)
EnvironmentCE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)
