Chi Tiết Sản Phẩm

NK44W0H(D)

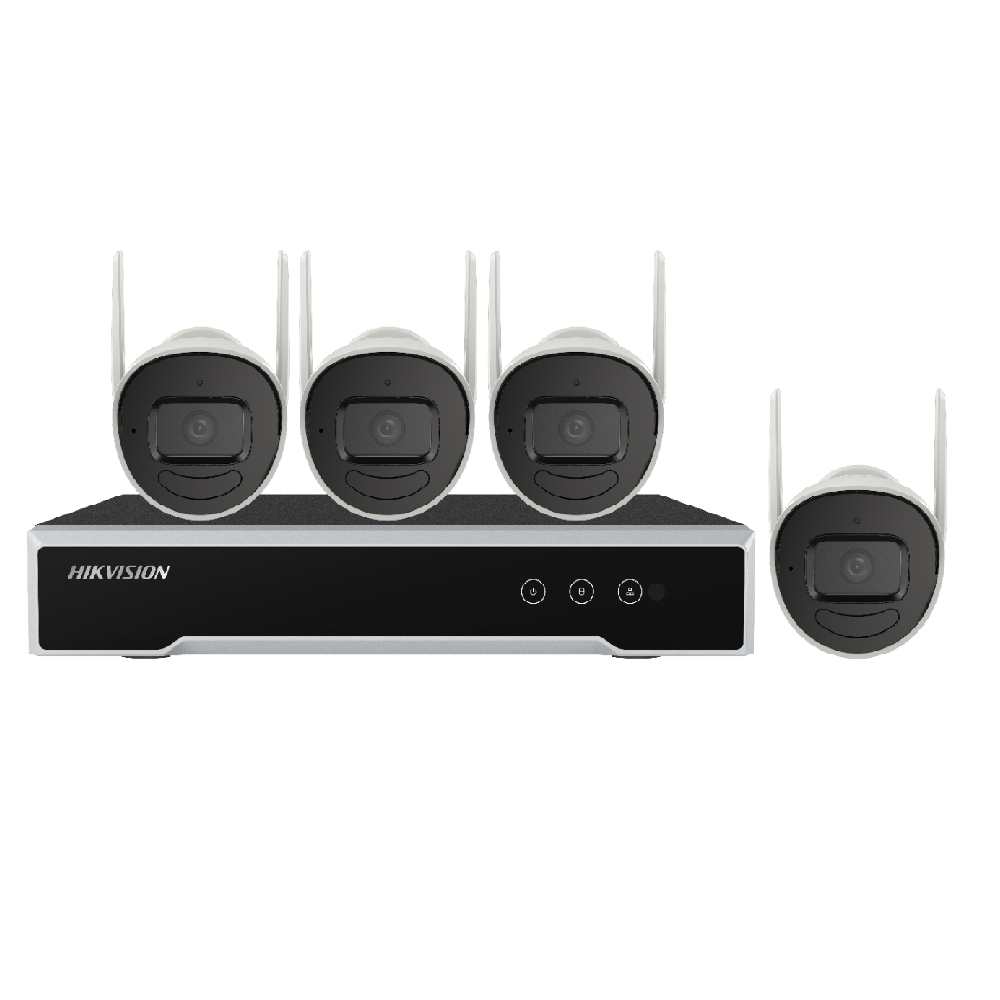

4MP H.265 Bullet WiFi Kit

One pack provides everything required for small monitoring scenarios:One 4-ch Wi-Fi NVR with decoding up to 4-ch @ 4MP
four 4 MP bullet Wi-Fi cameras with efficient H.265 compression technology
One network cable and one HDMI cable
Auto Wi-Fi connection and easy installation
Hik-Connect cloud service and app for remote management and viewing of devices
  • Camera
  • Camera Case TypeBullet
  • Image Sensor1/3" Progressive Scan CMOS
  • Min. IlluminationColor: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Day &NightIR cut filter
  • WDRDWDR
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Protection LevelIP66
  • MaterialFront cover: plastic, camera body: metal
  • Wi-Fi SupportYes
  • Camera/Lens
  • Focal Length2.8 mm
  • ApertureF1.6
  • FocusFixed
  • FOV2.8 mm, horizontal FOV: 97°, vertical FOV: 52°, diagonal FOV: 114°
  • Lens MountM12
  • Camera/IR
  • IR RangeUp to 30 m
  • Camera/Compression Standard
  • Video CompressionMain stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.264+Main stream supports
  • H.265 TypeMain Profile
  • H.265+Main stream supports
  • Video Bit Rate32 Kbps to 8 Mbps
  • Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit Rate64 Kbps(G.711 ulaw)/64 Kbps(G.711 alaw)/16Kbps(G.722.1)/16 Kbps(G.726)/32-160 Kbps(MP2L2)/16-64Kbps(AAC)
  • Audio Sampling Rate8 kHz/16 kHz
  • Environment Noise FilteringYes
  • Camera/Image
  • Max. Resolution2560 × 1440
  • Main Stream

    50Hz: 20 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

    60Hz: 20 fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50Hz: 20 fps (640 × 360)

    60Hz: 20 fps (640 × 360)

  • Image SettingMirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night SwitchAuto/Scheduled/Day/Night
  • Camera/Network
  • Alarm TriggerMotion detection, exception
  • ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
  • General FunctionAnti-flicker, heartbeat, password reset via e-mail
  • ClientiVMS-4200, Hik-Connect
  • Camera/Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Audio I/O1 Built-in mic
  • Reset ButtonYes
  • Camera/General
  • Power Supply12 VDC ± 25%, 0.5 A, Ø5.5 mm coaxial plug power
  • Consumption≤ 6 W
  • Working Temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working Humidity95% or less (non-condensing)
  • Dimension (W × D × H)175.6 × 73.0 × 89.1 mm (6.9" × 2.9" × 3.5")
  • 330 g (0.7 lb.)
  • NVR/Video And Audio
  • IP Video Input4-ch
  • Incoming/Outgoing Bandwidth50 Mbps/40 Mbps
  • HDMI/VGA Output

    1-ch, resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

    HDMI/VGA simultaneous output

  • Audio Output1-ch, RCA (linear, 1 KΩ)
  • NVR/Decoding
  • Video Resolution4 MP/3 MP/1080p/1.3 MP/720p
  • Synchronous Playback4-ch
  • Capability4-ch@4 MP (12 fps)/4-ch@1080p (25 fps)
  • NVR/Network
  • Network Interface1, RJ45 10/100M Ethernet interface
  • Network ProtocolIPv6, UPnP™, NTP, SADP, DHCP
  • Remote Connection16
  • NVR/Wi-Fi
  • Frequency Band2.4 GHz
  • Antenna Structure2 × 2MIMO
  • Transmission Speed144 Mbps
  • Transmission StandardIEEE 802.11b/g/n
  • NVR/Auxiliary Interface
  • SATA1
  • CapacityUp to 6 TB capacity for each disk
  • USB InterfaceRear panel: 2 × USB 2.0
  • NVR/General
  • Power Supply12 VDC
  • Consumption (Without HDD And PoE Off)≤ 12 W
  • Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)265 × 225 × 48 mm (10.4" × 8.9" × 1.9")
  • Weight (Without Hard Disk)≤ 1.6 kg (3.5 lb.)
  • Kit
  • Accessories

    Power cable: 4 × IPC power cables, 1 × NVR power cable

    Ethernet cable: RJ45, Cat5e UTP, 1 m. Connects NVR and Switch

    HDMI cable: 1 × HDMI cable, 2 m, black

  • CertificationFCC, CE
  • Weight (With Package)≤ 7 kg (15.4 lb.)
