Chi Tiết Sản Phẩm

CS-SP208-A0-212WFBS

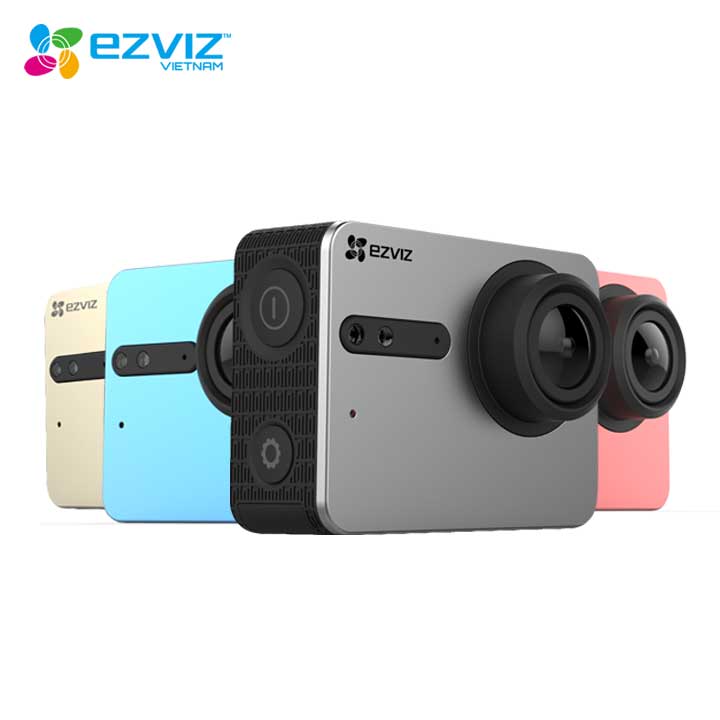

Camera hành trình S5

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Action Camera

S5
Video	Video Format	Resolution	NTSC(fps)	PAL(fps)	Field Of View
		4K SuperView	15	12.5	Wide
		4K	15	12.5	Wide
		2.7k Superview	30	25	Wide
		2.7K	24/30	24/25	Wide/Medium
		2.7K 4:3	30	25	Wide
		1440P	24/30/48/60	24/25/48/50	Wide
		1080P SuperView	24/30/48/60	24/25/48/50	Wide
		1080P	24/30/48/60	24/25/48/50	Wide/Medium/Narrow
		960P	60/120	50/100	Wide
		720P SuperView	60/120	50/120	Wide
		720P	30/60/120	25/50/120	Wide/Medium/Narrow
		WVGA	240	240	Wide
		H.264 BP/MP/HP Level 5.1 With MP4 Muxer File Format
	Record Mode	Video、Video+Photo
	Low Light	Auto Adjust Frame Rate for enough exposure time purpose
	Distortion Correct	Better X/Y Correct
	EIS	Advanced EIS with X/Y/Z+rotation correct
	HiLight Tag	High Light Important Time,used for Post processing
	Loop Mode	To set up the storage mode according to the time interval set
Single	Photo Size	16MP Wide、12MP Wide、8MP Medium、5MP Wide
	Night	2s、5s、10s、15s
	Distortion Correct	Better X/Y Correct
	Meter Mode	Center、Average、Spot
	Protune	White Balance、ISO、Sharpness、Ev Comp、Color Pattern
Burst	Photo Size	16MP Wide、12MP Wide、8MP Medium、5MP Wide
	Burst Rate	15 pictures 1 second
		15 pictures 2 seconds
		15 pictures 3 second
		10 pictures 1 seconds
		10 pictures 2 second
		10 pictures 3 second
		5 pictures 1 second（default）
		3 pictures 1 second
	Distortion Correct	Better X/Y Correct
	Meter Mode	Center、Average、Spot
	Protune	White Balance、ISO、Sharpness、Ev Comp、Color Pattern
Timelapse	Shutter Mode	Timelapse Photo、Timelapse Video
	Photo Size	16MP Wide、12MP Wide、8MP Medium、5MP Wide
	Video Resolution	4K SuperView、4K、2.7k Superview、2.7K 4:3、1440P、1080P SuperView
	Video Resolution	1080P、960P、720P SuperView、720P、WVGA
	Shutter Interval	1s、3s、5s、10s、30s、60s、120s、300s
	Meter Mode	Center、Average、Spot
	Night	2s,5s,10s,15s
	Distortion Correct	Better X/Y Correct
	Protune	White Balance、ISO、Sharpness、Ev Comp、Color Pattern
Playback	Decode Photo and Video Files in sd Card and Display it via LCD or HDTV
Setup	View	Up、Down、Auto
	Default Mode	Video、Single、Burst、Timelapse
	Driving Mode	The camera automatically starts and Shutter after the camera detects the motion
	Vout Mode	Switching HDMI HD output and AV analog output
	LED	Set it on or off
	Beeps	Set the Gain of Beeps or Turn it off
	OSD	Turn on screen display on or off
	Quickly Capture	Camera will Fastest speed boot and start shutter
	Auto Off	Set Auto Power Off Time
	Date And Time	Set Date And Time
	Mic Gain	Set The Gain of Mic
	Speaker Gain	Set The Gain of Speaker
	Camera Reset	Reset Camera to default Settings
Wireless	BLE 4.0	Embedded bluetooth4.0
	802.11b/g/n、Mobile App Support
	App&Remote	Select connect Mode with Mobile App Or Wifi Remoter
	WIFI	SSID	Support SSID Modify with Mobile App
	KEY	Support KEY Modify with Mobile App
	RESET	Reset SSID and KEY to system default
Display	HDMI	Display With
	AV	AV output Use USB Interface
	Embedded LCD	320x240 LCD With Touch Pannel
Lens Specification	1/2.33” CMOS
Lens Specification	Full glass lens for high image quality，3mm@f2.8 158°Ultra-wide angle of view with less distortion
Platform	Ambarella new generation Video Processor，using advanced 28-nm silicon technology
Memory	4Gb LPDDR3、2Gb Nand Flash
Sensor	Panasonic new generation video sensor for sport dv
Battery	Battery Type	Replaceable、Rechargeable li-ion battery
	Battery Parameters	1160mAh
	Battery Life	1.5 hours (Varies with different video mode)
Audio	48kHz (sampling), Advanced AGC (automatic gain control) Build-in two microphone for wind noise reduce Single track Beeps for shutter notify
Interface	Micro USB3.0	For charging when connect with power cable; For playback/file transportation/charging when connecting with PC; AV output
Storage	Micro HDMI	For play on HDTV via HDMI cable
	MicroSD	Storage card
	Standard	Class 10 or up to UHS-1 level Micro SD storage card
	Capacity	4GB、8GB、16GB、32GB、64GB、128GB
	Recording Time	Varies with different resolution and frame rate
IMU	G sensor/Gyro	For EIS、Driving Mode、Motion Awake
Photo/Video Preview/Playback /Setup	App for Mobile Device	For iOS and Android system Live view, playback, recording, configuration, video file editing, and one-touch share to social media are supported.
Protection Grade	Camera	40 meters diving with water-proof case
Protection Grade	Remote	IP67
Operating Conditions	Temperature: -20° C to 45° C;
Dimensions	58mm(W)×45mm(H)×20.6(W)
Weight	About 99.7g
