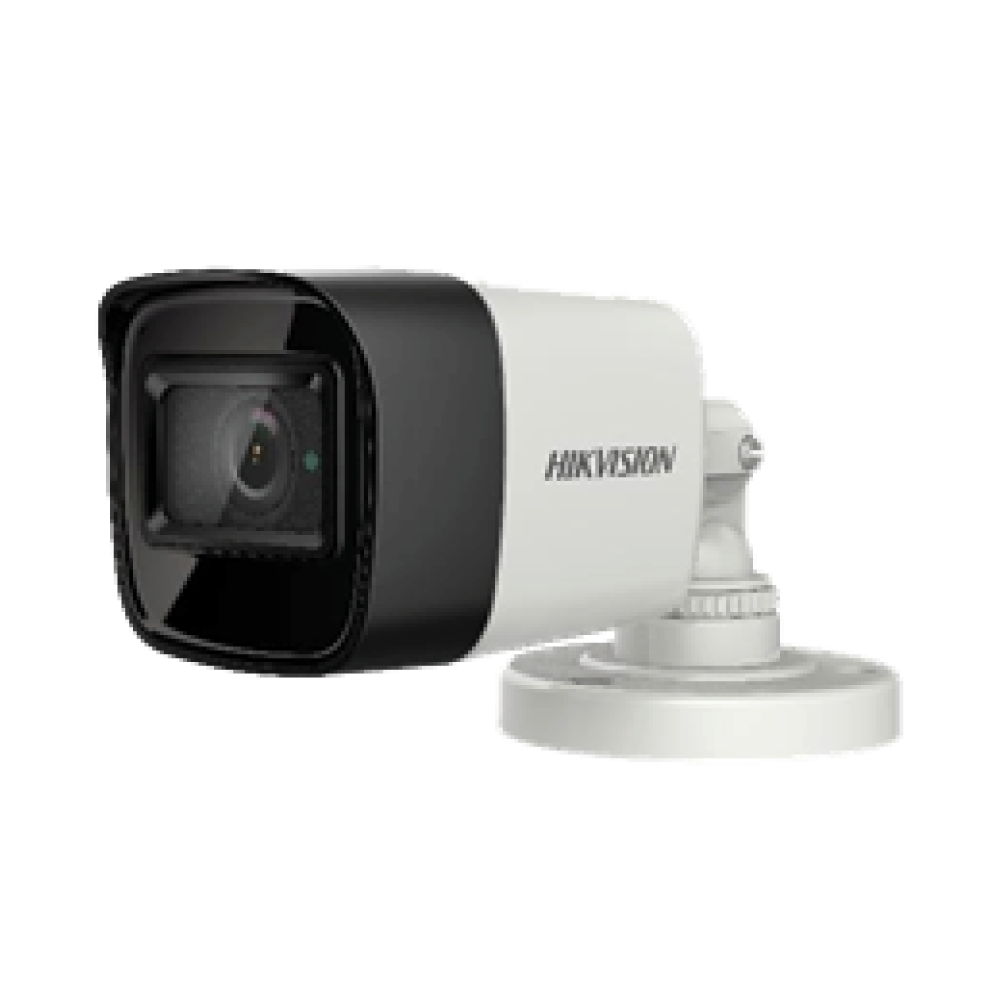

DS-2CE16D0T-ITFS

2 MP Fixed Mini Bullet Camera
2 MP bullet camera
Smart IR: up to 20 m IR distance
Audio over coaxial cable, built-in mic
Water and dust resistant (IP67)
4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor2 MP CMOS
Signal SystemPAL/NTSC
Frame RateTVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
Resolution1920 (H) × 1080 (V)
Min. Illumination0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
Lens2.8 mm, 3.6 mm, 6 mm fixed lens
Horizontal Field Of View2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6° 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7° 6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°
Lens MountM12
Day & NightICR
WDR (Wide Dynamic Range)Digital WDR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°

Menu
Image ModeSTD/HIGH-SAT
AGCYes
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceAuto/Manual
HLCYes
BLC (Backlight Compensation)Yes
LanguageEnglish
FunctionsBrightness, Sharpness, Smart IR

Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS

General
Operating Condition‘-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply12 VDC ± 25%
Power ConsumptionMax. 2.2 W
Protection LevelIP67
MaterialPlastic
IR RangeUp to 20 m
CommunicationHIKVISION-C
DimensionsΦ 70 mm × 137.8 mm (Φ 2.76" × 5.43")
WeightApprox. 150 g (0.33 lb.)
