Chi Tiết Sản Phẩm

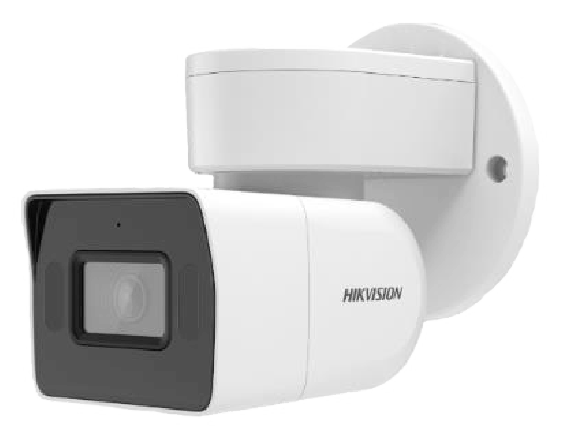

DS-2CD1P23G0-I

Camera IP thân quay quét 2MP

Camera thân quay quét 2MP
● Ống kính cố định 4 mm
● H.264/H.265/H.265+
● Xoay ngang 0°~200°, Xoay dọc -10°~55°
● Chống ngược sáng thực 120dB WDR
● BLC, HLC, 3D DNR
● Hỗ trợ 1 microphone
● Hồng ngoại lên đến 40m

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera IP thân quay quét 2MP: DS-2CD1P23G0-I
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR on
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Yes
P/N	P
Wide Dynamic Range	120 dB
Day & Night	IR cut filter
Angle Adjustment	Horizontal: 0°~200°, vertical: -10°~55°
Power-off Memory	Yes
Presets	Yes
Lens
Lens Type & FOV	4 mm: Horizontal FOV: 87.3°, vertical FOV: 46.3°, diagonal FOV: 104.2° 6 mm: Horizontal FOV: 53.9°, vertical FOV: 28.8°, diagonal FOV: 62.8° 8 mm: Horizontal FOV: 40.9°, vertical FOV: 22.5°, diagonal FOV: 47.4° 12 mm: Horizontal FOV: 25.4°, vertical FOV: 14.4°, diagonal FOV: 29.1°
Aperture	F1.6
Lens Mount	M12
Illuminator
IR Range	Up to 40 m
Wavelength	850 nm
Smart Supplement Light	Yes
Video
Max. Resolution	1920 × 1080
Main Stream	50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream	50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream	50 Hz: 1 fps (1280 × 720, 640 × 360)
Video Compression	Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate	32 Kbps to 8 Mbps
H.264 Type	Baseline Profile/Main Profile/High Profile
H.265 Type	Main Profile
H.264+	Yes
H.265+	Yes
Bit Rate Control	CBR/VBR
Scalable Video Coding (SVC)	Yes
Region of Interest (ROI)	1 fixed region for main stream
Audio
Environment Noise Filtering	Yes
Sampling Rate	8kHz/16kHz/32kHz/44.1kHZ/48kHz
Audio Compression	G.711a/G.711u/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate	64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32~192 Kbps(MP2L2)/16~64Kbps(AAC)
Network
Simultaneous Live View	Up to 6 channels
API	Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, SMTP, IGMP, QoS, UDP, Bonjour, SSL/TLS, 802.1x, UPnP
User/Host	Up to 32 users. 3 user levels: administrator, operator and user
Client	iVMS-4200, Hik-Connect
Web Browser	Plug-in required live view: IE8, IE9, IE10, IE11 Local service: Chrome 57.0+，Firefox 52.0+
Smart IR	Yes
Day/Night Switch	Day, Night, Auto, Schedule
Image Enhancement	BLC, HLC, 3D DNR
Image Settings	Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interface
Audio	1 built-in microphone
Hardware Reset	Yes
Communication Interface	1 10M/100M self-adaptive Ethernet port
Event
Basic Event	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
General
Linkage Method	Upload to FTP, notify surveillance center, send email, trigger recording, trigger capture
General Function	Heartbeat, mirror, password protection, watermark, IP address filtering, flash log, pixel counter
Software Reset	Yes
Storage Conditions	-30 °C to 60 °C. Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C. Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25% ; reverse polarity protection PoE: 802.3at, Class 4
Power Consumption and Current	12 VDC, 0.8 A, max. 9.6 W PoE: 802.3at, 42.5 V~57 V, 0.28 A~0.21 A, max. 12 W
Power Interface	Φ5.5 mm coaxial power plug
Camera Dimension	84.4 × 65.3 × 125.4 mm (3.32" × 2.57" × 4.94")
Camera Weight	Approx. 698 g (1.87 lb.)
