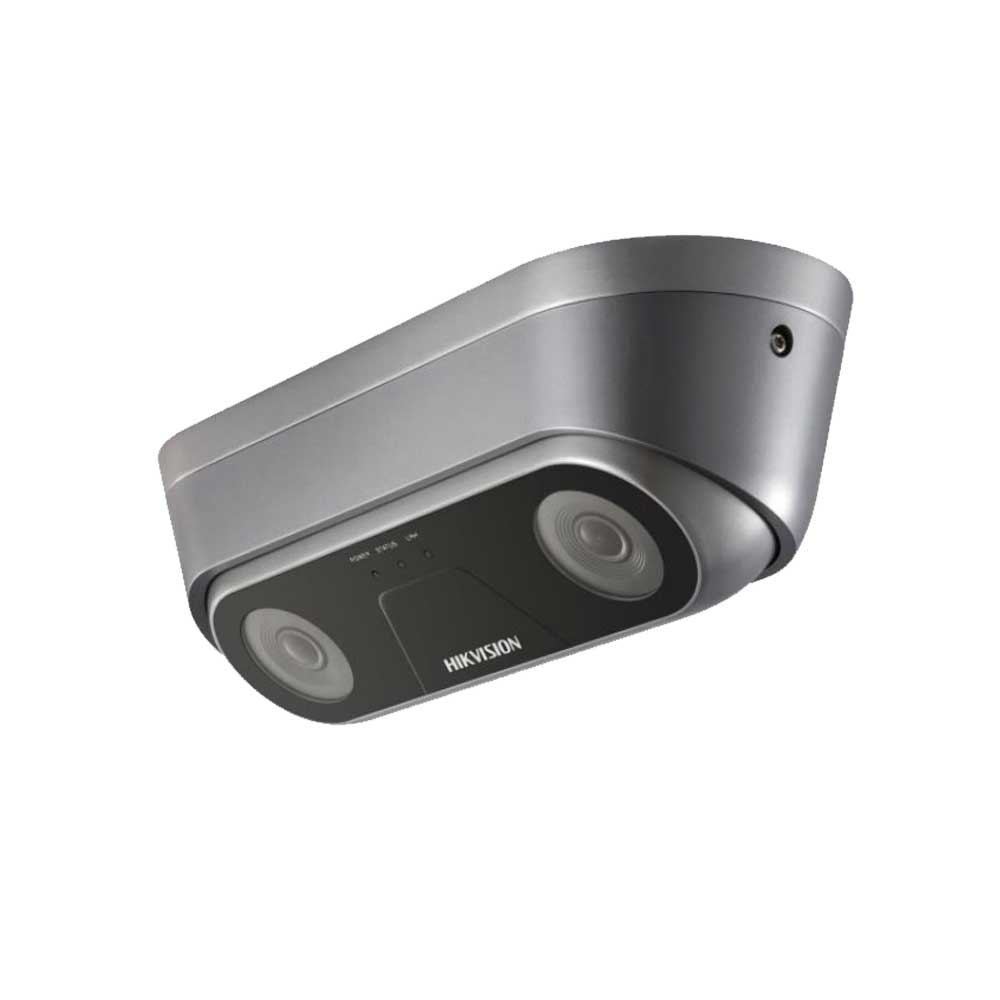

iDS-2CD6810F-IV/C

Outdoor Dual-Lens People Counting Camera

Support real-time people entering/exiting/passing by data.
Support statistical traffic report based on configurable time interval (day/week/month/year).
Flash memory storing people counting data
1/3'' progressive scan CMOS sensor
Support Smart Codec, high bandwidth efficiency, low time delay and optimized bit rate.
Support 3D DNR.
Black and white image
IP66
Up to 5m IR

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor:		1/3" Progressive Scan CMOS
Signal System:		PAL/NTSC
Shutter time:		1/25 s – 1/10,000 s
Lens:		2.8/4mm optional
Lens Mount:		M12
Adjustment Range:		2.8 mm: horizontal FOV 83°, vertical FOV 68° 4 mm: horizontal FOV 63°, vertical FOV 55°
Digital noise reduction:		3D DNR

Compression Standard
Video Compression:		H.264
H.264 code profile:		Baseline Profile/Main Profile
Video bit rate:		32Kbps~8Mbps
Dual Stream:		Yes

Max. Image Resolution:		640 × 960
Frame Rate:		Main stream: 50Hz: 25fps (640 × 480) 60Hz: 24fps (640 × 480)
Sub Stream:		50Hz: 25fps (640 × 960) 60Hz: 24fps (640 × 960)
Image Settings:		Brightness is adjustable by client software or web browser
3D DNR:		Support

Network
Alarm Trigger:		Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login
Protocols:		TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function:		One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering
System Compatibility:		ONVIF (Profile S, Profile G),ISAPI

Intelligent
People Counting:		Support separate counting of people entering, exiting, and passing by

Interface
Communication Interface:		1 RJ45 10M/100M self-adaptive Ethernet port, 1 RS-485 interface
Alarm:		2 inputs, 1 output (up to 24 VDC 1 A, or 110 VAC 500 mA)
Reset Button:		Yes

General
IR Range:		Up to 5m
Operation Condition:		-30°C to +60°C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply:		12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:		12 VDC, max. 7 W, 0.6A PoE(802.3af, 36 V to 57 V), max. 7 W, 0.2 A to 0.13 A
Weather Proof:		-V: IP66
Dimensions:		Camera: 226 × 88 × 64 mm (8.88″ × 3.48″ × 2.50″) Package: 260 × 125 × 125 mm (10.24″ × 4.92″ × 4.92″)
Weight:		Approx.850 g (1.87 lb.), 1050 g (2.31 lb.) with package
