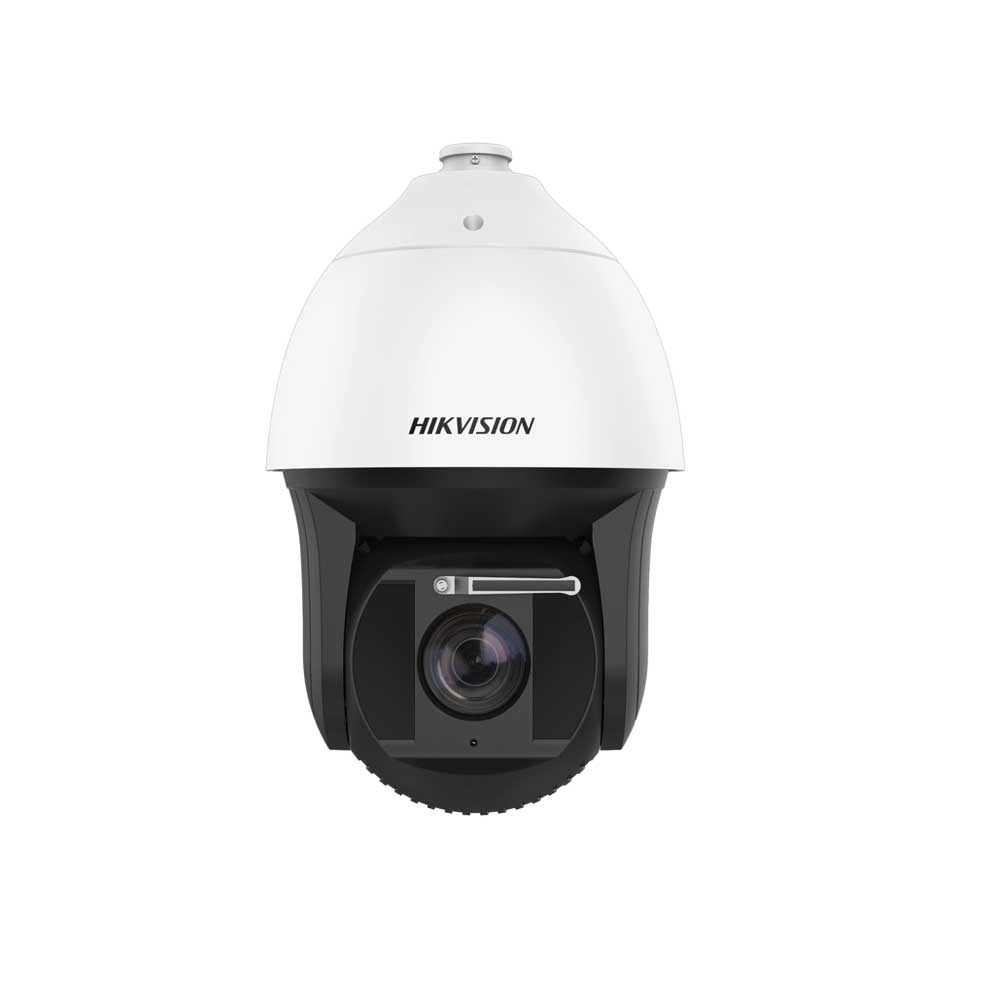

DS-2DF8236IX-AEL
2MP 36× Network IR Speed Dome
• 1/1.8” progessive scan CMOS sensor
• Up to 1920 × 1080 resolution
• 36X Optical Zoom
• Min. Illumination:
Color: 0.002 Lux @(F1.5, AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
0 Lux with IR
• Smart Tracking
• Smart Detection
• 200m IR distance
• Optional wiper(-W)
• Hi-PoE / 24VAC power supply
• Support H.265+/H.265 video compression
• Support Rapid Focus
• Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
• IP67, IK10
• Up to 1920 × 1080 resolution
• 36X Optical Zoom
• Min. Illumination:
Color: 0.002 Lux @(F1.5, AGC ON)
B/W: 0.0002 Lux @(F1.5, AGC ON)
0 Lux with IR
• Smart Tracking
• Smart Detection
• 200m IR distance
• Optional wiper(-W)
• Hi-PoE / 24VAC power supply
• Support H.265+/H.265 video compression
• Support Rapid Focus
• Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection
• IP67, IK10
Camera | ||
---|---|---|
Image Sensor: | 1/1.8" progressive scan CMOS | |
Effective Pixels: | 1920(H)x1080(V) | |
Signal System: | PAL/NTSC | |
Minimum Illumination: | Color: 0.002 Lux @(F1.5, AGC ON) B/W: 0.0002 Lux @(F1.5, AGC ON) 0 Lux with IR |
|
AGC: | Auto/Manual | |
BLC: | ON/OFF | |
HLC: | Support | |
Smart defog: | Support | |
WDR: | 120dB | |
Shutter Time: | 50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s | |
Day& Night: | ICR | |
Digital Zoom: | 16X | |
Privacy Masking: | 24 privacy masks programmable | |
Auto Focus: | Auto / Semi-automatic / Manual |
Lens | ||
---|---|---|
Focal Length: | 5.7 mm to 205.2 mm, 36× Optical | |
Zoom Speed: | Approx. 4.4 s (optical lens, wide-tele) | |
Angle of View: | Horizontal field of view: 59.8° to 2.0° (wide-tele) Vertical field of view: 33.6° to 1.1° (wide-tele) Diagonal field of view: 68.6° to 2.3° (wide-tele) |
|
Minimum Working Distance: | 10-1500mm(Wide-Tele) | |
Aperture Range: | F1.5~F4.5 |
Pan & Tilt | ||
---|---|---|
Pan Range: | 360°endless | |
Pan Speed: | Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s | |
Tilt Range: | -20°~90°(Auto Flip) | |
Tilt Speed: | Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s | |
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
Number of Preset: | 300 | |
Patrol: | 8 patrols, up to 32 presets per patrol | |
Pattern: | 4 patterns, with the recording time not less than 10 minutes per pattern | |
Power-off Memory: | Support | |
Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan | |
PTZ Position Display: | ON/OFF | |
Smart-tracking: | Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger | |
Wiper: | Optional |
Infrared | ||
---|---|---|
IR irradiation distance: | 200m | |
IR irradiation angle: | Adjustable by zoom |
Alarm | ||
---|---|---|
Alarm Input: | 7 Inputs | |
Alarm Output: | 2 | |
Alarm Actions: | Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel |
Network | ||
---|---|---|
Ethernet: | 10Base -T, /100Base-TX, RJ45 Connector | |
Main Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720), 50fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720), 60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|
Sub Stream: | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) | |
Third Stream: | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) 60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) |
|
Video Compression: | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG |
|
ROI encoding: | Support | |
Audio Compression: | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM | |
Audio Mode: | OFF/Audio input/Audio output | |
No. of Simultaneous Users: | Up to 20 users | |
Three-Stream: | Support | |
Mini SD Card: | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB | |
Security Measures: | User authentication (ID and PW), Host authentication (MAC address) IP address filtering |
Client GUI | ||
---|---|---|
Camera Control: | Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode | |
Date & Time Display: | Time: Week: Date, 6 formats on the Client | |
Client: | Support iVMS-4200 | |
Web Browser: | IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 + |
General | ||
---|---|---|
RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
Power Consumption: | 24 VAC (Max. 60 W) Hi-PoE (Max. 50 W) |
|
Working Temperature/Humidity: | -40°C to 70°C (-40°F to 158°F) | |
Protection Level: | IP67 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection | |
Dimensions: | Φ 266.6 mm × 410 mm (Φ 10.50" × 16.14") | |
Weight (approx.): | 8kg (approx.17.64lb) |
