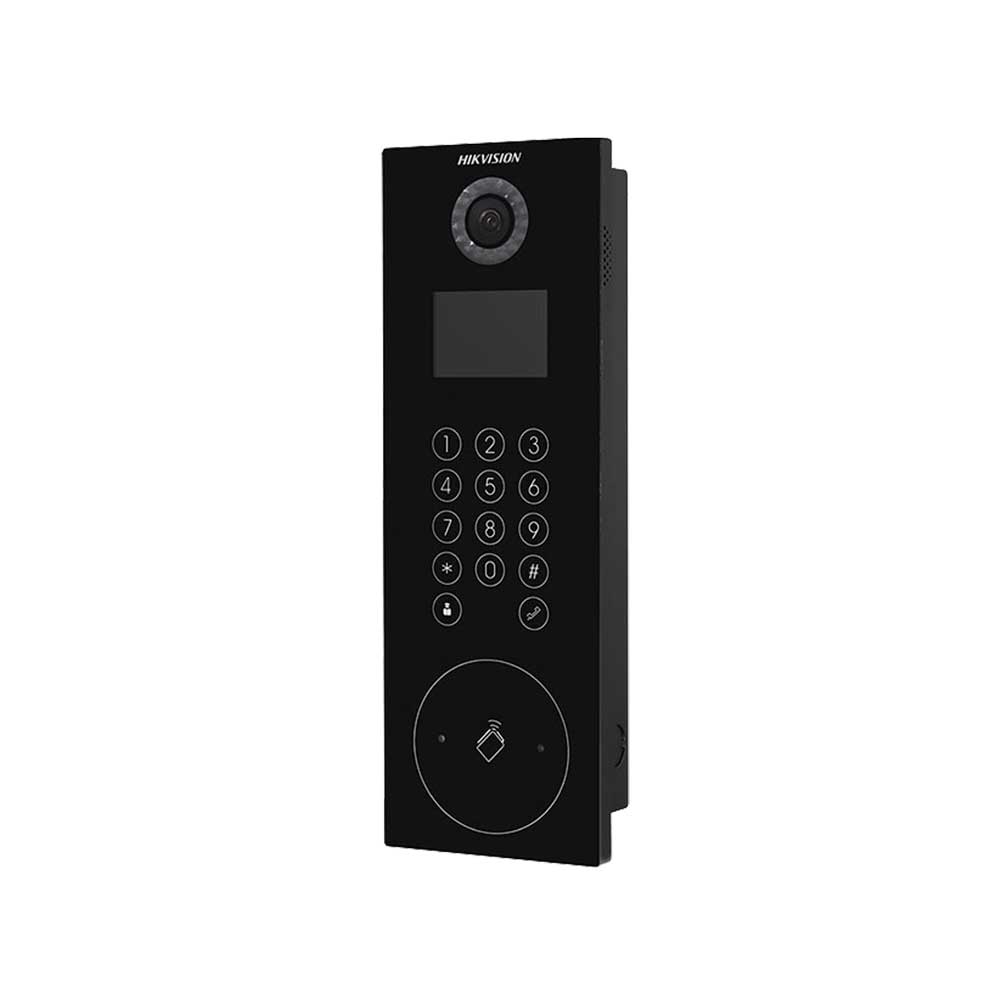

DS-KD8102-V
Water Proof Door Station D Series
Video intercom function
Access control function
Issues cards via door station, up to Max. 2500 cards, via outer door station, up to 50000 cards
Card readers supported
Self-adaptive visible light supplement
Access control function
Issues cards via door station, up to Max. 2500 cards, via outer door station, up to 50000 cards
Card readers supported
Self-adaptive visible light supplement
System Parameters | ||
---|---|---|
Processor: | High-Performance Embedded SOC Processor | |
Operation System: | Embedded Linux Operation System |
Display Parameters | ||
---|---|---|
Display Screen: | 3.5-Inch Colorful TFT LCD | |
Display Resolution: | 480 × 320 | |
Operation Method: | Capacitive Touch Keypad | |
Operation interface: | LCD Display, Easy Menu |
Video Parameters | ||
---|---|---|
Camera: | CMOS Low Illumination 1.3 MP HD Colorful Camera | |
Video Compression Standard: | H.264 | |
Resolution: | 1280 x 720 | |
Video frame rate: | PAL: 25 fps, NTSC: 30 fps |
Audio Parameters | ||
---|---|---|
Audio Input: | Built-in Omnidirectional Microphone | |
Audio Output: | Built-in Loudspeaker | |
Audio Compression Standard: | G.711 U | |
Audio Compression Rate: | 64 Kbps | |
Audio Quality: | Noise Suppression and Echo Cancellation |
Network Parameters | ||
---|---|---|
Ethernet: | 10/100/1000 Mbps Self-Adaptive Ethernet | |
Network Protocol: | TCP/IP, RTSP |
Access Control Parameters | ||
---|---|---|
Internal Card Reader: | Built-in IC Card Reader | |
External Card Reader: | Wiegand 26, Wiegand 34, or RS-485 IC Reader | |
Door Magnetic Detection: | Detects Door Magnetic Status |
IR Human Detection | ||
---|---|---|
Approaching Detection: | Supporting IR Detection, Vertical Distance: from 60 cm to 80 cm |
Light Supplement | ||
---|---|---|
Light Supplement Mode: | Visible Light Supplement |
Alarm Parameters | ||
---|---|---|
Alarm Input: | Door Magnetic Alarm, Tampering Alarm |
Device Interfaces | ||
---|---|---|
Network Interface: | 1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface | |
RS-485: | 1 RS-485 Half-Duplex Port | |
I/O Input: | 8 | |
I/O Output: | 4 | |
Wiegand: | 1 Wiegand Port for Accessing Wiegand IC Card Reader | |
USB : | 1 USB 2.0, Supporting U-Disk |
General | ||
---|---|---|
Material: | Plastic | |
Power Supply: | 12 VDC | |
Power Consumption: | ≤15 W | |
Certification: | FCC, IC, CE, C-TICK, ROHS, REACH, WEEE | |
Working Temperature: | -40° C to +60° C (-40° F to 140° F) | |
Working Humidity: | 10% to 90% | |
IP Protection Level: | IP65 | |
Dimensions(L × W × H): | 418 mm × 145 mm × 61 mm (16.5" × 5.7" × 2.4") |
