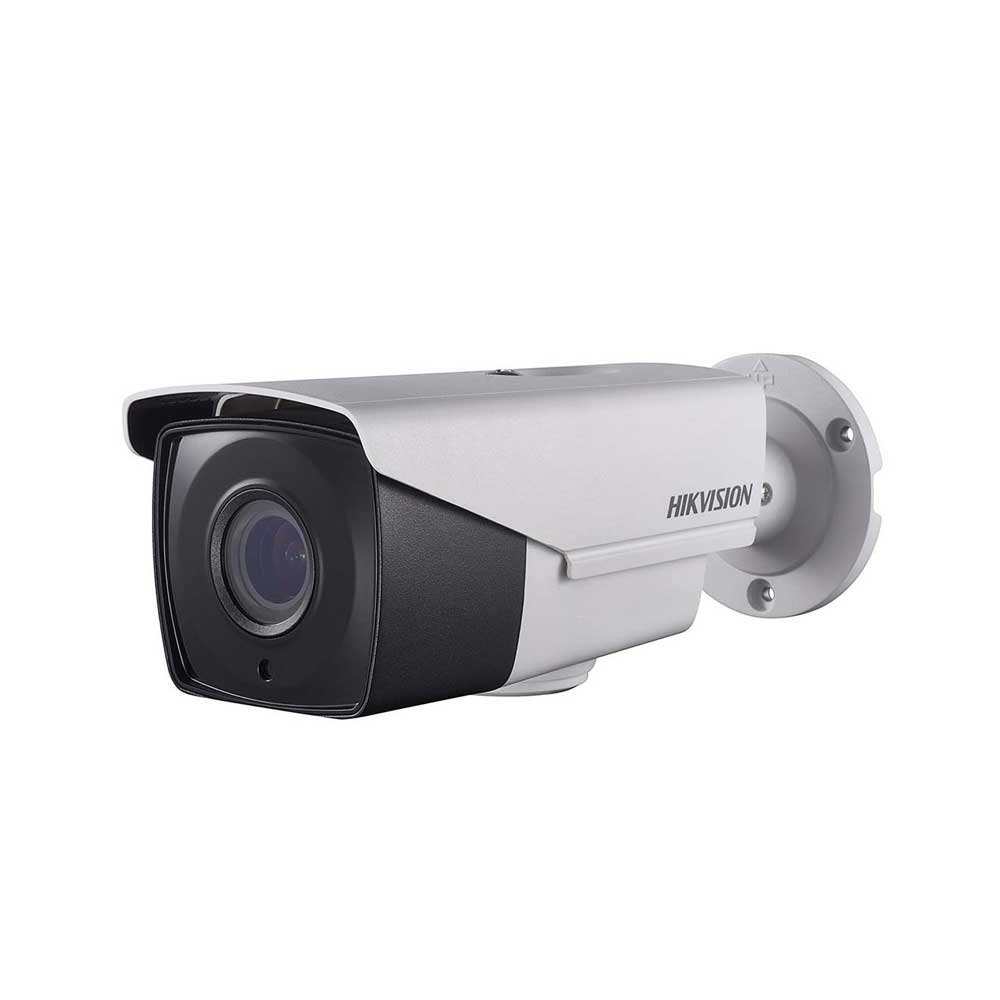

DS-2CE16D9T-AIRAZH
HD1080P WDR Motorized VF Bullet Camera
• 2 Megapixel high-performance CMOS
• Analog HD output, up to 1080P resolution
• 5-50mm motorized vari-focal lens,auto focus
• True Day/Night
• OSD menu, 3D DNR, Smart IR
• True WDR, up to 120dB
• Up to 110m IR distance
• IP66 weatherproof
• Up the Coax(HIKVISION-C, Pelco-C Protocol)
• Analog HD output, up to 1080P resolution
• 5-50mm motorized vari-focal lens,auto focus
• True Day/Night
• OSD menu, 3D DNR, Smart IR
• True WDR, up to 120dB
• Up to 110m IR distance
• IP66 weatherproof
• Up the Coax(HIKVISION-C, Pelco-C Protocol)
Camera | ||
---|---|---|
Image Sensor: | 2MP CMOS Image Sensor | |
Signal System: | PAL/NTSC | |
Effective Pixels: | 1944(H)×1092(V) | |
Min. Illumination: | 0.01Lux @ (F1.2,AGC ON),0 Lux with IR | |
Shutter Time: | 1/25(1/30) s to 1/50,000 s | |
Lens: | 5-50mm motorized VF lens, Angle of view: 59.8°-6.2° | |
Adjustment Range: | Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360° | |
Day& Night: | IR cut filter with auto switch | |
Wide Dynamic Range: | 120dB | |
Video Frame Rate: | 1080p@25fps/1080p@30fps | |
HD Video Output: | 1 Analog HD output | |
Synchronization: | Internal Synchronization | |
CVBS Output: | 1Vp-p Composite Output(75Ω/BNC) | |
S/N Ratio: | More than 62 dB | |
Up the Coax: | Support |
Menu | ||
---|---|---|
Camera ID: | On/off (15 characters, position programmable) | |
Auto White Balance: | ATW/ AWC-SET/ Indoor/ Outdoor/ Manual | |
Private Mask: | On/Off, maximum 8 zones | |
Motion Detection: | On/Off, maximum 4 zones | |
BLC: | On/Off | |
AGC: | Support | |
Anti-flicker: | On/ Off | |
Language: | English/Chinese | |
Function: | Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel correction, SMART D-ZOOM |
|
Scene: | Indoor, Outdoor, Indoor1, LOW-LIGHT |
General | ||
---|---|---|
Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
Power Supply: | 12 VDC±15%, 24 VAC±15% | |
Power Consumption: | Max. 20W | |
Weather Proof: | IP66 | |
Heater: | Support | |
IR Range: | Up to 120m | |
Communication : | Up the coax Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output) |
|
Dimension: | 313.5*100.8*107.3 | |
Weight: | 1700g |
