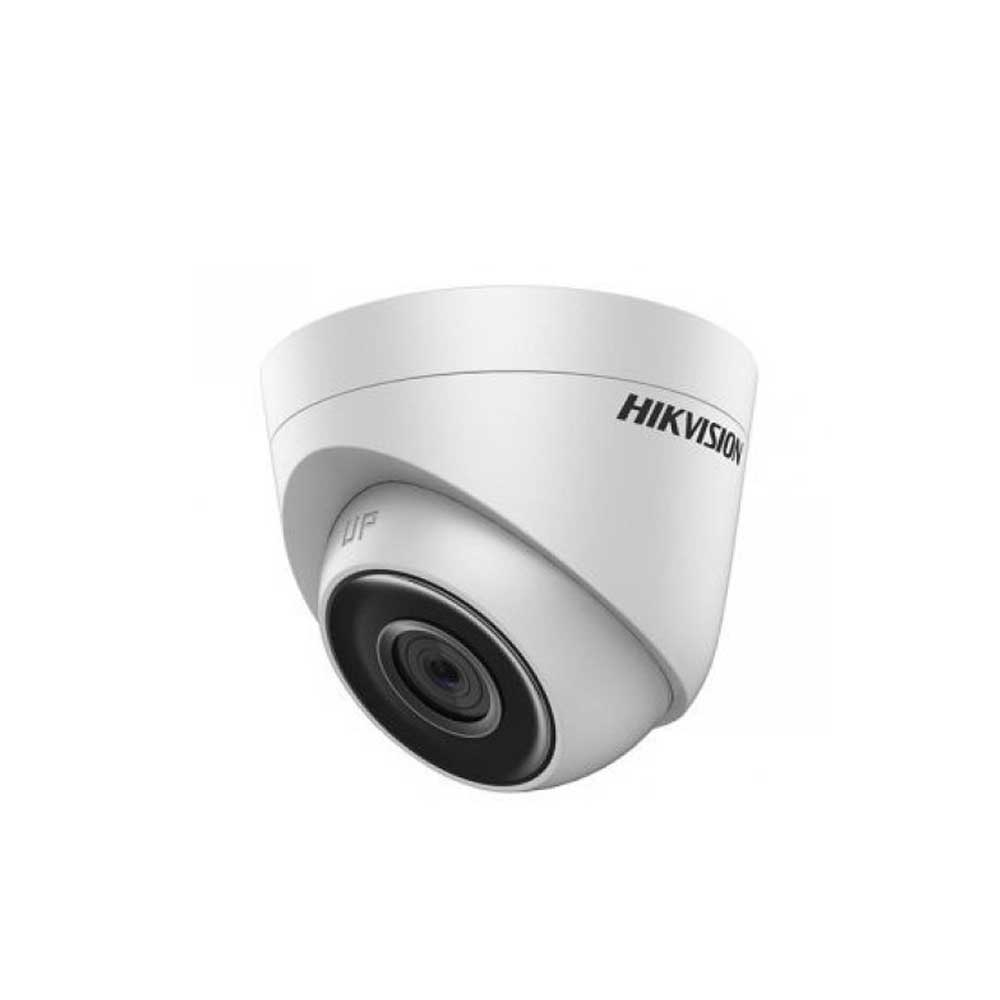

DS-2CE56F1T-ITP

3MP EXIR Turret Camera

 3 Megapixel high-performance CMOS
 Analog HD output, up to 3MP resolution
 2.8mm, 3.6mm, 6mm, 8mm, 12mm, 16mm lens
 True Day/Night
 OSD menu, DNR, Smart IR
 EXIR technology, up to 40m IR distance
 Up the Coax(HIKVISION-C)

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

*Camera*
Image Sensor	3MP CMOS Image Sensor
Effective Pixels	2052(H)*1536(V)
Min. illumination	0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time	1/25s to 1/50,000s
Lens	2.8mm, 3.6mm, 6mm, 8mm, 12mm, 16mm lens @ F1.2
Lens Mount	M12
Day & Night	ICR
Angle Adjustment	Pan: 0° - 360°; Tilt: 0° - 75°; Rotate: 0° - 360°
Synchronization	Internal Synchronization
Video Frame Rate	1920×1536@18fps
HD Video Output	1 Analog HD output
S/N Ratio	＞62dB
*Menu*
AGC	Support
D/N Mode	Color/BW/SMART
White Balance	ATW/ MWB
BLC	Support
Functions	Wide Dynamic Range, Digital noise reduction, Mirror, SMART IR
*General*
Operating Conditions	-40 °C – 60 °C (-40 °F – 140 °F), Humidity 90% or less (non-condensing)
Power Supply	12 VDC±15%
Power Consumption	Max. 5W
IR Range	Up to 40m
Communication	Up the coax, Protocol: HIKVISION-C (TVI output)
