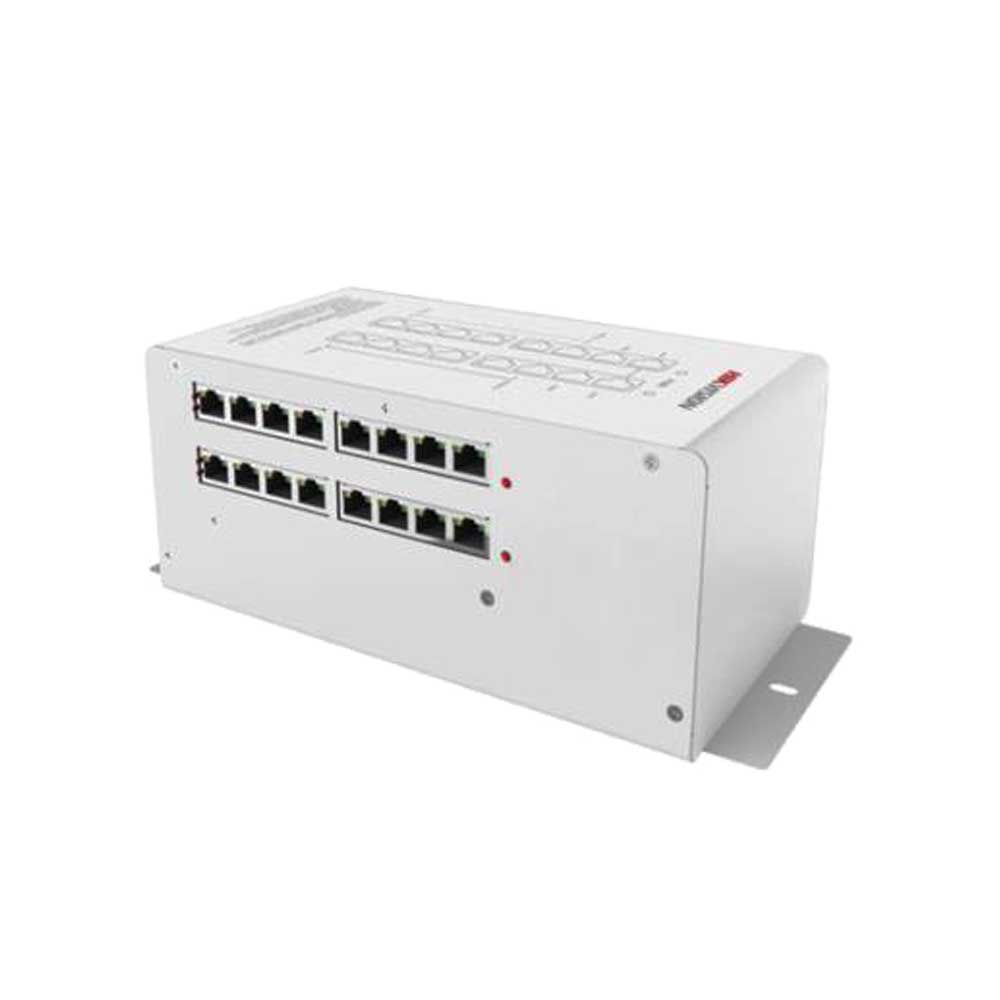

DS-KAD612

Video/Audio Distributor

 Built-in 24 VDC voltage-stabilized switching mode power supply
 Sixteen RJ-45 interfaces, including twelve adaptive 10/100 Mbps LAN interfaces
supporting network cable powering and four adaptive 10/100 Mbps cascading LAN
interfaces
 IEEE802.3, IEEE802.3u, IEEE802.3x
 Storing and forwarding function
 VLAN technique
 Up to 4 distributors can be cascaded
 (Optional) Suitable for wall mounting

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Network Parameters
Interface number:		Sixteen 10/100 Mbps Interfaces
Interface type:		RJ-45, Full/Half-Duplex, MDI/MDI-X Self-Adaptive
Standard:		IEEE802.3, IEEE802.3u, IEEE802.3x
Processing type:		Storing and Forwarding
Flow control:		IEEE802.3x (Full-Duplex), Back Pressure (Half-Duplex)
Priority queue:		Four
MAC address list:		8K
Internal buffer:		1 Mbit

General
Power Supply:		220V AC
Power Consumption:		<6 W
Certification:		FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Working Temperature:		-30°C to 70°C (-22°F to 158°F)
Working Humidity:		5% to 95%, No Condensation
Dimensions(L × W × H):		268.6 mm × 118.4 mm × 102.2 mm (10.6" × 4.7" × 4.0")
