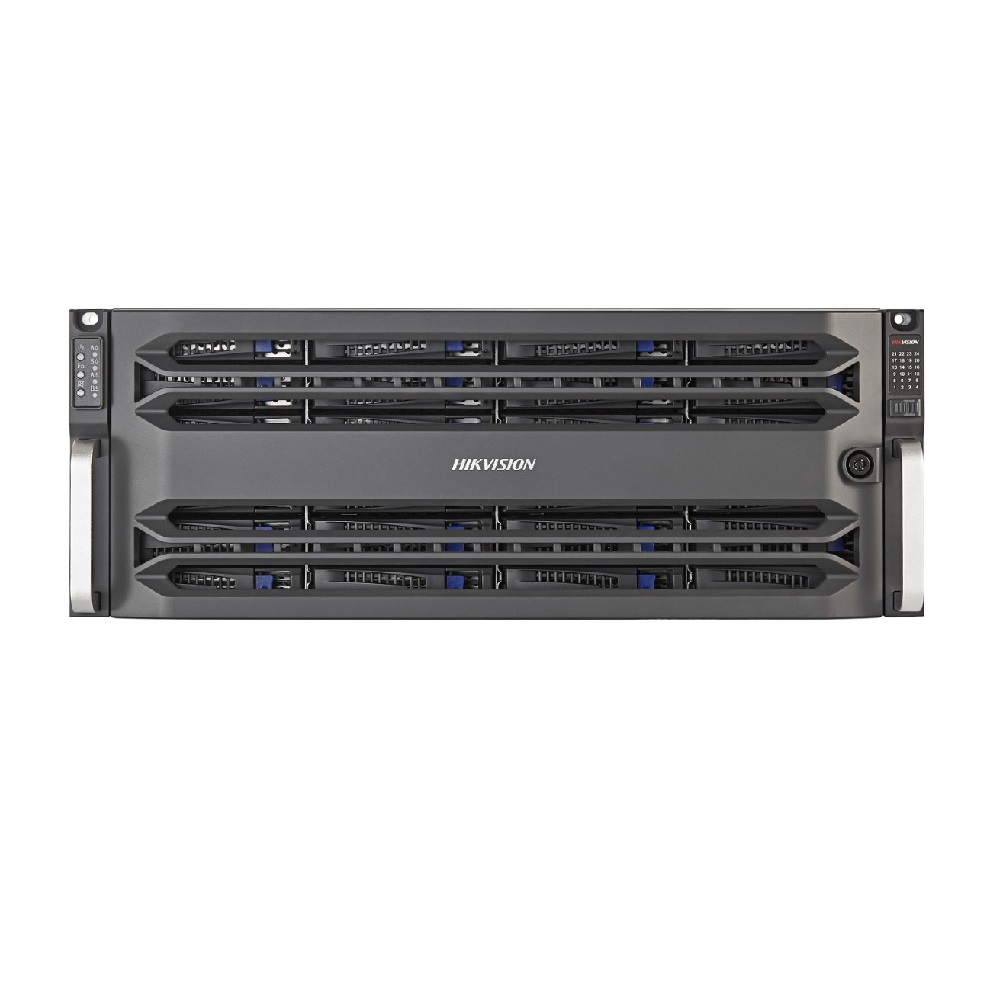

DS-AT1000S/480

24-slot Cost-efficient Super Capacity Storage

24*20 TB IoT SMR enterprise HDD
IoT fully sealed helium HDD technology
Surveillance-specialized direct storage (Direct Streaming mode)
Highly cost efficient, safe and reliable
Energy saving and space saving
Easy operation and maintenance
SMR HDD providing 5-year warranty

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Network
ProtocolRTSP, ONVIF, HKSDK

External Interface
USB2 × USB 3.0, 2 × USB 2.0
VGASupported (VGA and RS-232 interface cannot be used at the same time)
Data Network Interface4, 1000 Mbps Ethernet interface
Management1, 1000 Mbps Ethernet interface
MiniSAS Interface1
COM1, RS-232

Storage
HDD Slot24
Interface/CapacitySATA, Up to 20TB
RAIDRAID5,RAID6,iRAID

Performance
Direct Streaming Mode: Video (2 Mbps) + Picture400-ch

Hardware
Processor64-bit multi-core processor
Cache16 GB, extendable to 32 GB

Storage Management
Disk ManagementDisk detection pre-alarm and repair
Logical Volume ManagementRecording volume management

Recording Management
Recording ModeContinuous recording, manual recording, and alarm recording
Video ProtectionVideo lock, video loss alarm
Searching ModeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information
Downloading ModeLog in storage system to search, play, and download videos. Support searching videos by time, event type, and smart information

Device Maintenance
Management ModeGUI based on web, serial port CLI, platform
Alarm ModeAudio, indicator, GUI

HDD
HDD ModelHikvision,HK7220AH,20T;

General
Power Supply100 to 240 VAC/47 to 63Hz, redundant power supply
Consumption(With HDDs)≤ 369.8 W
Environment TemperatureWorking: +5 °C to +40 °C (41 °F to 104 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F)
HumidityWorking: 20% to 80%RH (non-condensing/frozen) Storing: 5% to 90%RH (non-condensing/frozen)
Dimensions(W × D × H)445 × 746 ×175 mm (17.5 × 29.4 × 6.9 inch)
Weight (Without HDDs)≤ 40 kg (88.2 lb)
