Chi Tiết Sản Phẩm

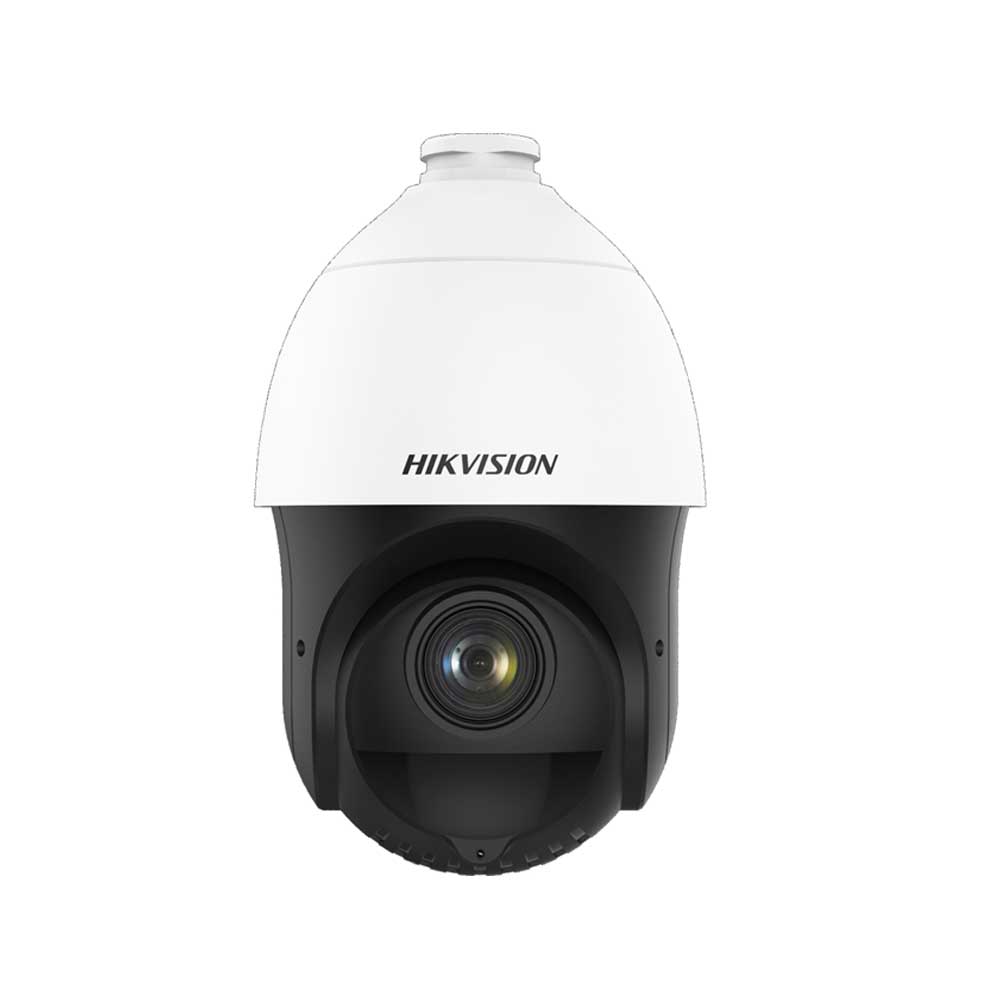

DS-2AE5223TI-A
HD1080P Turbo IR PTZ Dome Camera
• 2MP CMOS Image Sensor
• 1920x1080
• 23X optical zoom, 16X digital zoom
• DWDR
• Up to 150m IR distance
• 3D intelligent positioning
• Turbo HD and CVBS dual output
• 1920x1080
• 23X optical zoom, 16X digital zoom
• DWDR
• Up to 150m IR distance
• 3D intelligent positioning
• Turbo HD and CVBS dual output
Camera | ||
---|---|---|
Image Sensor: | 1/2.8" Progressive Scan CMOS | |
Effective Pixels: | 1920(H)x1080(V) | |
Signal System: | PAL/NTSC | |
Minimum Illumination: | F1.4, AGC On: Color: 0.05lux, B/W: 0.005lux | |
White Balance: | Auto / Manual / ATW / Indoor / Outdoor | |
AGC: | Auto/Manual | |
BLC: | ON/OFF | |
WDR: | Support | |
Shutter Time: | PAL: 1-1/10,000s NTSC: 1-1/10,000s |
|
Day& Night: | ICR | |
Digital Zoom: | 16x | |
Privacy Masking: | 8 privacy masks programmable | |
Auto Focus: | Auto / Semi-automatic / Manual |
Lens | ||
---|---|---|
Focal Length: | 4-92mm, 23x | |
Zoom Speed: | Approx.3.0s(Optical Wide-Tele) | |
Angle of View: | 49-2.2 degree (Wide-Tele) | |
Minimum Working Distance: | 10-1000mm(Wide-Tele) | |
Aperture Range: | F1.4~F3.5 |
Pan & Tilt | ||
---|---|---|
Pan Range: | 360°endless | |
Pan Speed: | Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s | |
Tilt Range: | -15°-90° (Auto Flip ) | |
Tilt Speed: | Tilt Manual Speed: 0.1°~120°/s, Tilt Preset Speed: 200°/s | |
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
Number of Preset: | 256 | |
Patrol: | 8 patrols, up to 32 presets per patrol | |
Pattern: | 4 patterns, with the recording time not less than 10 minutes per pattern | |
Power loss recovery: | Support | |
Park Action: | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan | |
PTZ Position Display: | ON/OFF | |
Freeze Frame: | Support |
Alarm | ||
---|---|---|
Alarm Input: | 2 | |
Alarm Output: | 1 |
Input & Output | ||
---|---|---|
Turbo HD Output: | 1 turbo HD1080p output, BNC | |
Monitor Output: | 1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC |
General | ||
---|---|---|
RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
Menu Language: | English / Chinese | |
Power Supply: | 24V AC | |
Power Consumption: | Max. 20W (Heater On), Max. 12W(Heater Off) | |
Working Temperature/Humidity: | -30 °C-65°C(-22°F-149°F) 90% or less |
|
Protection Level: | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
|
Dimensions: | Φ185mm)×330(mm) (Φ7.28”×12.99”) | |
Weight (approx.): | 4kg (8.81Ibs) |
