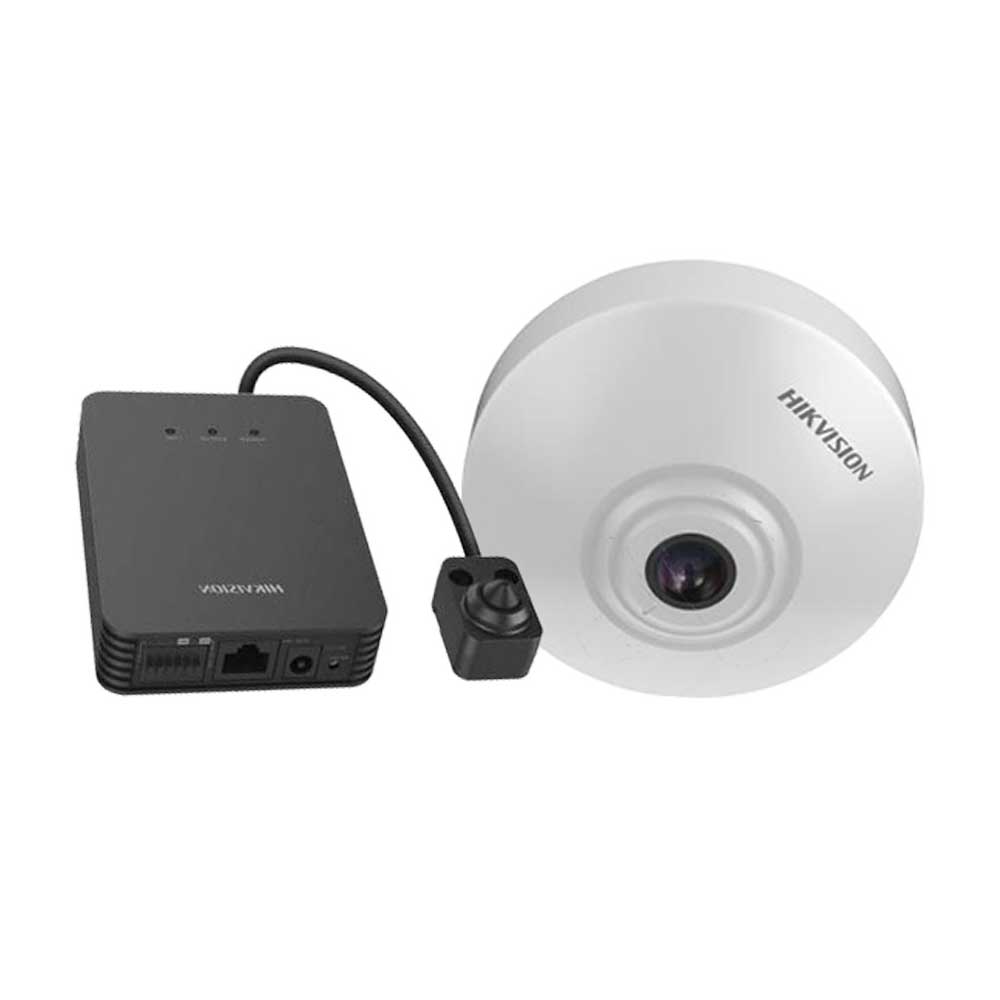

iDS-2CD6412FWD/C
People couting
Support statistical traffic report based on configurable time interval (day/week/month/year).
Up to 1.3 Megapixel high resolution, 1280x960 up to 30fps real-time video
1/3-inch progressive scene CMOS sensor
Support Smart Codec, high bandwidth efficiency, low time delay and optimized bit rate.
Support 120dB WDR and 3D DNR.
Support on-board storage, Micro SD/SDHC/SDXC up to 128GB, card not included.
Triple video streams for different uses.
Defog, Electronic Image
Camera |
|
Image Sensor |
1/3’’ Progressive Scan CMOS |
Min. Illumination |
Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON) B/W: 0.001 Lux @ (F1.2, AGC ON), 0.0028 Lux @ (F2.0, AGC ON) |
Shutter Speed |
1/1s ~ 1/100,000s |
Slow Shutter |
Support |
Lens |
2.1mm/F2.2, horizontal FoV: 115ºor 2.8mm/F2.0, horizontal FoV: 92.5º |
Day & Night |
Electronic |
DNR |
3D Digital Noise Reduction |
WDR |
120dB Wide Dynamic Range |
Lens Cable Length |
2 meters, 8 meters optional |
Compression Standard |
|
Video Compression |
H.264 / MJPEG / MPEG4 |
H.264 Type |
Baseline Profile / Main Profile / High Profile |
Video Bit Rate |
32 Kbps – 16 Mbps |
Audio Compression |
G.711/G.722.1/G.726/MP2L2 |
Audio Bit Rate |
64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
Image |
|
Max. Resolution |
1280 x 960 |
Frame Rate (main stream) |
50Hz: 25fps(1280 x 960), (1280 x 720) 60Hz: 30fps (1280 x 960), (1280 x 720) |
Frame Rate (sub stream) |
25/30fps (VGA, 4CIF, CIF) |
Frame Rate (third stream) |
50Hz: 25fps(1280 x 960) 60Hz: 30fps (1280 x 960) |
Image Setting |
Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
BLC |
Yes, zone configurable |
Defog |
Yes |
HLC |
Yes |
EIS |
Yes |
Day/Night Switch |
Auto/Schedule/Triggered by Alarm In |
Picture Overlay |
LOGO picture can be overlaid on video with 128x128 24bit bmp format |
RoI |
4 fixed regions can be set or dynamic analysis |
Interface |
|
Audio Interface |
1 x 3.5mm audio input (Mic in / Line in) / output external interface |
Communication Interface |
1 x RJ45 10M/100M Ethernet interface/1 RS232/1 RS-485 |
Alarm I/O |
1/1 |
Network |
|
Network Storage |
NAS (NFS,SMB/CIFS) |
Alarm Trigger |
Intrusion detection, line crossing detection, audio exception detection, defocus detection, motion detection, face detection, dynamic analysis, tampering alarm, network disconnect, IP address conflicts, storage full, storage error |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
Standard |
ONVIF, ISAPI |
Common features |
Reset, flickerless, three streams, heartbeat, mirror, password protection, video masking, watermark, anonymous login, IP address filtering |
People Counting |
|
People Counting |
People entering and exiting data can be accounted, displayed and exported. (The people counting data is saved in the FLASH ) |
People counting data can be displayed on screen in real time and exported day/week/month/year excel chart (with SD card/NAS/Storage Server/Platform) |
|
General |
|
Operating Conditions |
-30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing) |
Power Supply |
12 V DC ± 10% |
Power Consumption |
Max. 7.5W |
Dimensions |
Main unit: 107.6mm x 78mm x 33.5mm Lens: 48.7mm x 30.7mm x 31.5mm Lens cover : Φ95 x 31.5mm |
Weight |
770g (with 8 meters cable) |
