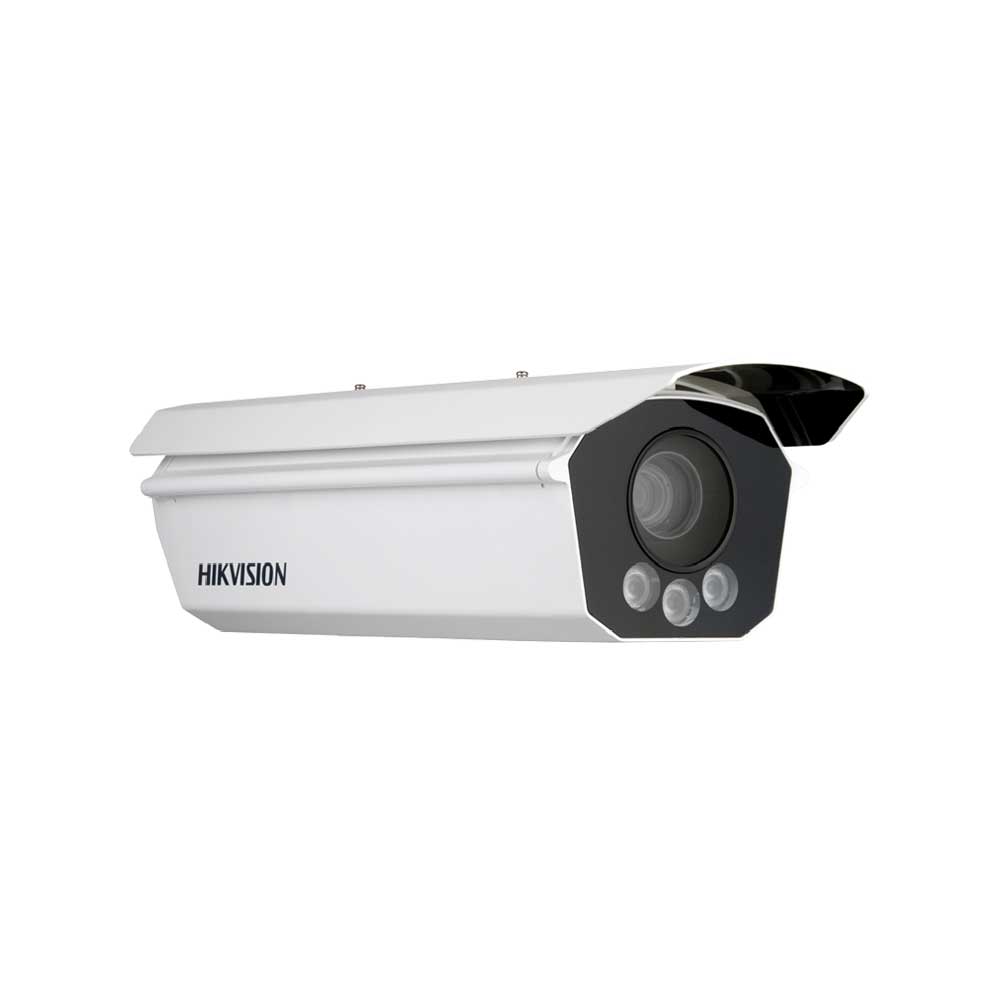

iDS-TCE900-AI/16/H1

Highly Performing ANPR Camera

Superiority
 Dedicated camera for ANPR
 HD resolution
 Integrated lamb
 Professional shutter speed control
 Built in ANPR engine, equipped with deep learning algorithm
 Multiple detection & recognition
Application
 Vehicle Model Detection
 Vehicle Color Detection
 Run the red light
 Wrong way driving
 Illegal lane changing
 Driving against guidance
Scenarios
 Intersection
 T junction
 Other red light road

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Specifications

	iDS-TCE300-A6I/1140	DS-TCE900-AI/16
*Software features and Performance*
Working distance[m]	18m-20m (with lens 11mm - 40mm)	20m (with lens 16mm)
Coverage	1 ~ 2 lanes	2 ~ 3 lanes
LPR Region	Mid-East, Africa, Asia-Pacific, America, Europe, Russian-speaking Countries
Supplement Light	Strobe light/ Burst light
OCR	ANPR engine on board
Frame rate	25 fps
Classification	Support (Car/minibus/Bus/Truck/non-motorized Vehicle)
Vehicle Color	Support
Vehicle Model	Support
Capture Speed Range	5 ~ 250km/h
Compression	H.265/H.264/MJPEG
Streaming	RTSP
*Configuration*
Web Server	Support
TCP/IP Server	SDK
Date and Hour(Synchronization)	NTP/GPS/Manual
Software Update	Web Interface/ SDK
*Data Transmission***
FTP	FTP; Multiple FTP
Standard Protocols	TCP/IP, HTTP, HTTPS, FTP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IPv6, UDP
Serial Port	3 RS-485 interface, 1 RS-232 interface
Data Outputs	SDK/ISAPI
Trigger Mode
Video	Continuous processing with automatic vehicle detection, even without plate.
External	I/O; RS-485
*System*
ANPR Camera	3MP (1/1.8'' GMOS), max. 2048×1536	9MP (1'' GMOS), max. 4096x2160
Illuminator	3 LED Lamps(strobe), angel: 40°, up to 30m for fill-in light on license plate
Programming Interface	ONVIF (Version 2.1), ISAPI
Lens	CS-Mount, 11mm-40mm C-Mount(with adapter ring needed)	CS-Mount, 16mm C-Mount(with adapter ring needed)
Operating System	Linux
Digital I/O	4-ch input, 6-ch output
Connector	Waterproof circular connector
IP Protection	IP54
Ethernet	2 RJ45 10M/100M/1000M Ethernet port
Storage	TF card up to 128G
GPS	Optional
Technical Data
Certifications	CE

Operating &Storage Temperature	-30 °C ~ 70 °C(-22°F to +158°F )
Operating & Storage Humidity	5%~95%@40°C (104°F ), non-condensing
Dimensions	180mm(W)×152.7mm(H)×636mm(D)(7.09×6.01×25.04 inch)
Weight[kg]	6.5±0.5kg(14.3lb±1.1lb)
Power supply voltage	100VAC ~ 240VAC；Frequency: 48Hz ~ 52Hz
Power consumption	<30W
