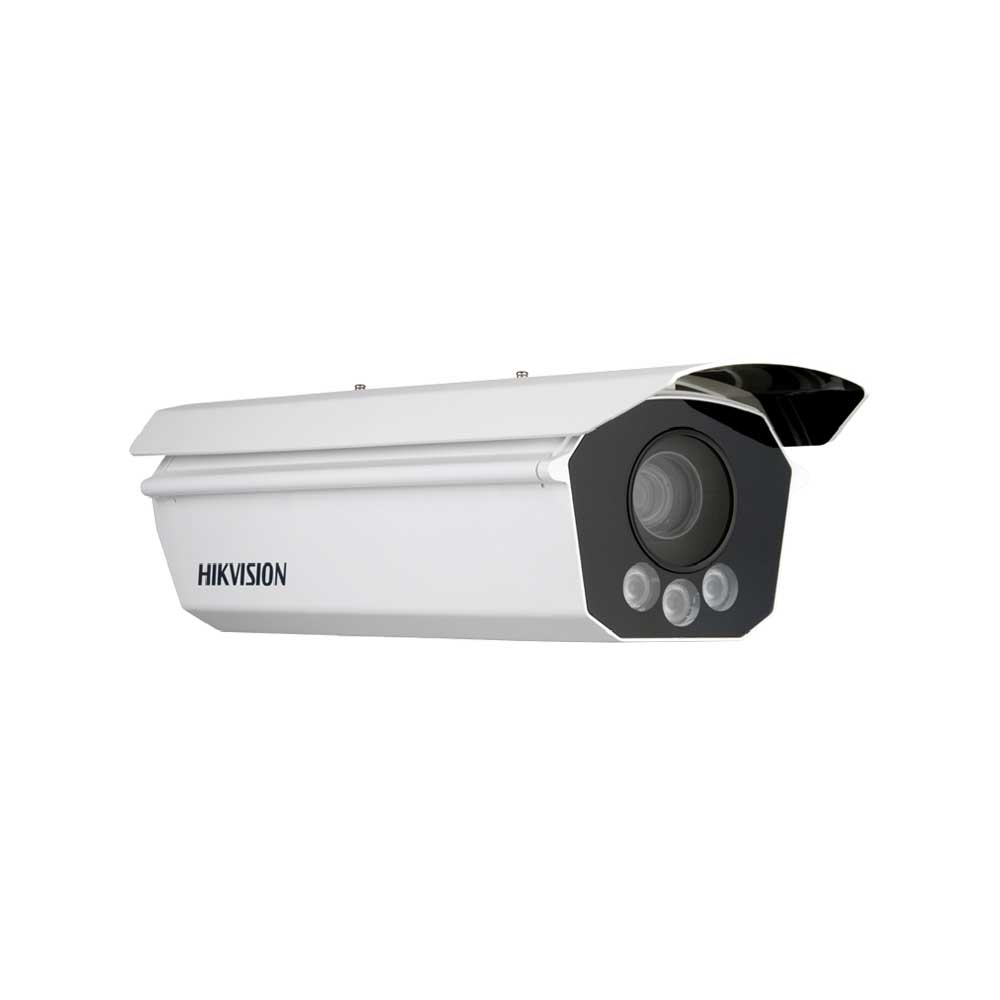

iDS-TCV900-A/25/H1

Highly Performance ANPR Camera

Superiority
 Dedicated camera for ANPR
 HD resolution
 Professional shutter speed control
 Built-in ANPR engine, equipped with deep learning algorithm
 Multiple detection and recognition
 Vehicle type recognition
 Vehicle color recognition
 Vehicle Manufacturer
 Wrong-way driving detection
 Radar speed measurement
Application
 Vehicle control
 Traffic monitoring
 Security
Scenarios
 Highway
 Tunnel
 Urban road

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Specifications
Model	iDS-TCV300-A6I/1140/H1	iDS-TCV900-AI/25/H1
*Software Features and Performance*
Working Distance	Up to 35 m (with 11 to 40 mm focal length)	Up to 27 m (with 25 mm focal length)
Coverage	1 lane	2~3 lanes
Detection Sensitivity	99%
LPR Accuracy	> 97%
LPR Region	Mid-East, Africa, Asia-Pacific, India, America, Europe, Russian-Speaking Countries
Supplement Light	Strobe light/Xenon flash light
OCR	On-board ANPR engine
Frame rate	50 fps	25fps
Vehicle Type	Car/Van/Bus/Truck/Others
Vehicle Color	Recognizable at daytime only
Vehicle Manufacturer	Support
Capture Speed Range	5 to 250 km/h
Video Compression	H.265/H.264/MJPEG
Streaming	RTSP
*Configuration*
Web Server	Support
TCP/IP Server	SDK
Time Synchronization	NTP/GPS/Manually
Software Update	Web/SDK
*Data Transmission*
FTP	FTP, Multiple FTP
Standard Protocols	TCP/IP, HTTP, HTTPS, FTP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, IPv6, UDP
Serial Port	3 RS-485 ports, 1 RS-232 port
Data Output	SDK/ISAPI
*Trigger Mode*
By Video	Continuous video analysis with automatic vehicle detection, even without plate.
By External Interfaces	I/O, RS-485
*System*
ANPR Camera	3 MP (1/1.8'' GMOS), max. 2064 × 1544	9 MP (1'' GMOS), max. 4096 × 2160
Supplement Light	3 LED supplement lights (strobe) , angle: 40°, light supplement for license plate up to 30 m far away
Programming Interface	ONVIF (Version 2.1), ISAPI
Lens	CS-Mount, 11 to 40 mm horizontal field: 36.7~11.5°,vertical field:23.9°~7.6° C-Mount (with adapter ring needed)	CS-Mount, 25 mm horizontal field:41.12°, vertical field:31° C-Mount (with adapter ring needed)
Operating System	Linux
Digital I/O	4-ch inputs, 6-ch outputs
Connector	Waterproof circular connector
Protection Level	IP66
Communication Interface	2 RJ45 10M/100M/1000M self-adaptive Ethernet interfaces
Storage	TF card, up to 128 GB
Heating module	Support ,Build-in module
GPS	Optional
*Technical Data*
Certifications	CE, FCC
Operating & Storage Temperature	-30 °C to +70 °C(-22 °F to +158 °F)
Operating & Storage Humidity	5% to 95%@+40 °C (+104 °F), non-condensing
Dimensions (W × H × D)	180 × 152.7 × 636 mm (7.09 × 6.01 × 25.04 inch)
Weight	6.5 ± 0.5 kg (14.3 ± 1.1 lb)
Power Supply	100 to 240 VAC, frequency: 48 to 52 Hz
Power Consumption	< 30 W
