Chi Tiết Sản Phẩm

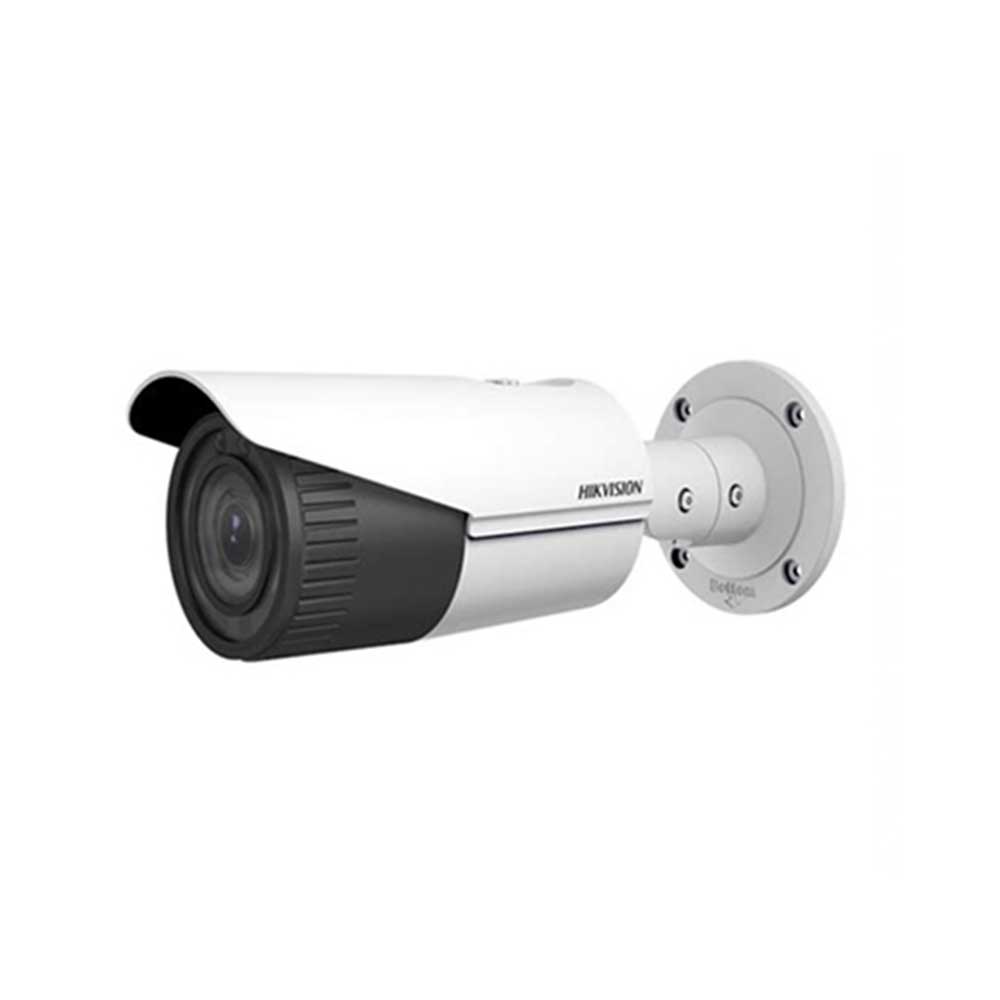

DS-2CD2621G0-IZS

2 MP IR VF Bullet Network Camera

 1/2.8" Progressive Scan CMOS
 1920 × 1080@30fps
 2.8 to 12 mm varifocal lens
 Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON);
 H.265+, H.265, H.264+, H.264
 120dB WDR
 2 Behavior analyses
 BLC/3D DNR/ROI
 Built-in microSD/SDHC/SDXC card slot, up to 128 GB

Camera

Image Sensor

1/2.8" Progressive Scan CMOS

Min. Illumination

Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON), 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Auto-Iris

No

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

120 dB

3-Axis Adjustment

Pan: 0° to 360°, tilt: 0° to 100°, rotation: 0° to 360°

Lens

Focal Length

2.8 to 12 mm

Aperture

F2.0

Focus

-Z: Auto

Without –Z: Manual

FOV

2.8 mm: horizontal FOV: 115°, vertical FOV: 62°, diagonal FOV: 136°

4 mm: horizontal FOV: 86°, vertical FOV: 47°, diagonal FOV: 103°

6 mm: horizontal FOV: 55°, vertical FOV: 31°, diagonal FOV: 62°

Lens Mount

Φ14

IR



IR Range

Up to 30 m

Wavelength

850nm

Compression Standard



Video Compression

Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 8 Mbps

Audio Compression (-S)

G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate (-S)

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Smart Feature-set



Behavior Analysis

Line crossing detection, intrusion detection

Face Detection

Yes

Region of Interest

1 fixed region for main stream


Max. Resolution

1920 × 1080

Main Stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)

60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Image Enhancement

BLC/3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser

Target Cropping

No

Day/Night Switch

Day/Night/Auto/Schedule/Triggered by alarm in (-S)

Network

Network Storage

Support built-in microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

General Function

One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Firmware Version

V5.5.6

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users

3 levels: Administrator, Operator and User

Client

iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Web Browser

IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

Interface



Audio (-S)

1 input (line in), 1 output (line out), mono sound

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Alarm (-S)

2 inputs, 2 outputs

Video Output (-S)

CVBS

On-board Storage

Built-in micro SD/SDHC/SDXC slot, up to 128 GB

SVC

H.264 and H.265 encoding support

Reset Button

Yes

Audio (-S)



Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

General

Operating Conditions

-30 °C to +60 °C (22 °F to +140 °F), humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, Φ 5.5 mm coaxial plug power

PoE (802.3af, class 3)

Power Consumption and Current

-Z:

12 VDC, 0.9 A, max. 11 W

PoE: (802.3af, 36V-57V), 0.4 A to 0.2 A, max. 12.9 W

Without –Z:

12 VDC, 0.6 A, max. 7W

PoE: (802.3af, 36V-57V), 0.3 A to 0.1 A, max. 9 W

Protection Level

IP67

Material

Metal

Dimensions

Φ 105 × 294.5 mm (Φ 4.1" × 11.6")

Weight

Camera: approx. 1050 g (2.3 lb.)

With package: approx. 1500 g (3.3 lb.)
