Chi Tiết Sản Phẩm

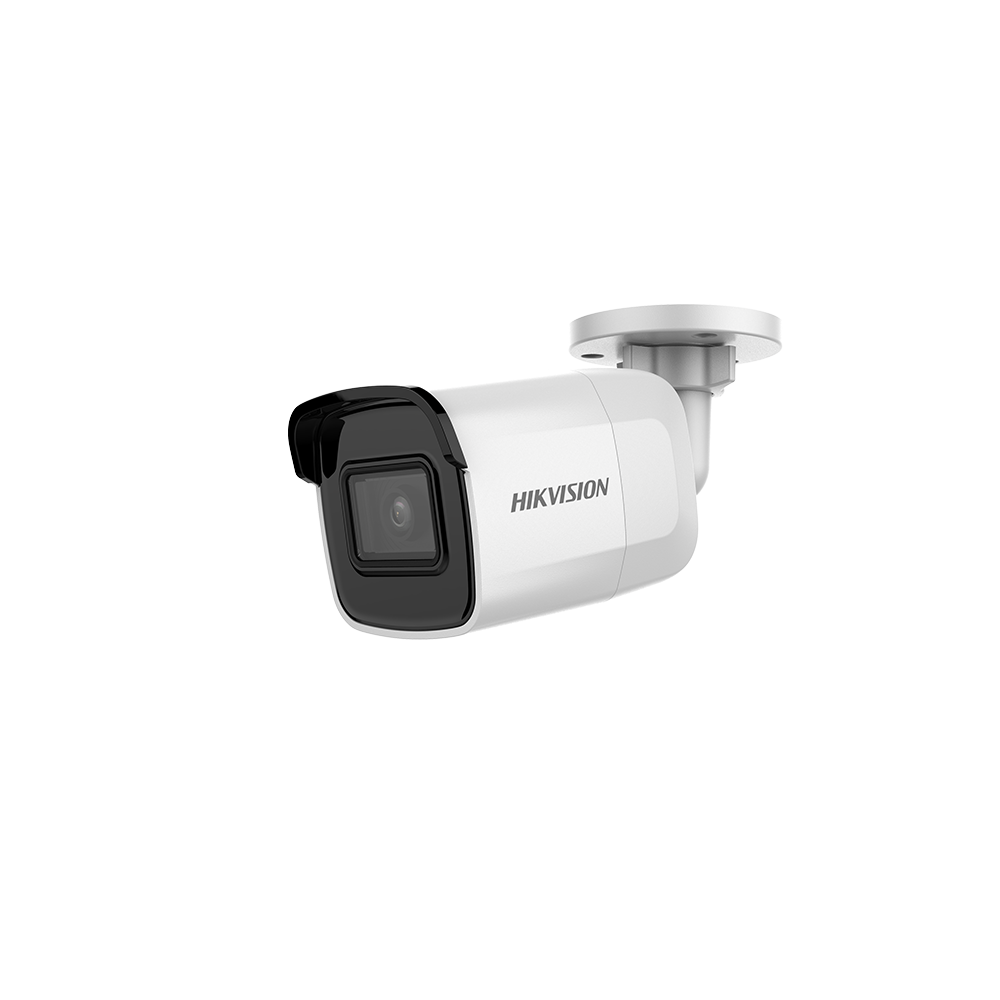

DS-2CD32T2G5-I

2 MP WDR Fixed Mini Bullet Network Camera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67)
  • Camera
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Min. IlluminationColor: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Day &NightIR Cut Filter
  • Wide Dynamic Range120 dB
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • DNR3D DNR
  • Lens
  • Lens2.8/4/6 mm
  • Auto-IrisNo
  • ApertureF2.0
  • FocusFixed
  • FOV2.8 mm, horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 136° 4 mm, horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102° 6 mm, horizontal FOV: 54.5°, vertical FOV: 31.3°, diagonal FOV: 62.3°
  • Lens MountM12
  • Illuminator
  • IR RangeUp to 30 m
  • Wavelength850 nm
  • Video
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub Stream50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
  • Video CompressionMain stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 8 Mbps
  • Smart Feature-Set
  • Behavior AnalysisLine crossing detection, intrusion detection
  • Region of InterestSupport 1 fixed region for main stream
  • Image
  • Image EnhancementBLC/3D DNR
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule
  • Wi-Fi
  • Protocol802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
  • Channel Bandwidth20/40 MHz
  • Security64/128-bit WEP, WPA/WPA2
  • Transfer Rate11b: 11 Mbps 11g: 54 Mbps 11n: up to 150 Mbps
  • Wireless Range50 m
  • Frequency Range2.412 GHz to 2.472 GHz
  • StandardIEEE802.11b, 802.11g, 802.11n
  • Approval
  • ProtectionIngress protection: IP67 (IEC 60529-2013)
  • Network
  • Network StorageSupport Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users. 3 levels: administrator, operator and user
  • ClientWired network: Hik-Connect, iVMS-4200, iVMS-5200, iVMS-4500 Wi-Fi: iVMS-4200, iVMS-5200, iVMS-4500
  • Web BrowserIE 8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
  • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Video OutputNo
  • On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Compression Standard
  • H.264+Main stream supports
  • H.265+Main stream supports
  • General
  • Firmware VersionV5.5.98
  • General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • ResetYes
  • Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, PoE: 802.3af, class 3
  • Power Consumption and Current12 VDC, 0.3 A, max. 4 W; PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 5.5 W
  • MaterialFront cover: plastic, back cover: metal
  • Dimensions69.7 mm × 67.9 mm × 171.4 mm (2.7" × 2.7" × 6.7")
  • Weight350 g (0.8 lb.)
