Chi Tiết Sản Phẩm

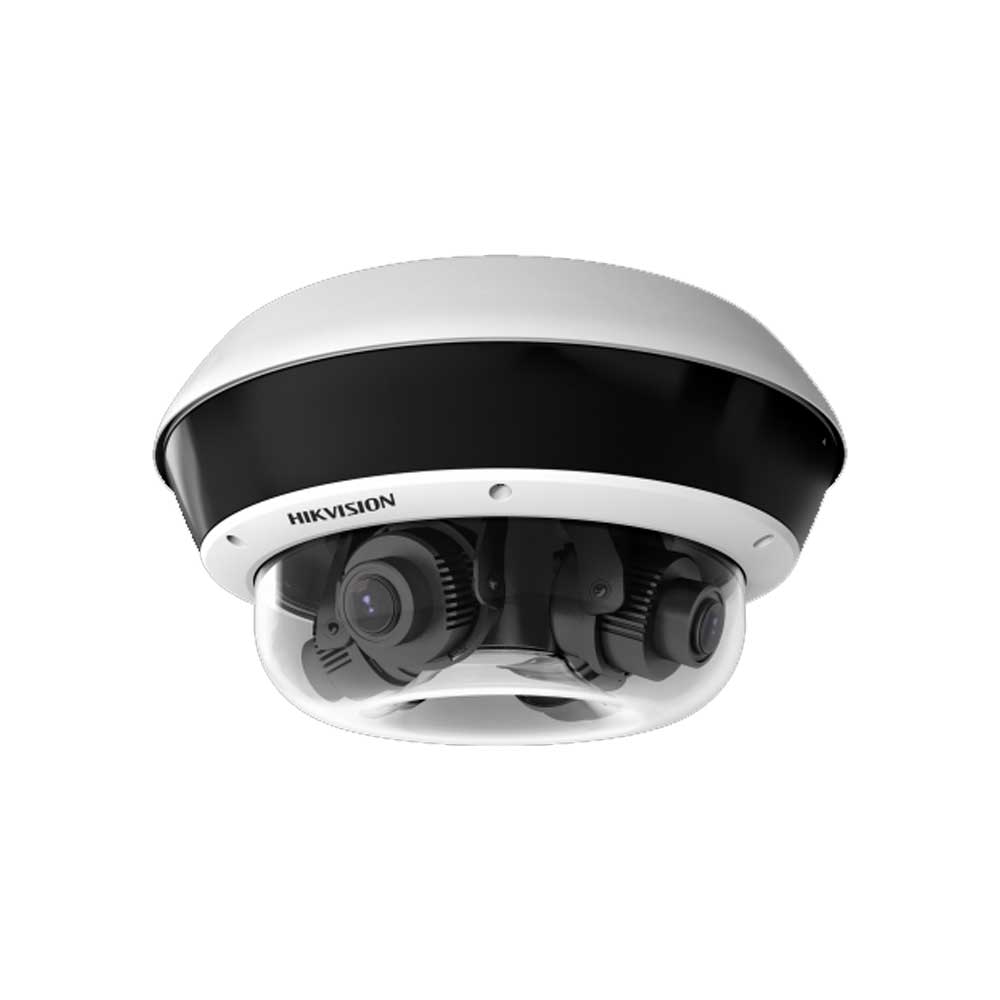

DS-2CD6D24FWD-(I)Z(H)(S)(/NFC)

EXIR Flexible PanoVu Network Camera

1/2.7” Progressive Scan CMOS
1920 × 1080 @ 30fps
FOV: horizontal 30° to 96.3°, vertical 17° to 54°, diagonal 34° to 121°
H.265, H.264, H.265+, H.264+
Fiber optical transmission, optional
10 m to 30 m IR range
IP67, IK10
4 flexible lens
6 behavior analyses, 4 exception detection, and face detection
Camera
Image Sensor: 1/2.7” Progressive Scan CMOS
Signal System: PAL/NTSC
Min. Illumination: Color: 0.006 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.6, AGC ON)
B/W: 0.002 Lux @ (F1.2, AGC ON); 0.003 Lux @ (F1.6, AGC ON)
0 Lux with IR on
Shutter time: 1 s - 1/100,000 s
Lens: 2.8mm to 12mm
Lens Mount: φ14
Adjustment Range: Four flexible lens in one track, slide range: -180° to 180°, tilt: 0° to 135°, rotate: 0° to 355°
Day& Night: IR cut filter with auto switch
Wide Dynamic Range: 120 dB
Digital noise reduction: 3D DNR
Compression Standard
Video Compression: H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile: Baseline Profile / Main Profile / High Profile
Video bit rate: 32Kbps~16Mbps
Audio Compression: G.711/G.722.1/G.726/MP2L2
Audio bit rate: 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2) / 16-64Kbps(AAC)
Dual Stream: Yes
Frame Rate: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream: 50Hz: 25fps (704 × 576, 640 × 480)
60Hz: 30fps (704 × 480, 640 × 480)
Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Image Enhancement: BLC/ 3D DNR/ROI/Defog
Image Settings: Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC: Support
Smart Defog: Support
3D DNR: Support
Picture Overlay: LOGO picture can be overlaid on video with 128x128 24bit bmp format
Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In (-S)
Network
Network Storage: microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger: Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour
General Function: User Authentication, Watermark, IP address filtering
System Compatibility: ONVIF (Profile S, Profile G), ISAPI
Interface
Communication Interface: 1 RJ45 10M/100M/1000M Ethernet port
1 RS-485 interface (-S)
1 1000M FC fiber optical interface (-/NFC)
Audio: With –S model: 1 input (line in), 1 output
Alarm: 2 input, 2 output (up to 24 VD, 1A or 110 VAC, 500mA )(-S model)
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes
Audio
Environment Noise Filtering: Support(-S)
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
General
Operating Conditions: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Consumption: 12 VDC ± 20%: max. 28 W/2.3 A
24 VAC ± 20%, max. 50 to 60 Hz/2.5 A (for customization)
-IZ, -IZHS/NFC: Hi-PoE: 42.5 VDC to 57 VDC, max. 34W/0.9 A to 0.6 A
-Z: PoE (802.3at): 42.5 VDC to 57 VDC, max. 17W
Impact Protection: IK10
Weather Proof: IP67
IR Range: Approx. 10 to 30 meters
Dimensions: Camera: Ø290 mm × 145.5 mm (Ø11.42" × 5.73")
Package: 453 mm × 393 mm × 385 mm (17.8" × 15.47" × 15.16")
Weight: Camera: Approx. 4.7 kg (10.3 lb.)
With package: Approx. 7.7 kg (16.8 lb.)
