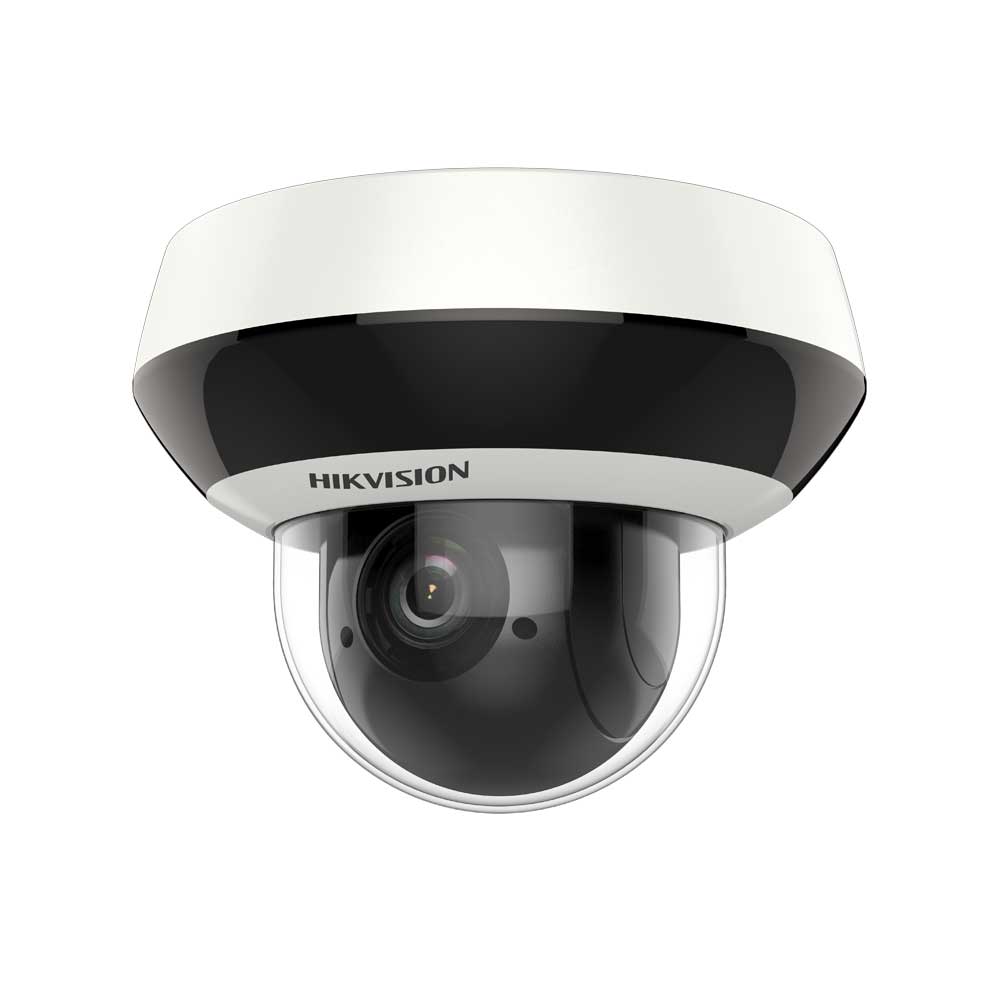

DS-2PT3326IZ-DE3

PanoVu series 360°panoramic + PTZ camera

PanoVu Mini Series IR Network PTZ Camera
Panoramic Camera
1/2.8" progressive scan CMOS
3-ch1920 × 1080@30fps resolution
Min. illumination:
Color: 0.05 Lux @(F2.0, AGC ON)
B/W: 0.01 Lux @(F2.0, AGC ON)
0 Lux with IR
Support H.265 video compression
Horizontal FOV: 128.5° × 3
PTZ Camera
1/2.8" progressive scan CMOS
Up to 1920 × 1080@30fps resolution
Min. illumination:
Color: 0.05 Lux @(F2.0, AGC ON)
B/W: 0.01 Lux @(F2.0, AGC ON)
0 Lux with IR
Support H.265 video compression
4× optical zoom, 8× digital zoom

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Panoramic Camera
Image Sensor:		1/2.8" progressive scan CMOS
Max. Image Resolution:		1920 × 1080
Min. Illumination:		Color: 0.05 Lux @(F2.0, AGC ON) B/W: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR
Lens:		f2mm/F2.0
Angle of View:		Horizontal field of view: 128.5° × 3 Vertical field of view: 75.7° Diagonal field of view: 144°
Main Stream:		50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Sub Stream:		50 Hz: 20 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 20 fps (704 × 480, 640 × 480, 352 × 240)
Image Compression:		H.265/H.264
White Balance:		Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
Shutter Time:		50 Hz: 1/1 s to 1/30,000 s 60 Hz: 1/1 s to 1/30,000 s
Day& Night:		ICR

Tracking PTZ Camera
Image Sensor:		1/2.8" progressive scan CMOS
Max. Image Resolution:		1920 × 1080
Minimum Illumination:		Color: 0.05 Lux @(F2.0, AGC ON) B/W: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR
Angle of View:		Horizontal field of view: 120° to 56.6° (wide - tele) Vertical field of view: 61.8° to 31.7° (wide - tele) Diagonal field of view: 149° to 65° (wide - tele)
Zoom Speed:		Approx.5.4 s (optical, wide - tele)
Focal Length:		2.8 mm to 12 mm, 4× optical zoom
White Balance:		Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:		Support
Shutter Time:		50 Hz: 1/1 s to 1/30,000 s 60 Hz: 1/1 s to 1/30,000 s
Day & Night:		IR Cut Filter
Optical Defog:		Support
ROI encoding:		Main stream and sub-stream respectively supports eight fixed areas.
Main Stream:		50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream:		50Hz:25fps (704×576, 352×288, 176×144) 60Hz:30fps (704×480, 352×240, 176×120)
Image Compression:		H.265/H.264
WDR:		Digital WDR
Privacy Masking:		8 programmable privacy masks

Pan and Tilt
Pan Range:		0° to 350°
Pan Speed:		0.1°/s to 30°/s (configurable), preset speed: 30°/s
Tilt Range:		0° to 90°
Tilt Speed:		0.1°/s to 30°/s (configurable), preset speed: 30°/s
Number of Preset:		300
Scheduled Task:		Preset/Dome Reboot/Dome Adjust
Power-off memory:		Support

System Function
IR:		Up to 10 m IR distance
PTZ Linkage:		Support
Smart Detection:		Motion Detection, Video Tampering Detection, Exception

Input & Output
Audio Input:		1-ch audio input
Audio Output:		1-ch audio output

Network
Audio compression:		G.711ulaw/G.711alaw/G.722/G.726/MP2L2/PCM
Protocol:		IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
Application programming:		Open-ended API, support Onvif, ISAPI, CGI

System Integration
Menu:		English
User/Host Level:		Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures:		User authentication (ID and PW); Host authentication (MAC address); IP address filtering
Web Browser:		IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Simultaneous Live View:		Up to 8 × 2 channels
Ethernet:		1 RJ45 10 M/100 M Ethernet
Onboard Storage:		Built-in Micro SD/SDHC /SDXC card slot, up to 128GB, manual/alarm recording

General
Power supply:		12 VDC & PoE+ (802.3 at, class 4)
Consumption (without hard disk):		Max.24 W (Max. 6 W for IR)
Working temperature:		-10°C to 50°C (14°F to 122°F)
Working humidity:		Humidity 90% or less
Material:		PC + ABS & Aluminum alloy
Protection Level:		TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions (W×D×H):		Φ 183 mm × 133.2 mm (Φ 7.20" × 5.24")
Weight:		Approx. 0.9 kg (1.98 lb)
