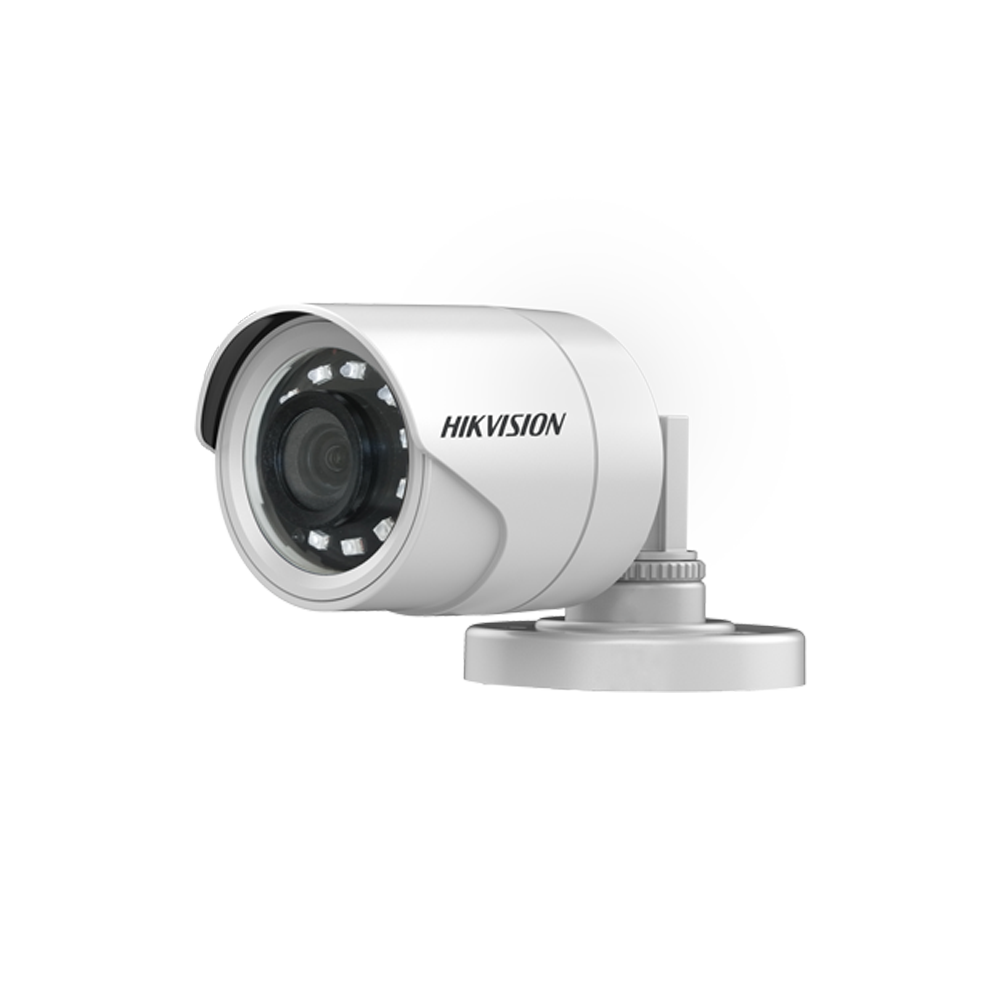

DS-2CE16B2-IPF

Camera

Image Sensor

2 MP CMOS image sensor

Signal System

PAL/NTSC

Frame Rate

PAL: 1080p@25fps

NTSC: 1080p@30fps

Resolution

1920 (H) × 1080 (V)

Min. illumination

0.02 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Lens

2.8 mm, 3.6 mm fixed lens

Horizontal Field of View

103° (2.8 mm), 82.2° (3.6 mm)

Lens Mount

M12

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°

Synchronization

Internal synchronization

WDR (Wide Dynamic Range)

DWDR

Menu

Image Mode

STD/HIGH-SAT

AGC

Support

Day/Night Mode

Smart/color/BW(Black and White)

Backlight Compensation

Support

DWDR

Support

Language

English

Functions

Brightness, Sharpness, DNR, Mirror

Interface

Video Output

1 HD analog output

Switch Button

TVI/AHD/CVI/CVBS

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)

Power Supply

12 VDC±15%

Power Consumption

Max. 4 W

Ingress Protection

IP66

Material

Plastic

IR Range

Up to 20 m

Dimensions

Ø 60.5 mm × 146.1 mm (Ø 2.38" × 5.75")

Weight

Approx. 400 g (0.88 lb.)
