DS-2CE11H0T-PIRLO

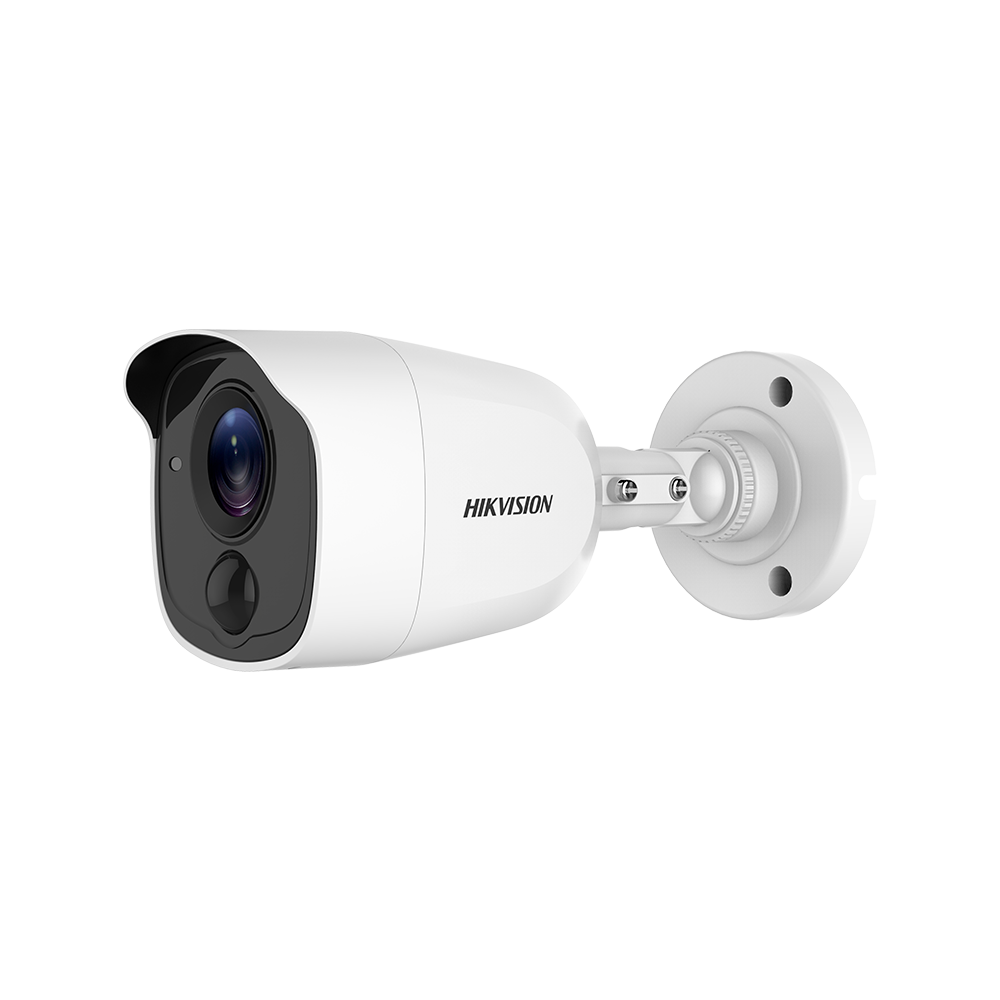

5 MP PIR Bullet Camera
5 MP high performance CMOS
2560 × 1944 resolution
2.8 mm, 3.6 mm fixed focal lens
PIR detection,strobe light alarm, alarm out
Smart IR, up to 20 m IR distance
IP67
Up the coax (HIKVISION-C)
2560 × 1944 resolution
2.8 mm, 3.6 mm fixed focal lens
PIR detection,strobe light alarm, alarm out
Smart IR, up to 20 m IR distance
IP67
Up the coax (HIKVISION-C)
Camera | ||
---|---|---|
Angle Adjustment: | Pan: 0°to 360°, Tilt: 0°to 180°, Rotate: 0°to 360° | |
Image Sensor: | 5MP CMOS Image Sensor | |
Signal System: | PAL/NTSC | |
Min. Illumination: | 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR | |
Shutter Time: | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
|
Lens: | 2.8 mm, 3.6 mm fixed focal lens | |
Lens Mount: | M12 | |
Day& Night: | IR cut filter | |
Video Frame Rate: | PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps; NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps | |
Synchronization: | Internal Synchronization |
Lens | ||
---|---|---|
Horizontal Field of View: | 85.5° (2.8 mm), 80.1° (3.6 mm) |
Menu | ||
---|---|---|
White Light: | Alarm/Off | |
D/N Mode: | Auto/Color/BW (Black and White) | |
Auto White Balance: | Auto / Manual | |
AGC: | Yes | |
Language: | English | |
Function: | Brightness, Sharpness, Mirror, Smart IR |
Interface | ||
---|---|---|
Video Out: | 1 HD analog output |
General | ||
---|---|---|
IR Range: | Up to 20 m | |
PIR Range: | Angle: 110°, Range:11 m | |
Material: | Metal | |
Ingress Protection: | IP67 | |
Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
Power Supply: | 12 VDC±25% | |
Communication : | Up the coax, Protocol: HIKVISION-C (TVI output) | |
Dimension: | 68 mm × 70 mm × 179.8 mm ( 2.68" × 2.76" × 7.08" ) | |
Weight: | Approx. 358 g (0.79 lb.) |
