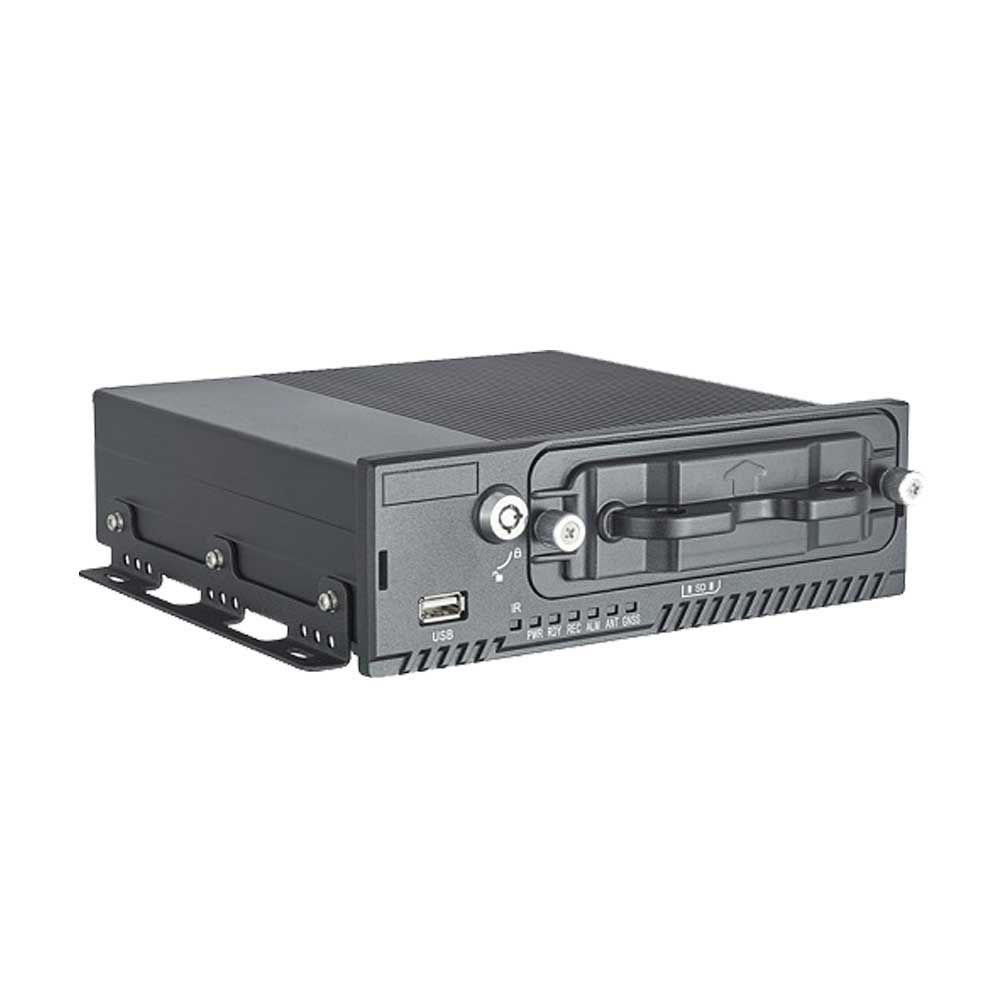

DS-MP5504
Mobile DVR
Main Features
User-friendly GUI providing easy and flexible operations.
Pluggable 3G/4G module and Wi-Fi module providing flexible data transmission solutions.
Built-in GPS (Global Positioning System) module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
Hikvision private protocol (4000 protocol) and ONVIF supported.
Accepts access of 4 HD TVI cameras with up to 1080p resolution for each channel.
Accepts access of 1 IP camera with up to 1080p resolution.
Pluggable dummy HDD for HDD with up to 2 TB capacity.
Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
Specialized aviation connectors ensuring signal stability.
Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
Battery protection avoids vehicle from running out of battery.
Wide-range power input (+9 VDC to +32 VDC).
Power-off protection prevents key data loss.
Aluminum die-cast chassis with no fan design well adaptable to working environment.
Software-based firewall supported.
Connectable to PTZ camera and PTZ control is supported.
Support accessing via WEB browser.
Available Models
DS-MP5504
DS-MP5504/GW (Supports 3G dialing)
DS-MP5504/GW/WI58 (Supports 3G dialing and 5.8 G Wi-Fi)
DS-MP5504/GLF (Supports 4G dialing)
DS-MP5504/GLF/WI58 (Supports 4G dialing and 5.8 G Wi-Fi)
User-friendly GUI providing easy and flexible operations.
Pluggable 3G/4G module and Wi-Fi module providing flexible data transmission solutions.
Built-in GPS (Global Positioning System) module precisely positioning the vehicle via the satellite and recording the location information in the video stream.
Hikvision private protocol (4000 protocol) and ONVIF supported.
Accepts access of 4 HD TVI cameras with up to 1080p resolution for each channel.
Accepts access of 1 IP camera with up to 1080p resolution.
Pluggable dummy HDD for HDD with up to 2 TB capacity.
Information collection interfaces collecting driving information such as left/right turn, braking, reversing, etc.
Specialized aviation connectors ensuring signal stability.
Shutdown delay (0 h to 6 h) and 24-hour scheduled startup/shutdown.
Battery protection avoids vehicle from running out of battery.
Wide-range power input (+9 VDC to +32 VDC).
Power-off protection prevents key data loss.
Aluminum die-cast chassis with no fan design well adaptable to working environment.
Software-based firewall supported.
Connectable to PTZ camera and PTZ control is supported.
Support accessing via WEB browser.
Available Models
DS-MP5504
DS-MP5504/GW (Supports 3G dialing)
DS-MP5504/GW/WI58 (Supports 3G dialing and 5.8 G Wi-Fi)
DS-MP5504/GLF (Supports 4G dialing)
DS-MP5504/GLF/WI58 (Supports 4G dialing and 5.8 G Wi-Fi)
Video/Audio input | ||
---|---|---|
Analog camera: | 4 analog cameras with up to 1080p resolution | |
IP camera: | 1 IP camera with up to 1080p resolution (or extendable via PoE switch) |
Video/Audio output | ||
---|---|---|
Video Output: | 2-ch: 1-ch main output (integrated in EXT.DEV interface). 1-ch VGA video output | |
Audio output: | 1-ch |
Encoding/Decoding parameters | ||
---|---|---|
Video compression: | H.264 and H.264+ | |
Encoding resolution: | Main stream: 1080p/720p/WD1/4CIF. Sub-Stream: 4CIF/2CIF/CIF | |
Frame rate: | ● PAL: 1 to 12fps@1080P; NTSC: 1 to 12fps@1080P; ● PAL: 1 to 25fps@720P; NTSC: 1 to 30fps@720P |
|
Audio compression: | G.711 | |
Audio bitrate: | 16 Kbps | |
Dual Streams: | Supported |
Hard Disk | ||
---|---|---|
Type: | 1 × 2.5 inch hard disk (HDD/SSD) | |
Capacity : | Up to 2 TB for each disk |
Wireless Network | ||
---|---|---|
3G/4G Dialing: | Optional pluggable 3G(WCDMA)and 4G(FDD-LTE) | |
Wi-Fi: | 802.11AC module,5.8GHz and 2.4GHz supported |
Positioning | ||
---|---|---|
Type: | Built-in | |
Positioning Module: | GPS(Global Positioning System) |
External interface | ||
---|---|---|
Sensor-in: | 4 high/low level signal inputs | |
Network interface: | 1 × 10M/100M RJ45 Ethernet interface | |
Serial interface: | 2× RS-232, 1 × RS-422 (integrated in EXT.DEV interface) | |
USB port: | ● Front panel: 1 × USB 2.0 ● Rear panel: 1 × USB 2.0 of 5-pin aviation connector |
|
SD Card: | 1 SD/SDHC/SDXC slot, up to 256 GB |
General | ||
---|---|---|
Operating method: | Mouse, IR remote control, and Web control | |
Power Supply: | 9 to 32 VDC | |
Consumption: | ● Standby: ≤ 0.5 W ● Full load: ≤ 45 W (without peripheral and storage media) Note: Without peripheral and storage media ≤ 20 W |
|
Working temperature: | ● Device that provides dummy HDD with heating function: -30 °C to +60 °C (-22 °F to 140°F) ● Other devices: -10 °C to +60 °C (14 °F to 140°F) |
|
Working humidity: | 10% to 90% | |
Dimensions (W×D×H): | 206 × 219 × 60 mm (8.1 × 8.62 × 2.36 inch) | |
Weight (without HDDs/SSDs): | 1.6 kg (3.5 lb) |
