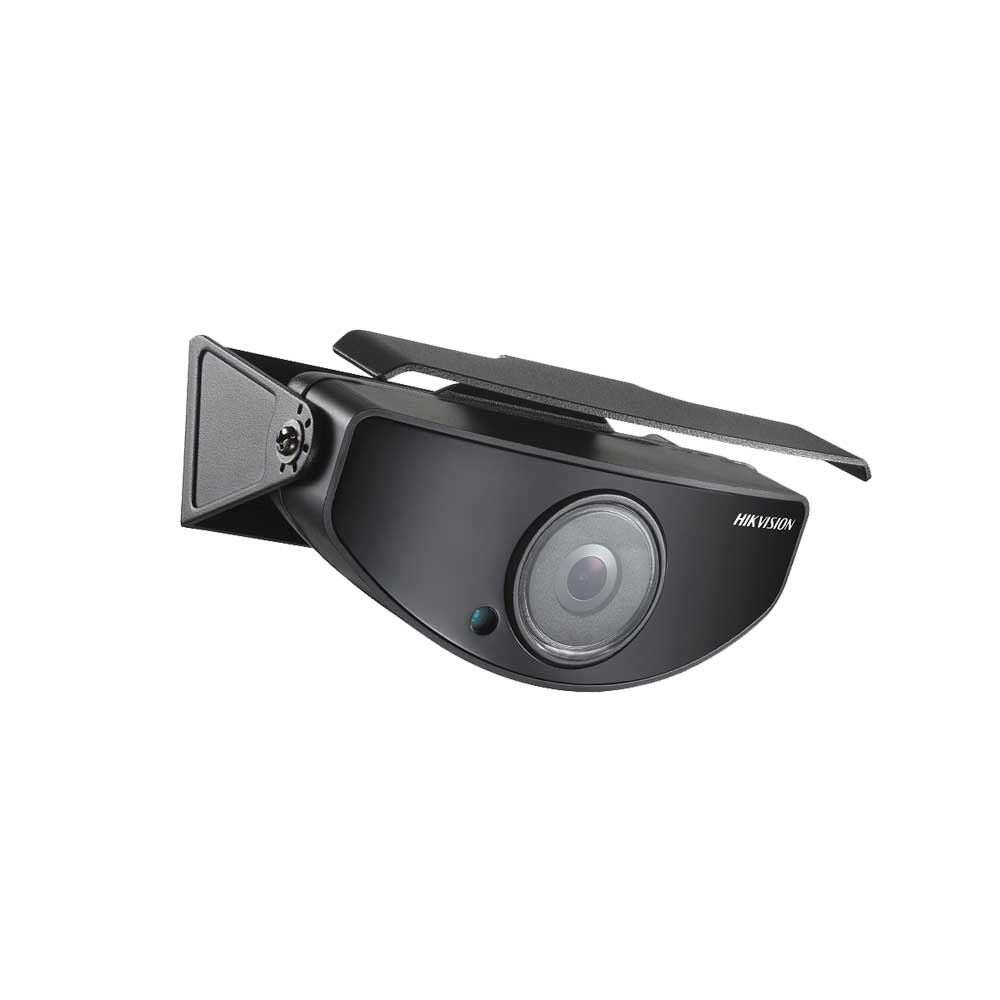

AE-VC151T-IT

 1.0MP Progressive Scan CMOS
 Turbo HD output, up to 720P resolution
 0.1Lux @(F1.2,AGC ON),0 Lux with IR
 Adopt wide-angle lens with wider monitoring coverage
 Support electronic shutter, AGC and auto Day & Night switch
 Up to IP68 protection level
 Anti-vibration design and aviation port for mobile environments

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor:		1MP CMOS Image Sensor
Effective Pixels:		1280(H)*720(V)
Min. Illumination:		0.1Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time:		1/25(1/30) s to 1/50,000 s
Lens:		2.1mm (2.8mm/3.6mm optional)
Lens Mount:		M12
Day& Night:		Electronic
Horizontal Resolution:		950TVL
Video Frame Rate:		720p@25fps/720p@30fps
Synchronization:		Internal Synchronization

Menu
AGC:		Support

Interface
Video Out:		Aviation port

General
Operation Condition:		-40℃~75℃, Humidity 90% or less (non-condensing)
Power Supply:		6VDC to 16VDC
Power Consumption:		3.5W MAX
Weather Proof:		IP68
IR Range:		-IR: approx 20 to 30 meters
Dimension:		113.2mm×54.5mm×82.7mm
Weight:		200g
