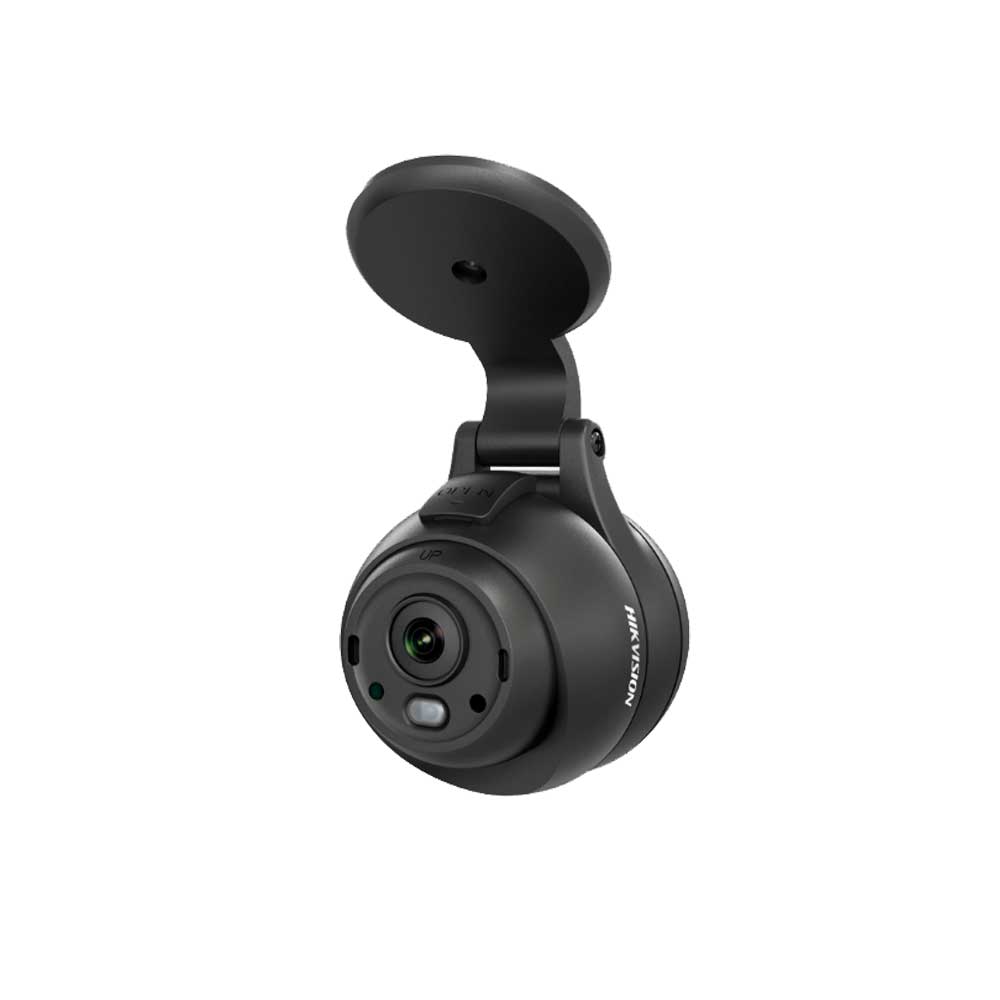

AE-VC161T-ITS

Key Features
 0.1Lux @(F1.2,AGC ON), 0 Lux with IR (IR function is only supported by back sight camera)
 Analog HD output, up to 720P resolution
 Support electronic Day/Night switch
 Adopt bi-lens with wider monitoring coverage
 Support electronic shutter and AGC
 Built-in microphone
 Patented universal regulating mechanism, easy to adjust
 Anti-vibration design and aviation port for mobile environments
 Suitable for mobile environments

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Image Sensor:		1MP CMOS Image Sensor
Signal System:		PAL/NTSC
Effective Pixels:		1296(H)x732(V)
Min. Illumination:		0.1Lux @ (F1.2,AGC ON), 0 Lux with IR
Shutter Time:		1/25(1/30) s to 1/50,000 s
Lens:		Fore Sight: 2.1mm,2.8mm Back Sight: 2.1mm
Lens Mount:		M12
Adjustment Range:		Fore Sight: Bracket Angle Adjustment Range: 0° to 90° Back Sight: Pan: 0°to 360°; Tilt:0°to 60°; Rotation: 0°to 360°
Day& Night:		Electronic
Video Frame Rate:		720p@25fps/720p@30fps
Synchronization:		Internal Synchronization
S/N Ratio:		More than 62 dB

Menu
AGC:		Support

Interface
Audio In:		Built-in Microphone
Audio Out:		2-ch, Aviation Port (Output Impedance: 1KΩ±10%)
Video Out:		2-ch, Aviation Port (1Vpp Composite Output)

General
Operation Condition:		-30°C to 65°C (-22°F to 149°F), Humidity 90% or less (non-condensing)
Power Supply:		6VDC to 16VDC
Power Consumption:		MAX. 4W
Dimension:		59.9mm×85.6mm×80mm (2.36"×3.37″×3.15″)
Weight:		Approx. 400g (0.88lb)
