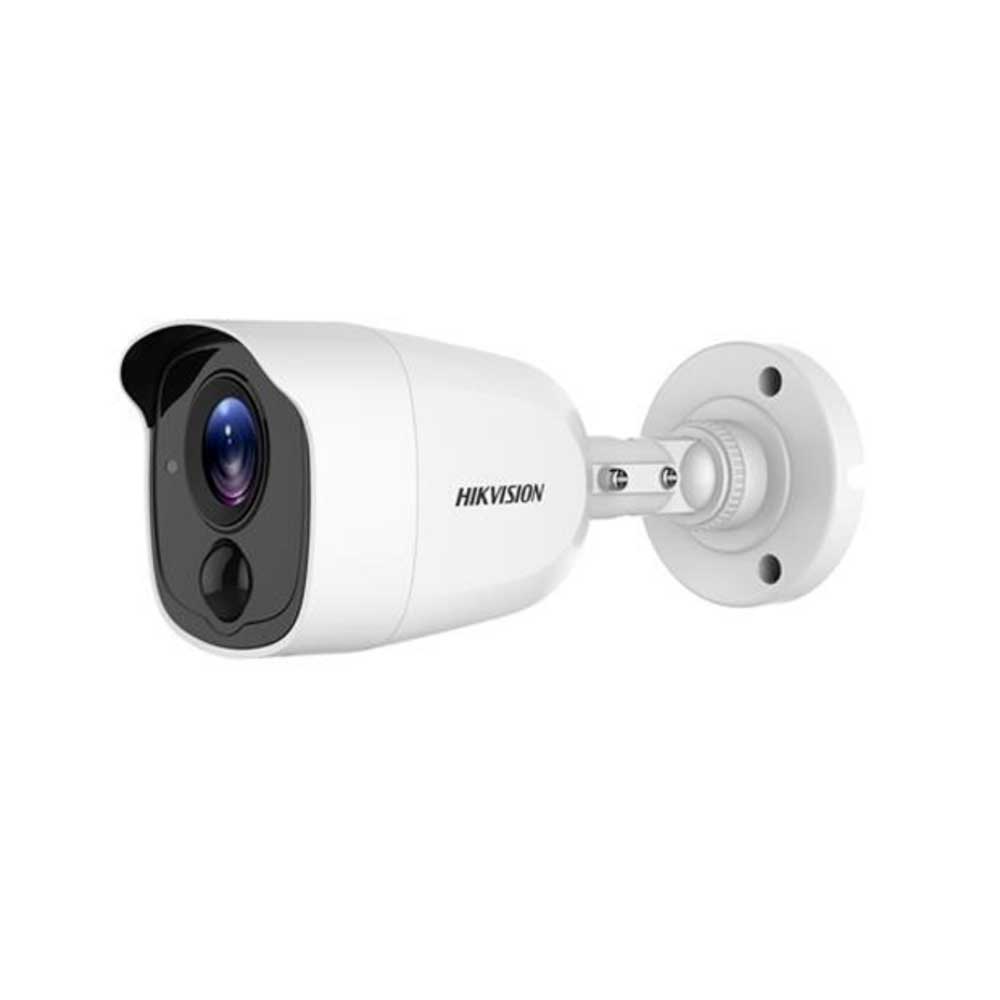

DS-2CE11D8T-PIRL
2 MP Ultra-Low Light PIR Bullet Camera
2 MP high performance CMOS
Ultra-low light
1920 × 1080 resolution
2.8 mm, 3.6 mm fixed focal lens
PIR detection, visual alarm
120 dB true WDR, 3D DNR
EXIR 2.0, smart IR, up to 20 m IR distance
IP67
Up the coax (HIKVISION-C)
Ultra-low light
1920 × 1080 resolution
2.8 mm, 3.6 mm fixed focal lens
PIR detection, visual alarm
120 dB true WDR, 3D DNR
EXIR 2.0, smart IR, up to 20 m IR distance
IP67
Up the coax (HIKVISION-C)
Camera | ||
---|---|---|
Slow Shutter: | Max. 16 times | |
WDR (Wide Dynamic Range): | > 120 dB | |
Angle Adjustment: | Pan: 0°to 360°, Tilt: 0°to 180°, Rotate: 0°to 360° | |
Image Sensor: | 2.0 megapixel progressive scan CMOS | |
Signal System: | PAL/NTSC | |
Min. Illumination: | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
Shutter Time: | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
|
Lens: | 2.8 mm, 3.6 mm fixed focal lens | |
Lens Mount: | M12 | |
Day& Night: | IR cut filter | |
Horizontal Resolution: | 1920 (H) × 1080 (V) | |
Video Frame Rate: | PAL: 1080p@25fps NTSC: 1080p@30fps |
|
Synchronization: | Internal Synchronization |
Lens | ||
---|---|---|
Horizontal Field of View: | 103.5°(2.8 mm), 80.3°(3.6 mm) |
Menu | ||
---|---|---|
3D DNR (Digital Noise Reduction): | Level 1 to 10 | |
Backlight Compensation: | WDR/BLC/OFF | |
White Light: | Alarm/Off | |
D/N Mode: | Auto/Color/BW (Black and White) | |
Auto White Balance: | ATW/MANUAL | |
Private Mask: | ON/OFF, 4 programmable privacy masks | |
AGC: | Yes | |
Language: | English/Chinese | |
Function: | Brightness, Sharpness, Mirror, Smart IR |
Interface | ||
---|---|---|
Video Out: | 1 HD analog output |
General | ||
---|---|---|
Visual Alarm: | Yes | |
IR Range: | Up to 20 m | |
PIR Range: | Angle: 110°, Range:11 m | |
Material: | Metal | |
Ingress Protection: | IP67 | |
Operating Conditions: | -40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
|
Power Supply: | 12 VDC±25% | |
Communication : | Up the coax, Protocol: HIKVISION-C (TVI output) | |
Dimension: | 68 mm × 70 mm × 179.8 mm ( 2.68" × 2.76" × 7.08" ) | |
Weight: | Approx. 345 g (0.76 lb.) |
