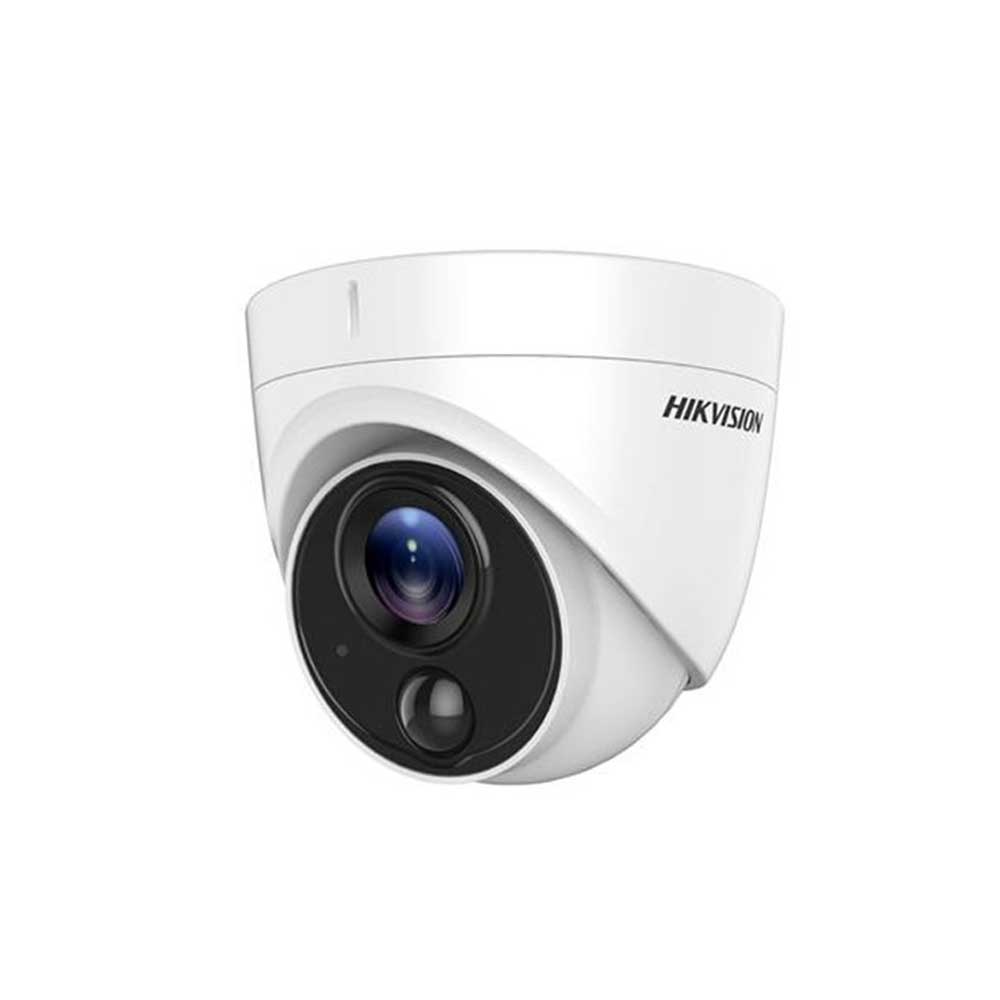

DS-2CE71D8T-PIRL

2 MP Ultra-Low Light PIR Turret Camera

2 MP high performance CMOS
Ultra-low light
1920 × 1080 resolution
3.6 mm fixed focal lens
PIR detection, visual alarm
120 dB true WDR, 3D DNR
EXIR 2.0, smart IR, up to 20 m IR distance
IP67
Up the coax (HIKVISION-C)

THÔNG SỐ KỸ THUẬT
BÌNH LUẬN

Camera
Slow Shutter:		Max. 16 times
WDR (Wide Dynamic Range):		> 120 dB
Angle Adjustment:		Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Image Sensor:		2.0 megapixel progressive scan CMOS
Signal System:		PAL/NTSC
Min. Illumination:		Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time:		PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Lens:		3.6 mm fixed focal lens
Day& Night:		IR cut filter
Horizontal Resolution:		1920 (H) × 1080 (V)
Synchronization:		Internal Synchronization

Lens
Horizontal Field of View:		103.5°(2.8 mm), 82.6°(3.6 mm)

Menu
3D DNR (Digital Noise Reduction):		Level 1 to 10
Backlight Compensation:		WDR/BLC/OFF
White Light:		Alarm/Off
D/N Mode:		Auto/Color/BW (Black and White)
Auto White Balance:		ATW/MANUAL
Private Mask:		ON/OFF, 4 programmable privacy masks
Motion Detection:		4 programmable motion areas
AGC:		Yes
Language:		English/Chinese

Interface
Video Out:		1 HD analog output

General
Visual Alarm:		Yes
PIR Range:		Angle: 110°, Range:11 m
Material:		Enclosure: Plastic Main body: Metal Mounting base: Plastic
Ingress Protection:		IP67
Power Supply:		12 VDC±25%
IR Range:		Up to 20m
Communication :		Up the coax, Protocol: HIKVISION-C (TVI output)
Dimension:		109.8 mm × 89.75 mm (? 4.32" × 3.53" )
Weight:		Approx. 310 g (0.68 lb.
